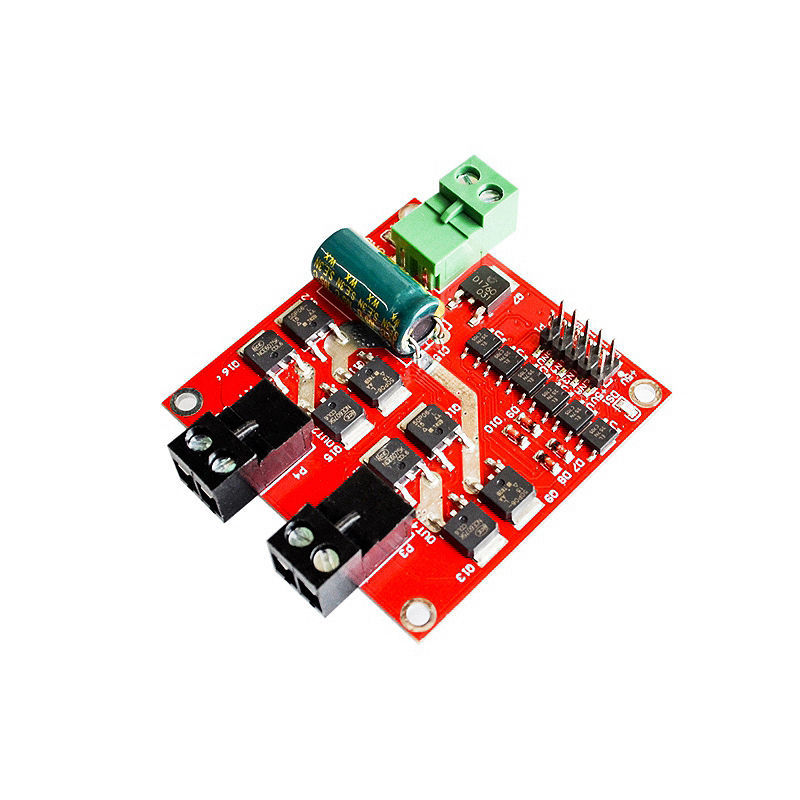

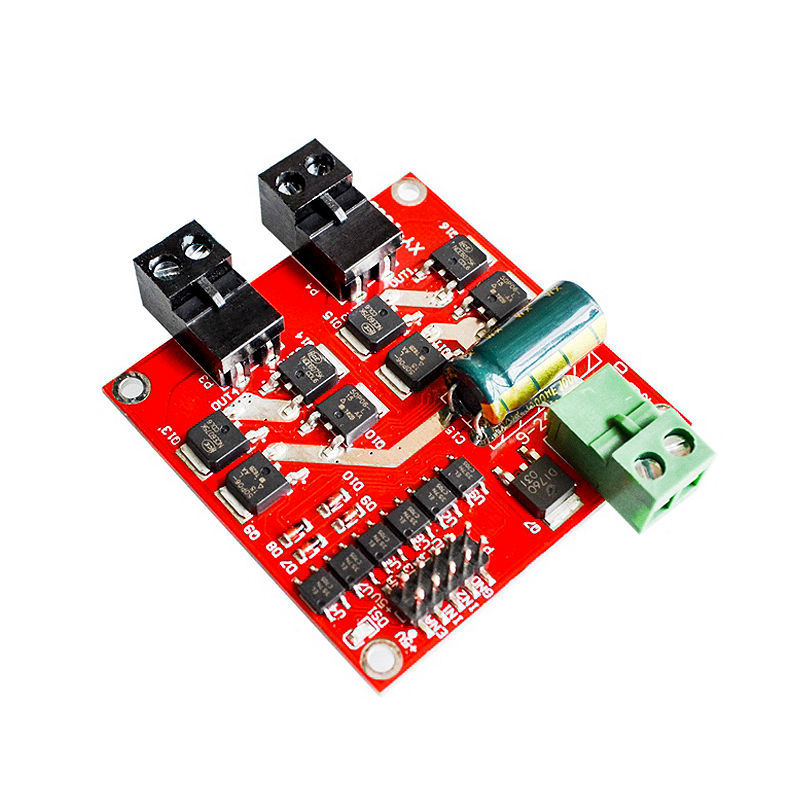

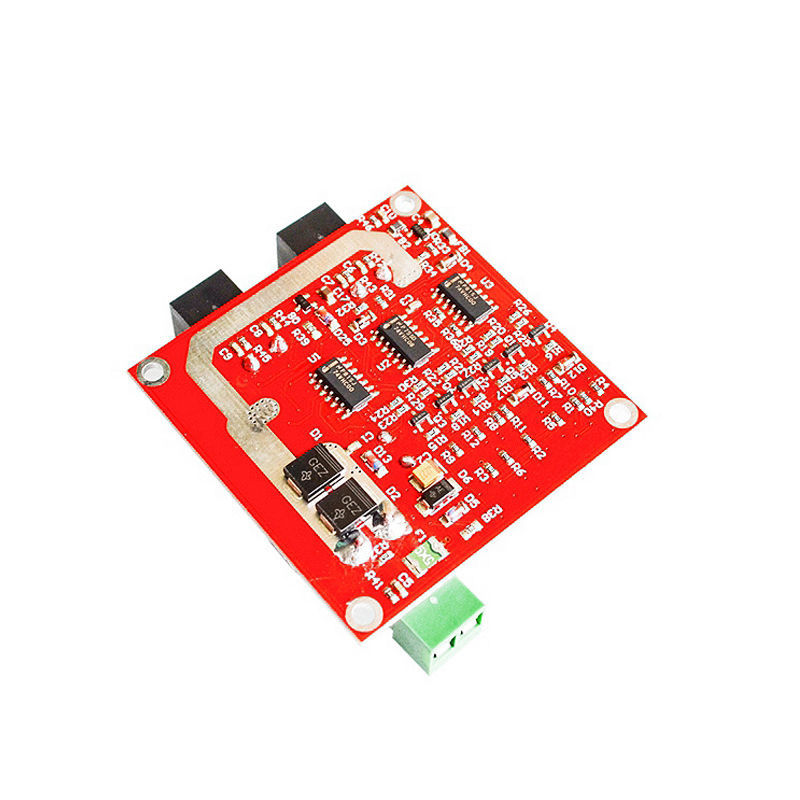

XY160D 160W 7A Dual DC Motor Drive Module

Double H bridge, which can drive two DC motors with single 7A current, high power
Power supply voltage 6.5V-27V
Dual motor interface, each rated output current 7A, peak current 50A, the motor interface must not short-circuit, the proposed series 10A fuse.
ontrol signal voltage 3-6.5V, respectively, is the enable signal and the positive inversion control signal.
Enable signal terminal (ENA) input PWM adjustable speed, PWM frequency range 0-10KHZ, PWM minimum pulse width 10us
Working temperature -25℃ -80℃.
Product size: 55 x 55 x 16mm (length and width).
Installation hole diameter: 3mm
