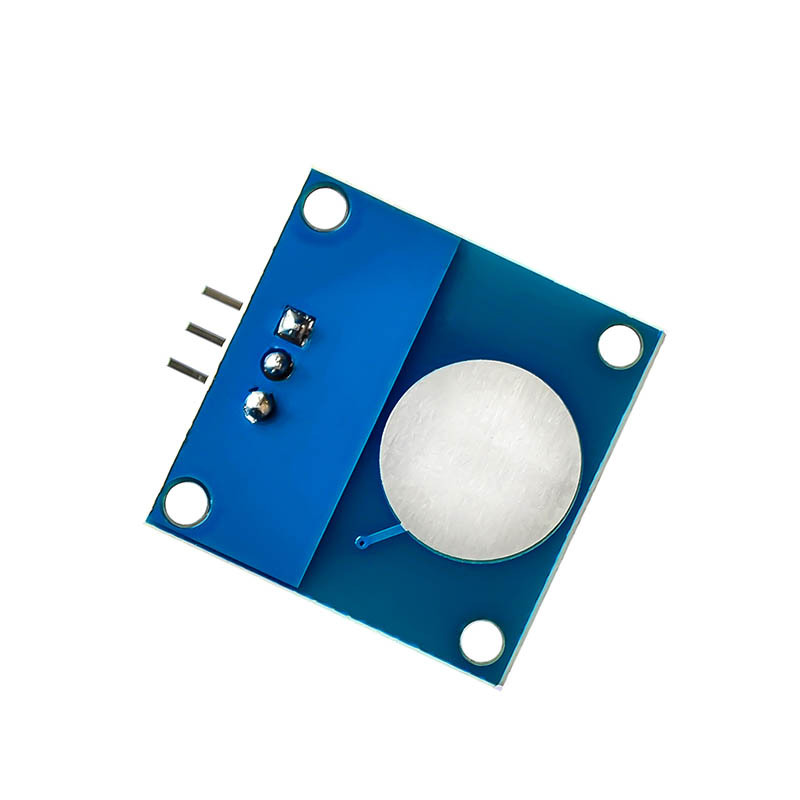

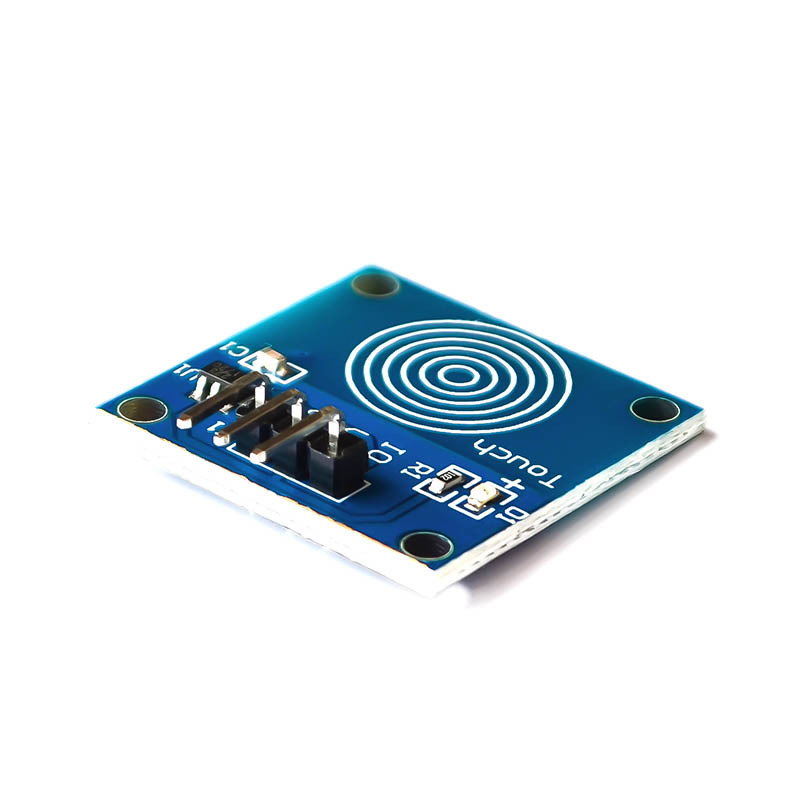

TTP223B Capacitive Touch Sensor

This module is based on a touch-sensing IC (TTP223B) capacitive touch switch module.
In its normal state, the module output is low and has a low power consumption.
When touched the modules output turns high and if not touched for 12 seconds switches back to low-power mode.
Voltage : 3.3V to 5V
Current: 5mA

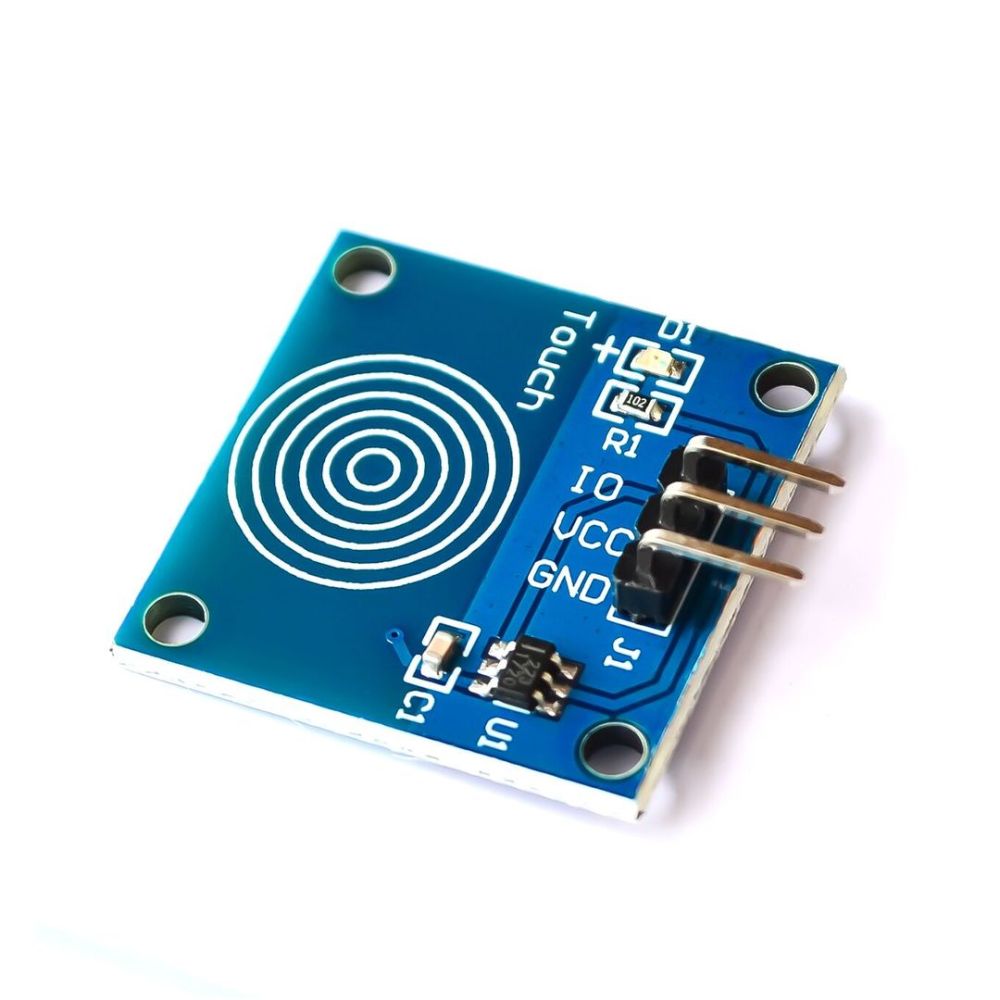

Interface: G (GND), V (VCC), S (signal)
Responce Time : 60-220ms

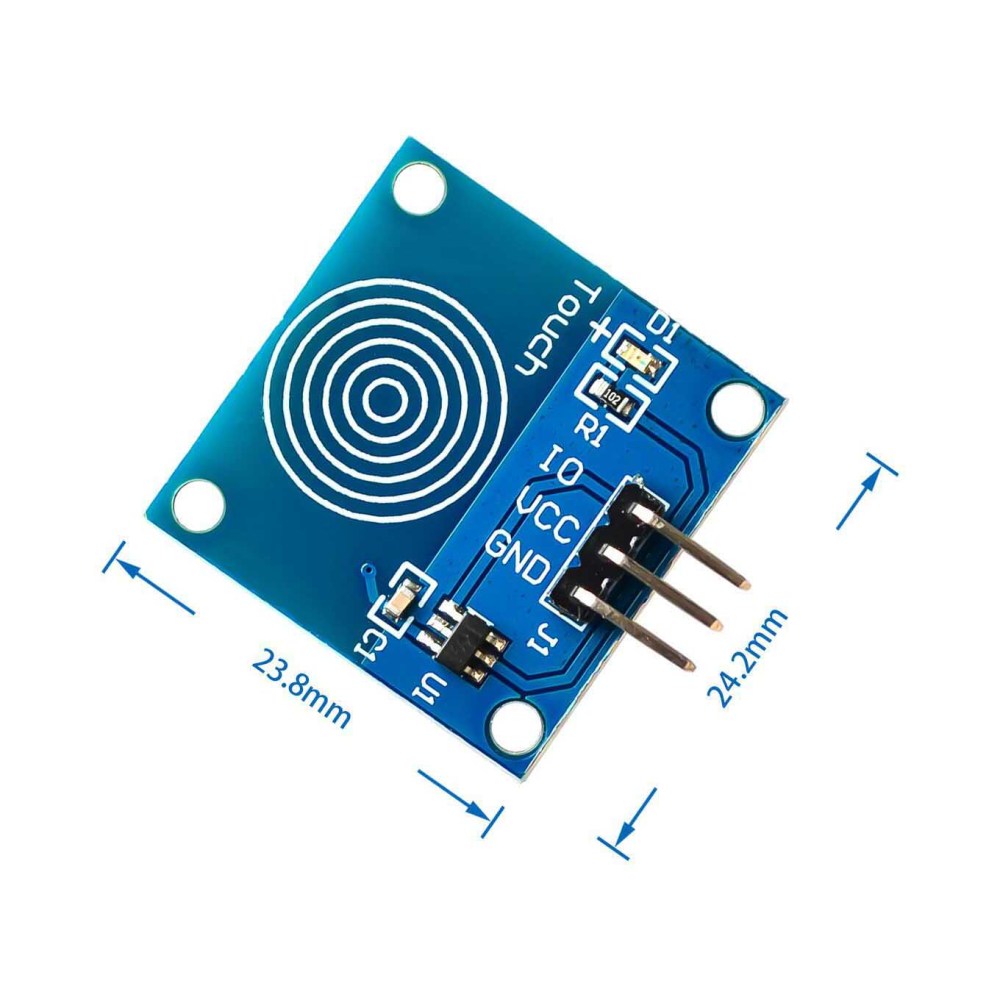

PCB Size : 23mm x 23mm
