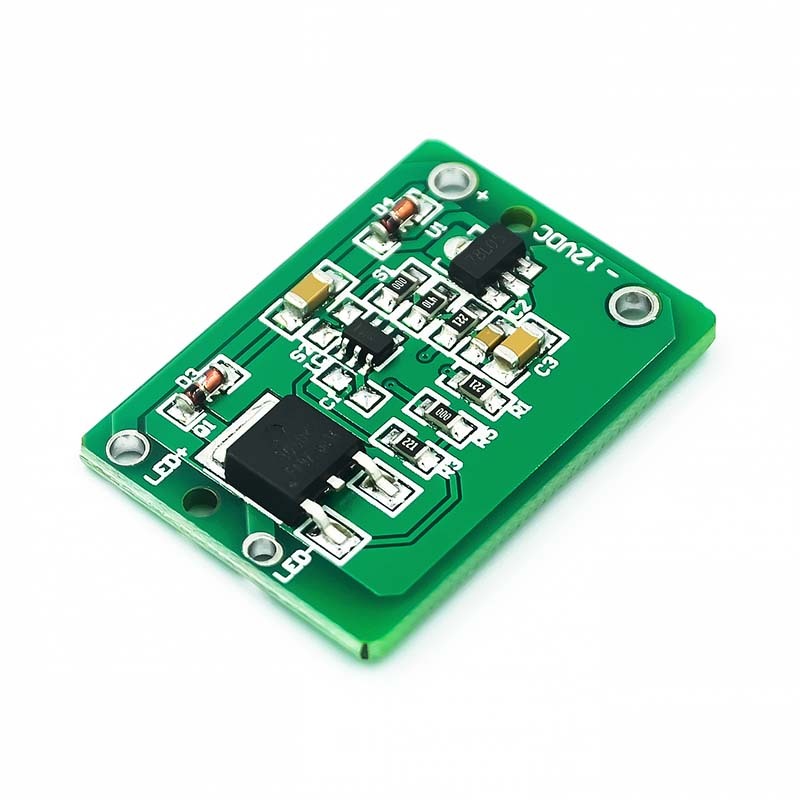

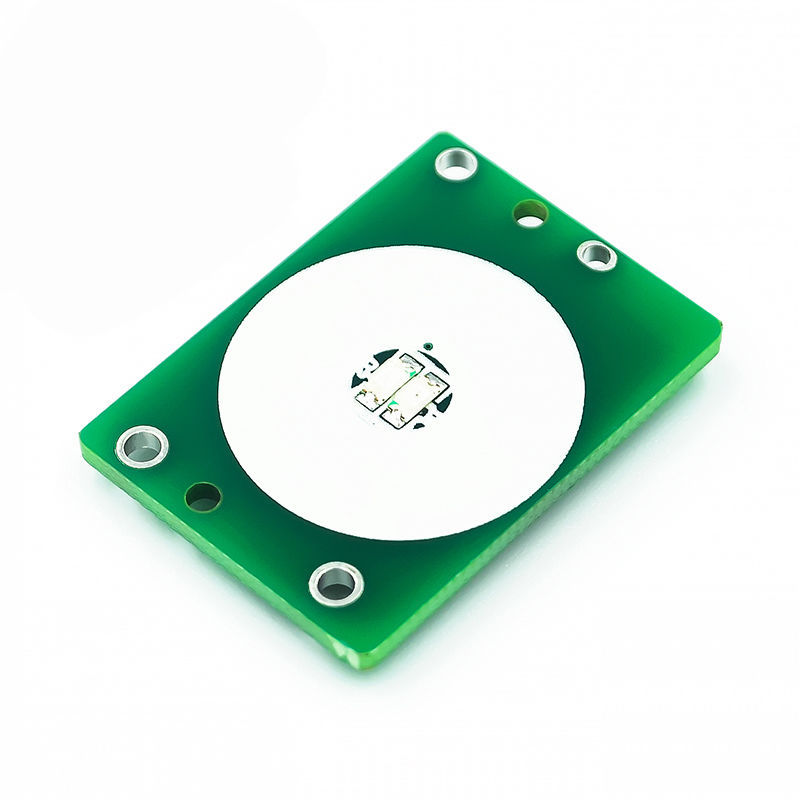

Name: TTP223 12V Capacitive Touch Button Module
Brand: Electronics Supply Store, Arduino, Raspberry Pi, Components DIY I
SKU: 8775282
Price: 0.5 USD
Availability: InStock

SKU: 8775282

$0.50

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

Product detail:

This module is used by most customers to modify cars and motorcycles, LED lights and light strips, mirror touch, and all kinds of devices that need to directly carry loads, etc.
The touch module can be set to jog or latch, the sensitivity is adjustable (no capacitor welding. Zero degree is the highest. Default delivery), and the lead can also be touched.
Indicator light: The blue light has no output when it is powered on, and the red light has an output; the output is equal to the input.
Input/output DC: 6v-20v (Note: Regulated power supply is supported, constant current power supply is temporarily not supported)

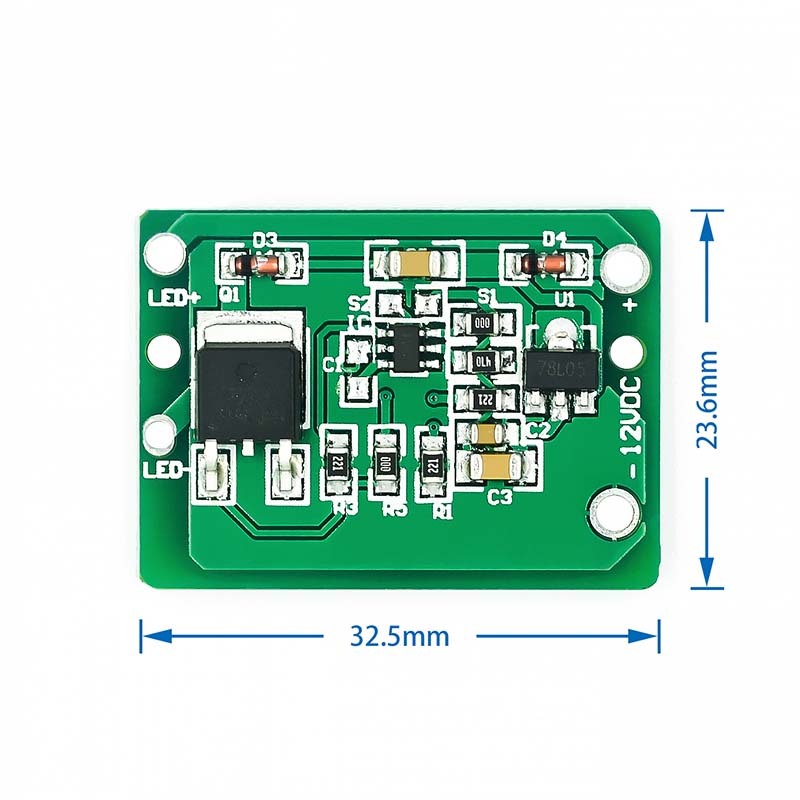

Drive current: 3A Standby consumption: 6MA Circuit board size: 24MM*32MM*1.6MM
At present, the cooperative customers are mostly used to develop touch switches, LED light modification, car modification, escape room games, various large-scale machinery products and equipment.
It can be widely used in lighting control, toys, household appliances, kitchens, bathroom mirrors, and other products.
