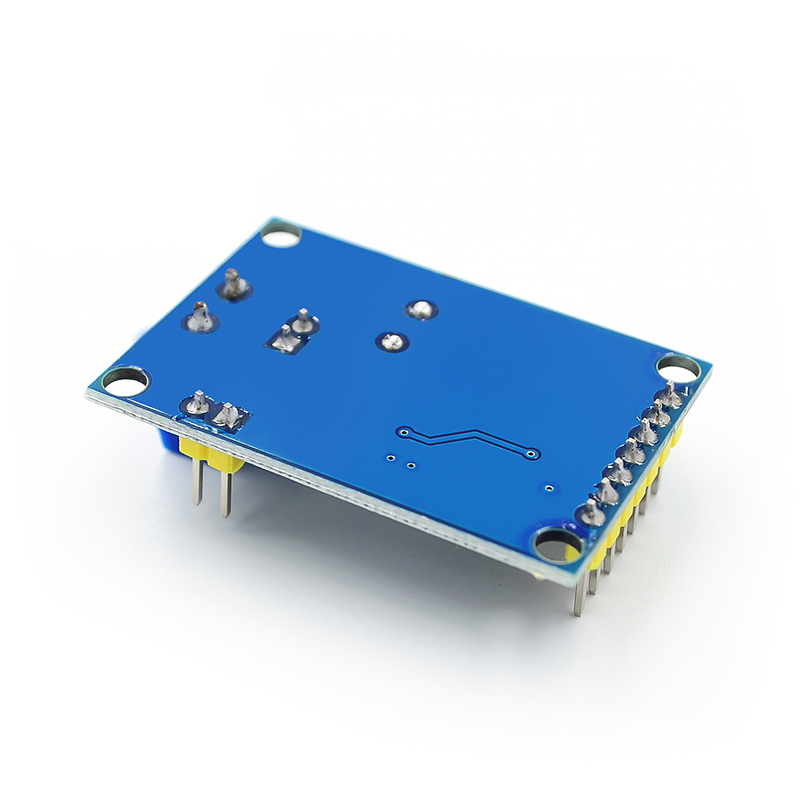

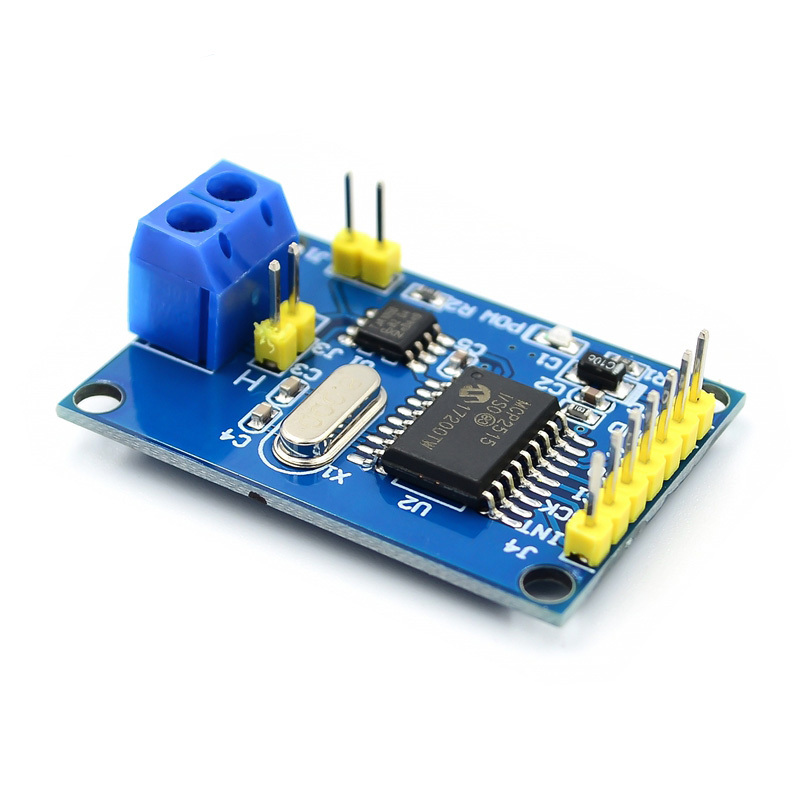

TJA1050 MCP2515 CAN Receiver Module

1. Support CAN V2.0B technical specification, communication rate 1Mb/S
2. 0~8 bytes long data field
3. Standard frame, extended frame and remote frame
4. Module 5V DC power supply, SPI interface protocol control
5. 120 ohm terminating resistor. Impedance matching, guaranteed drive capability, long-
distance data transmission to prevent signal emissions
6. Working current: typical value is 5mA, standby current is 1 microamperes. Except the power indicator.
7. Operating temperature: industrial grade -40℃~ 85℃

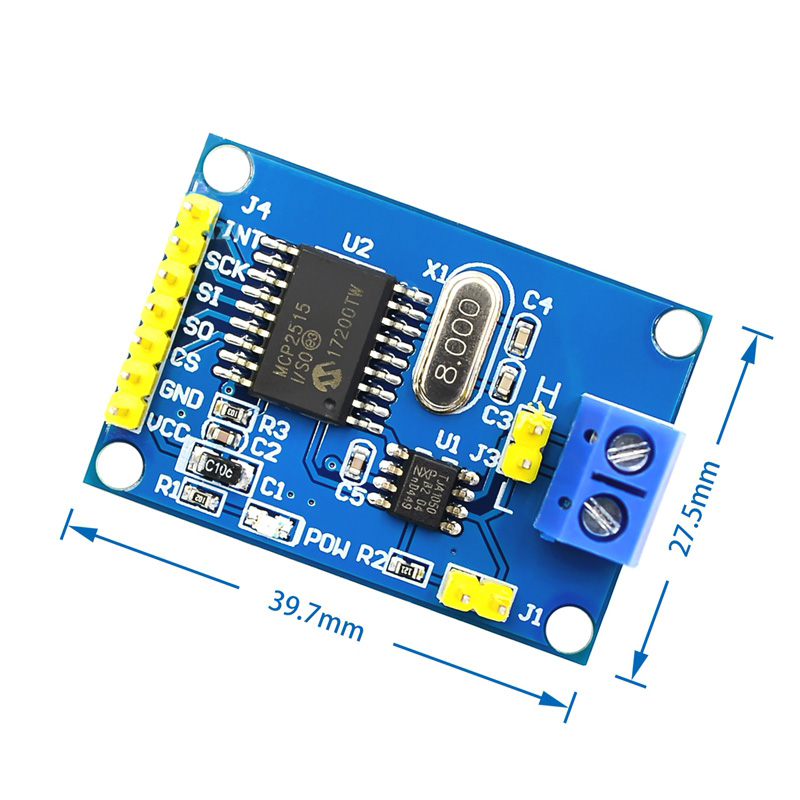

8. Size： 4. 4 x 2.8 cm/1.57*1.1" (approx.)
