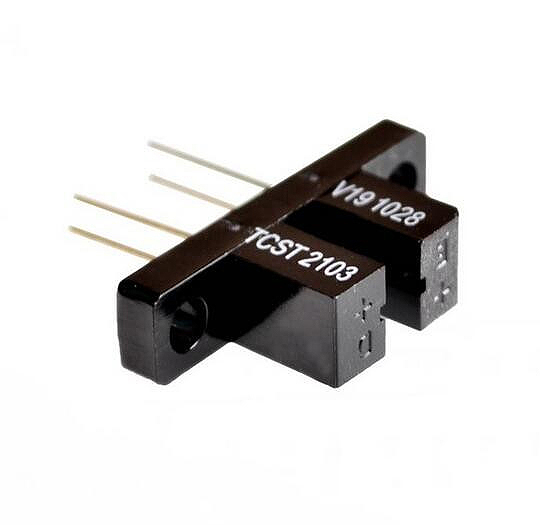

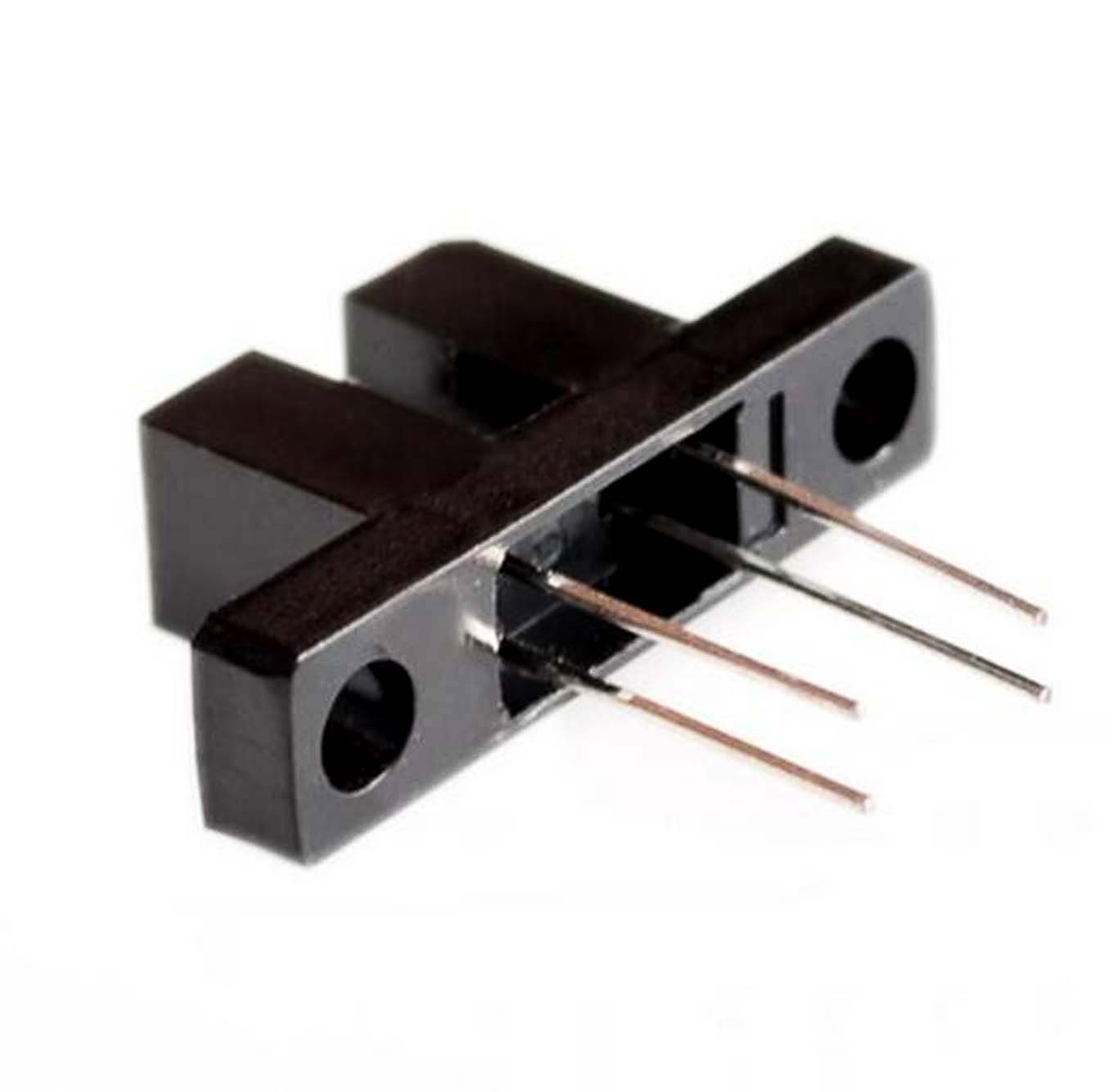

TCST2103 Optical Sensor

1.Category sensor, transmitter
2.Family optical sensors - light interrupter - groove - transistor output
3.Packing pipe fittings
4.Induction distance is 3.1 mm
5.Conductible induction method
6.Phototransistor output configuration
7.DC current is 60 ma (If)
8.Collector current (Ic) 4 ma (maximum)
9.Set emitter breakdown voltage 70 v (maximum)
10.10 mu s response time, eight mu s
11.Installation type hole
12.Encapsulation/shell slot module, 4 fuses double row
13.Type no amplification
14.Working temperature and 55℃to 85℃
