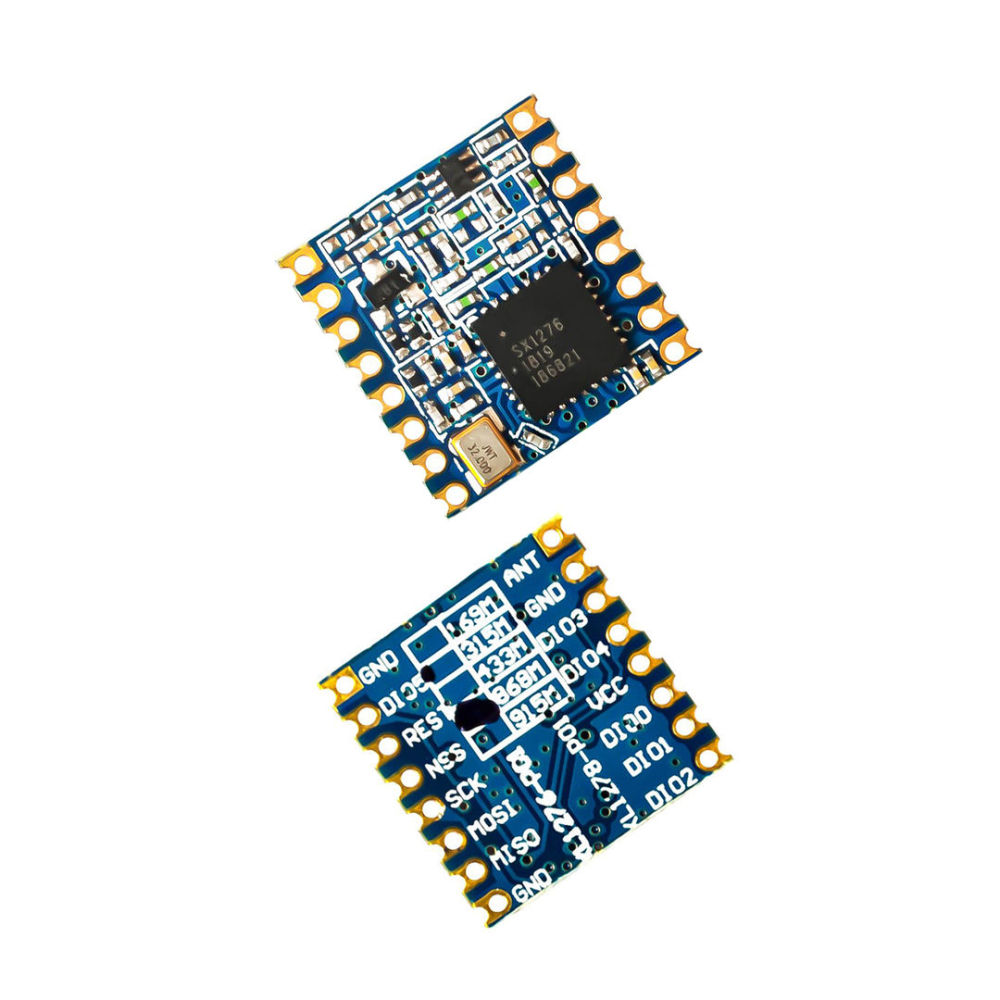

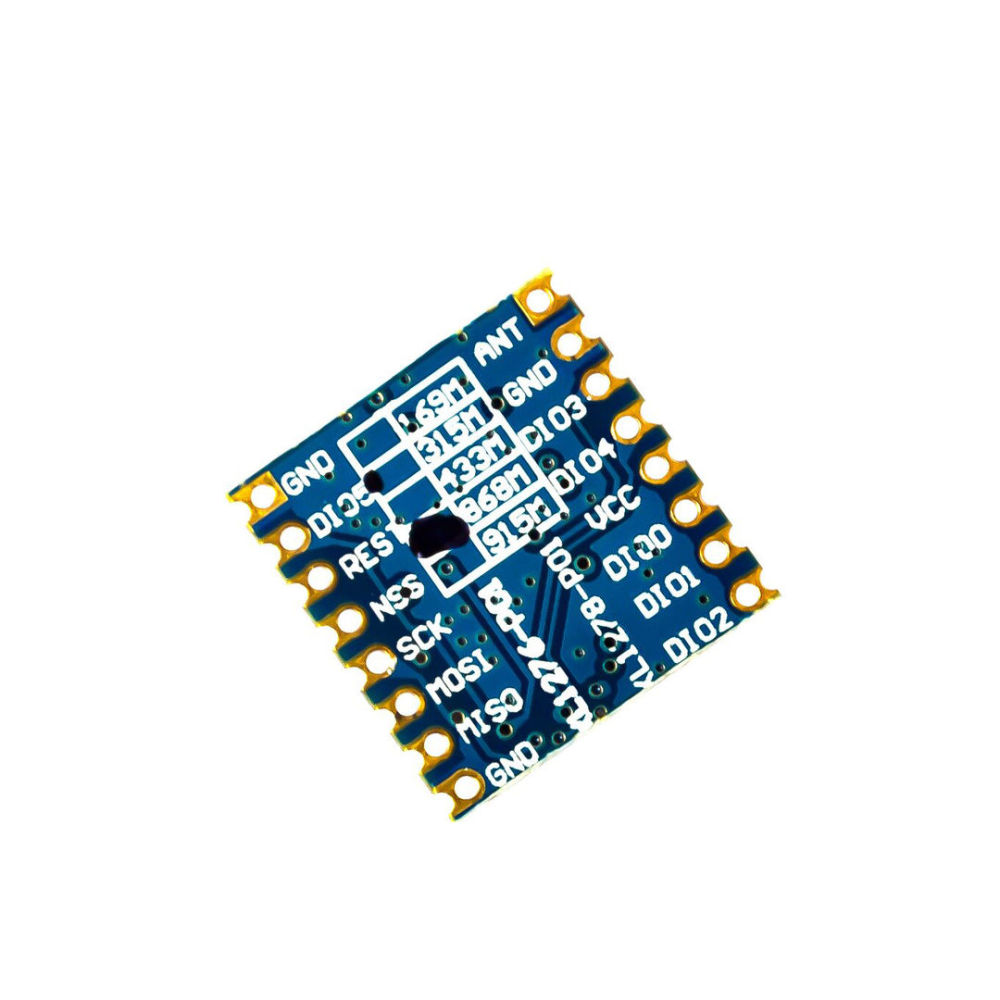

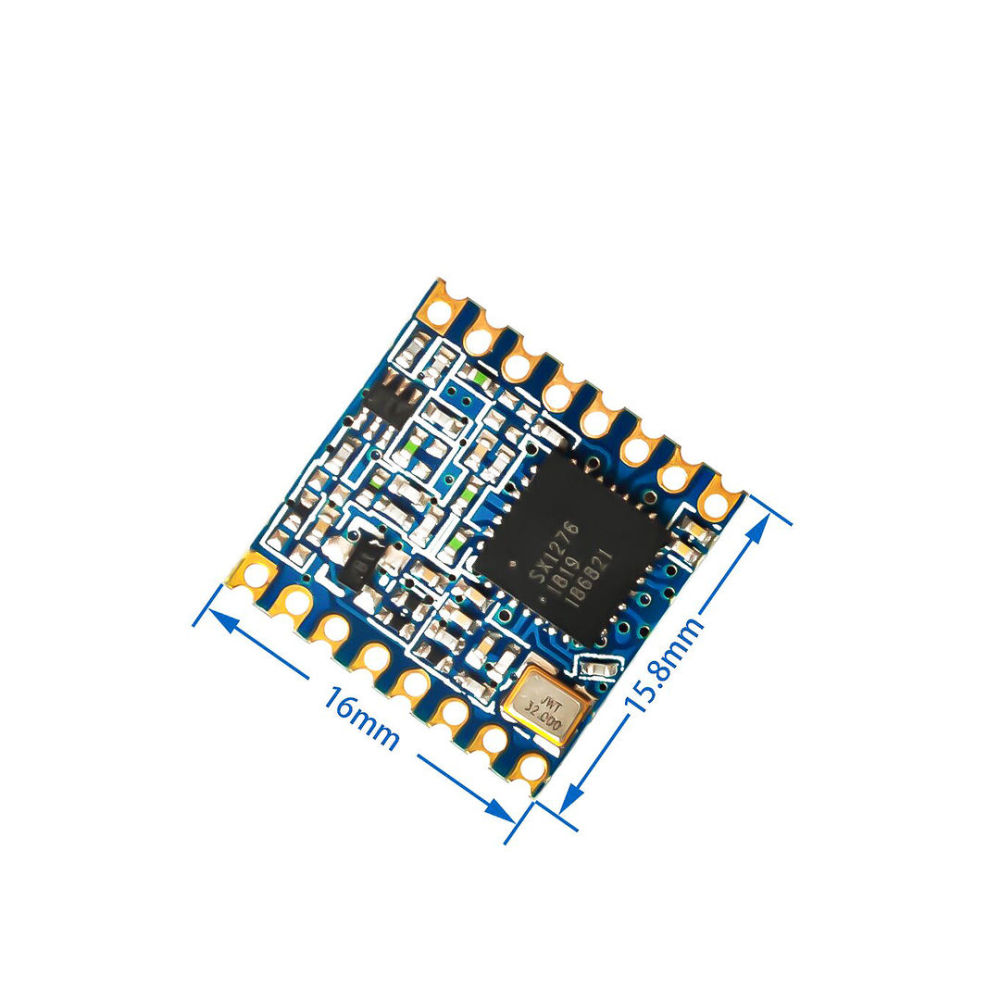

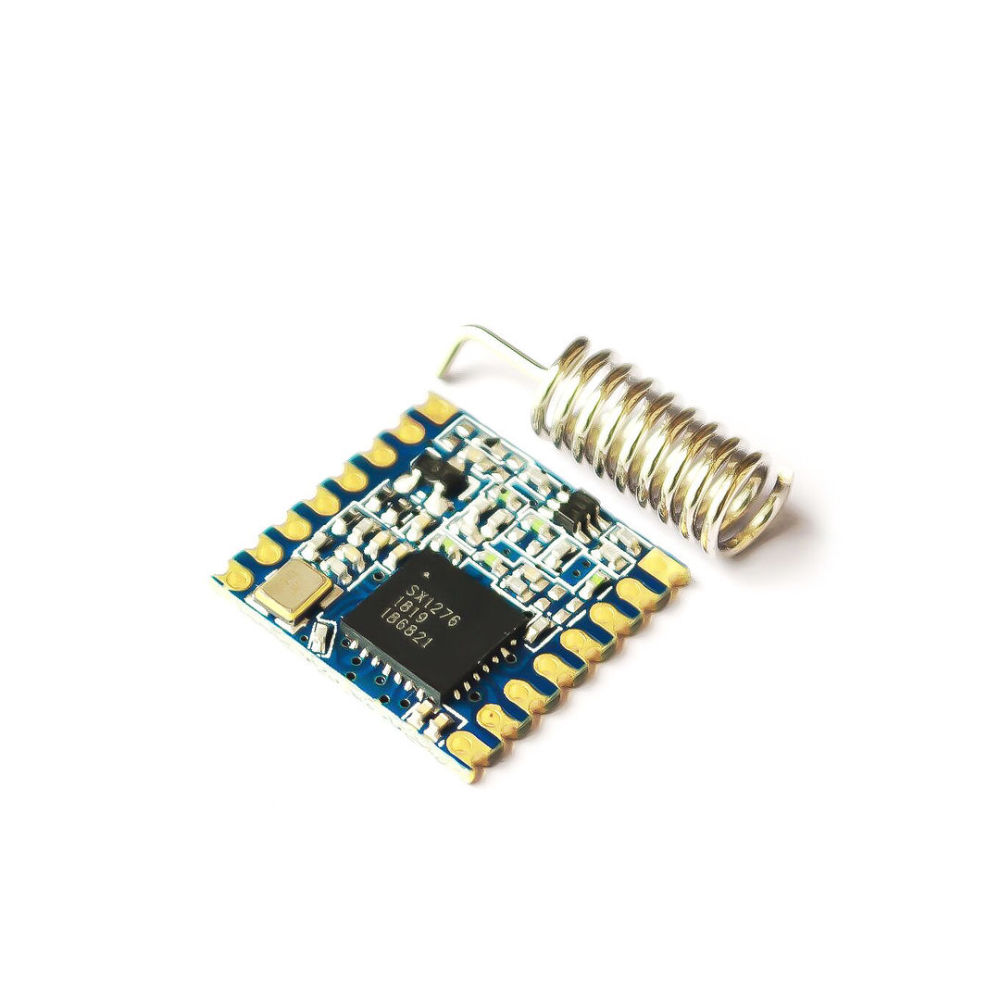

SX1276 Wireless Spread Spectrum Module 868M/915M

1.FSK / GFKS technology, LoRa (remote) spread spectrum technology
2.Half-duplex communication
3.Super anti-interference (channel rejection ratio: 56db)
4.High receiver sensitivity -139dbm
5.ISM muti-band, do not need to apply the frequency of free use
6.Muti-frequency optional, a variety of transmission rates. Can be used in FDMA and FM technology
7.Intelligent reset, low-voltage monitoring, wake-up time, low-power mode, sleep mode
8.Low power receive current: 10-12mA
9.256-bit FIFO TX / RX
10.RSSI channel detection function
11.Transmission Mode: FIFO / Direct Mode (Recommended FIFO Packet Mode)
12.Configuration: AFC / Wake on Air / Low Power / Carrier Sense / FEC Error Correction / AEC Encryption
13.Ultra-long-distance transmission as far as 3KM open
