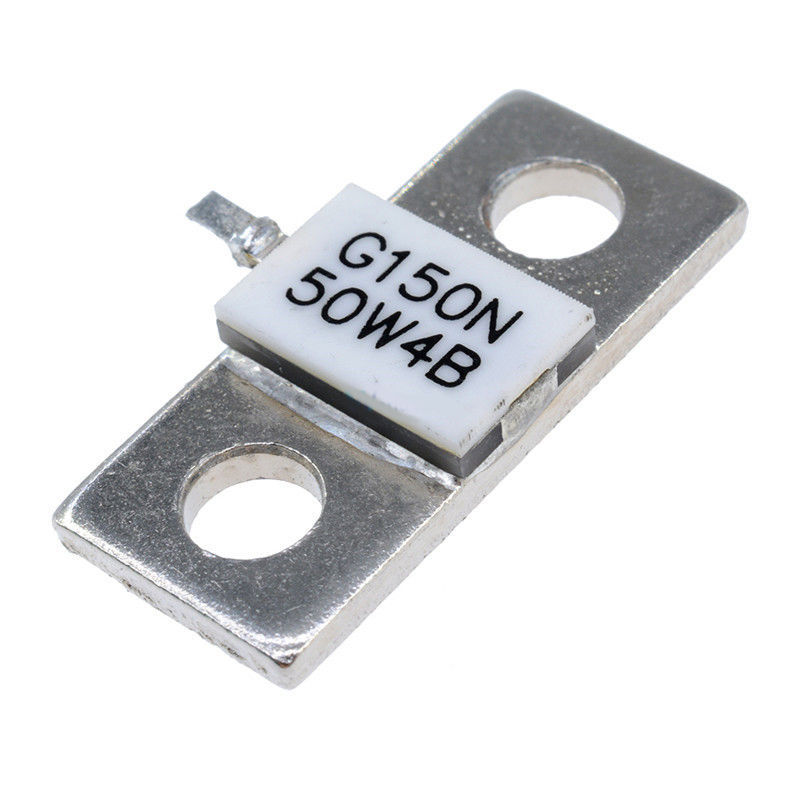

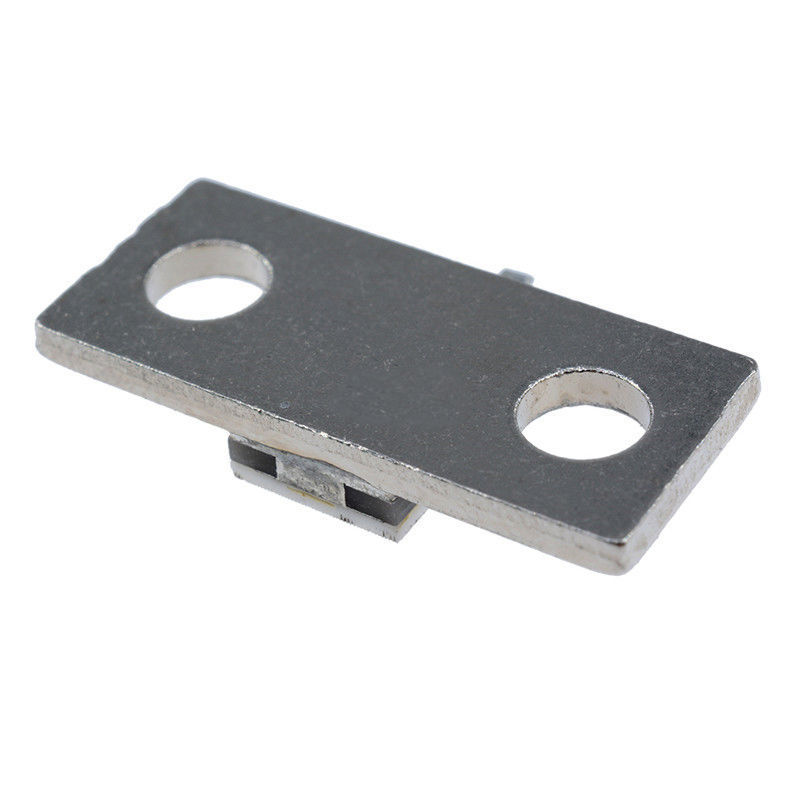

RFP 150N50F 150W DC-3GHz 50ohm Termination Microwave Resistor

Specifications:
Resistive Element: Thick Film
Substrate: AlN Ceramic
Mounting Flange: Nickel Plated Copper
Operating Temperature: -50 to +150°C (see de rating chart)
Tolerance is: ±0.010”, unless otherwise specified. Designed to meet of exceed applicable portions of MIL-E-5400. All dimensions in inches

Electrical Specifications:
Resistance Value: 50 Ohms, ±2%
Power: 150 Watts
Frequency Range: DC - 3.0 GHz
Return Loss:25dB DC - 2.0 GHz 20dB DC - 3.0 GHz
Specification based on unit properly installed using suggested mounting instructions and a 50ohm nominal impedance. Specifications subject to change.
