Size: 25.5mm x 18mm x 4.6mm
Series: stemma
Product Type: Temperature sensor development tool
Original packaging quantity: 1

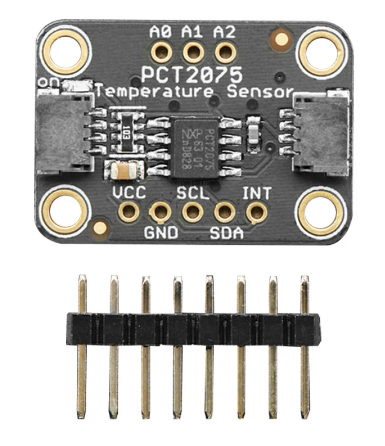

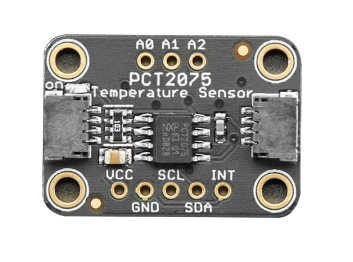

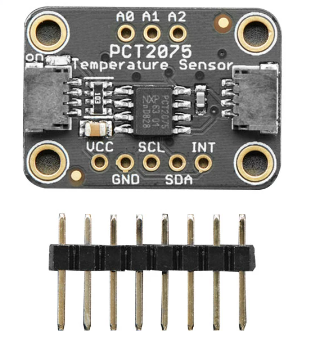

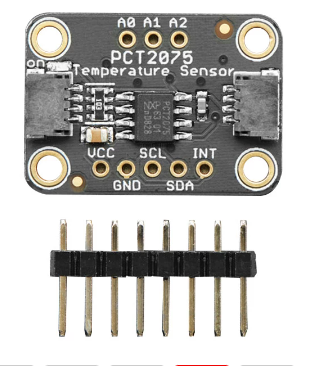

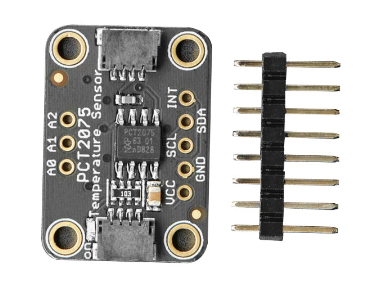

The PCT2075 temperature sensor is a code compatible embedded substitute for LM75 I2C Temperature sensor.
The temperature sensor has an 11-bit ADC, which can provide a precise measurement results.
PCT2075 temperature sensor allows address pins to work in three states, including high, low and floating.
The temperature sensor allows the setting of a high temperature threshold, which is compared with the current temperature.
Then, when the current temperature exceeds the threshold, the sensor will issue an alarm.
The PCT2075 temperature sensor can be placed on a Lay plate with the required support circuit and connector for seamless operation.
The sensor is RoHS2 compliant and compatible with the STEMMA QT JST SH connector.
Features:
11-bit ADC for accurate measurement
Allow address pins to work in three states
Set the high temperature threshold to compare with the current temperature
Alarm when current temperature exceeds threshold
Placed on a Lay plate with required support circuits and connectors
Compatible with STEMMA QT JST SH connector
In line with the RoHS2
Products weight 1.7g
25.5mm x 18mm x 4.6mm size
