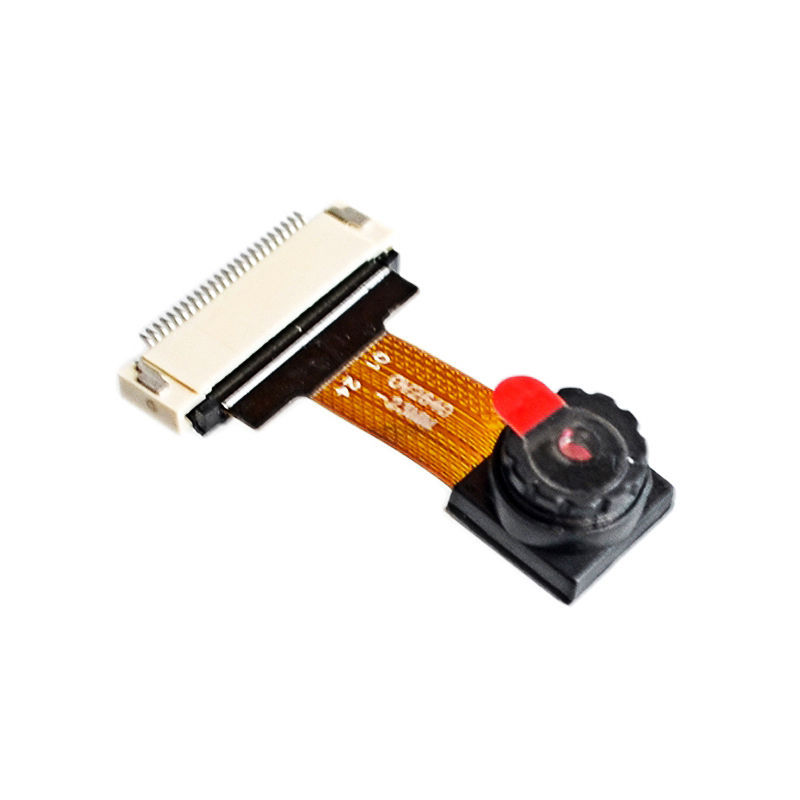

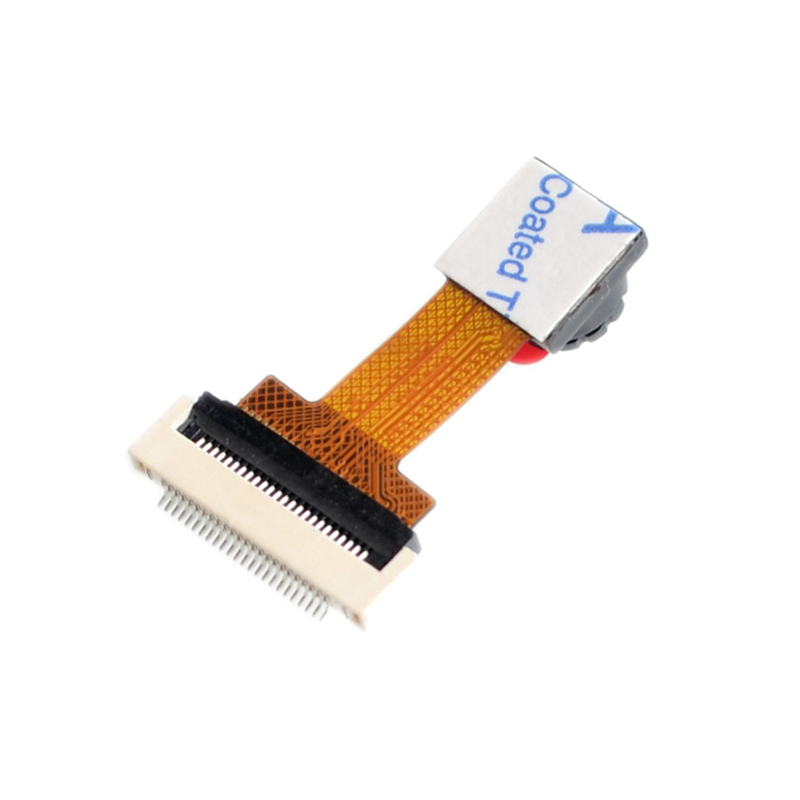

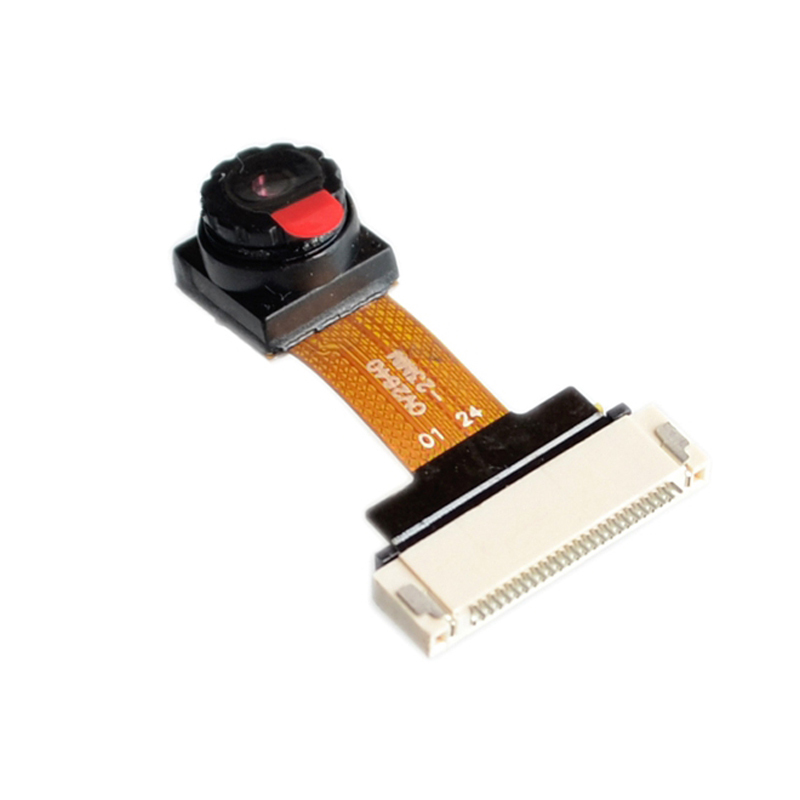

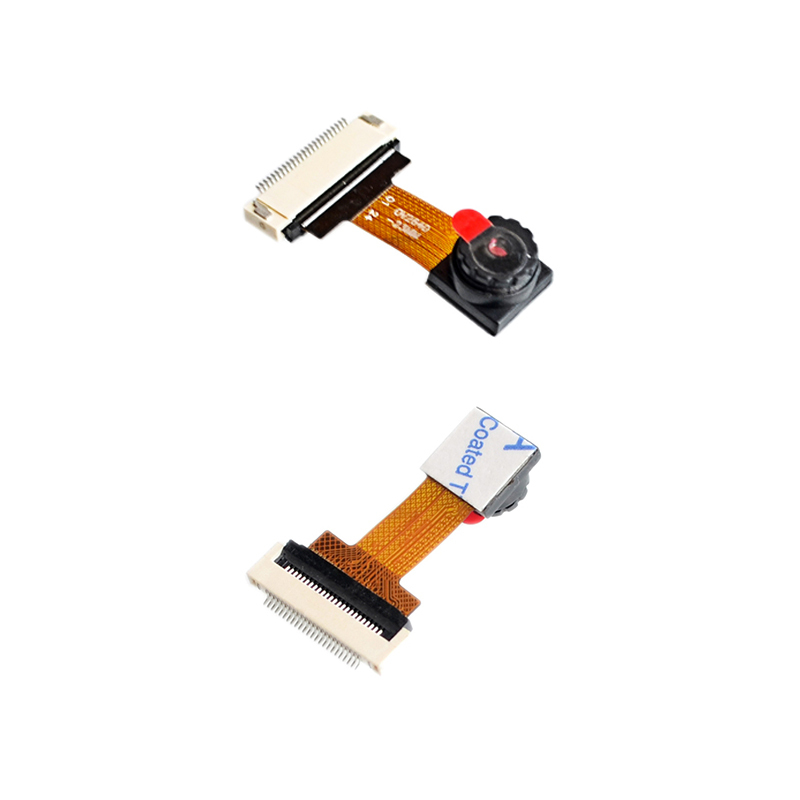

OV2640 ESP32 Camera Module

SKU: 6773396
$0.00 $1.09
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
0 in stock
Add to Favorites
  • OV2640 ESP32 Camera Module
  • OV2640 ESP32 Camera Module
  • OV2640 ESP32 Camera Module
  • OV2640 ESP32 Camera Module
  • OV2640 ESP32 Camera Module
  • OV2640 ESP32 Camera Module
  • OV2640 ESP32 Camera Module
  • OV2640 ESP32 Camera Module
1/1
  • OV2640 ESP32 Camera Module
  • OV2640 ESP32 Camera Module
  • OV2640 ESP32 Camera Module
  • OV2640 ESP32 Camera Module
  • Description

1. OV2640 is a 1/4 inch CMOS ESP32 image sensor. The sensor is small in size and low in operating voltage.

It provides the same functions as a single-chip camera and image processor.
2. Controlled by the SCCB bus, it can output 8/10-bit image data with various resolutions in the form of entire frame,
sub-sampling, scaling and window extraction.
3. Support YUV RGB JPEG images.
4. The user can completely control the image quality, data format and transmission method.
5. D: 112° H: 96.2° wide-angle lens allows you to shoot a wide range of scenes within a short shooting distance.
Lens parameter: 4P+IR
Focal length: 1.50±5%mm
Pixel: 200W
Aperture: 2.4±5%
Lens type: 1/4inch
Field of view: D: 112° H: 96.2°
Analog circuit voltage: 2.8V-3.0V
Distortion: Less than 1%
Interface circuit voltage: 1.8V-2.8V
Photosensitive chip: 0V2640
Digital circuit voltage: 1.2V-1.5V
Support YUV RGB JPEG
Size:21.5x12.5mm
Material:ABS
Colour:Black
