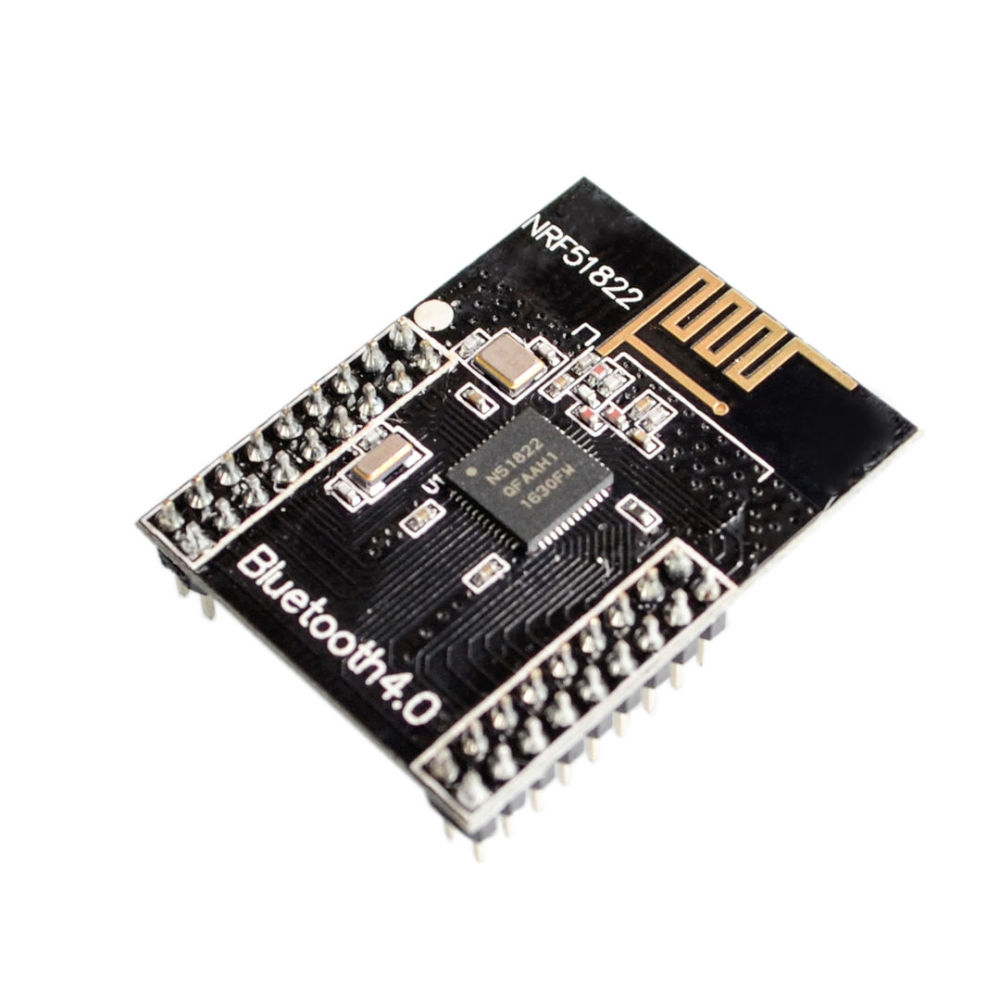

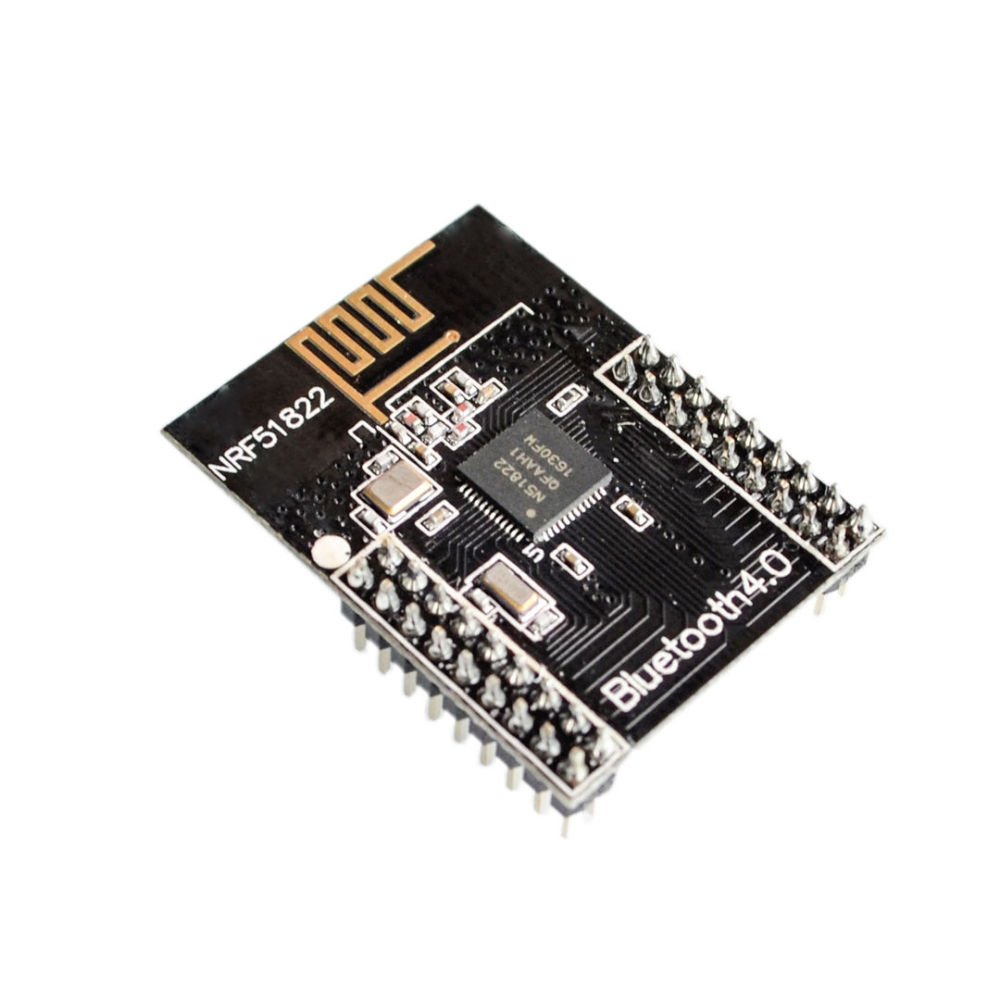

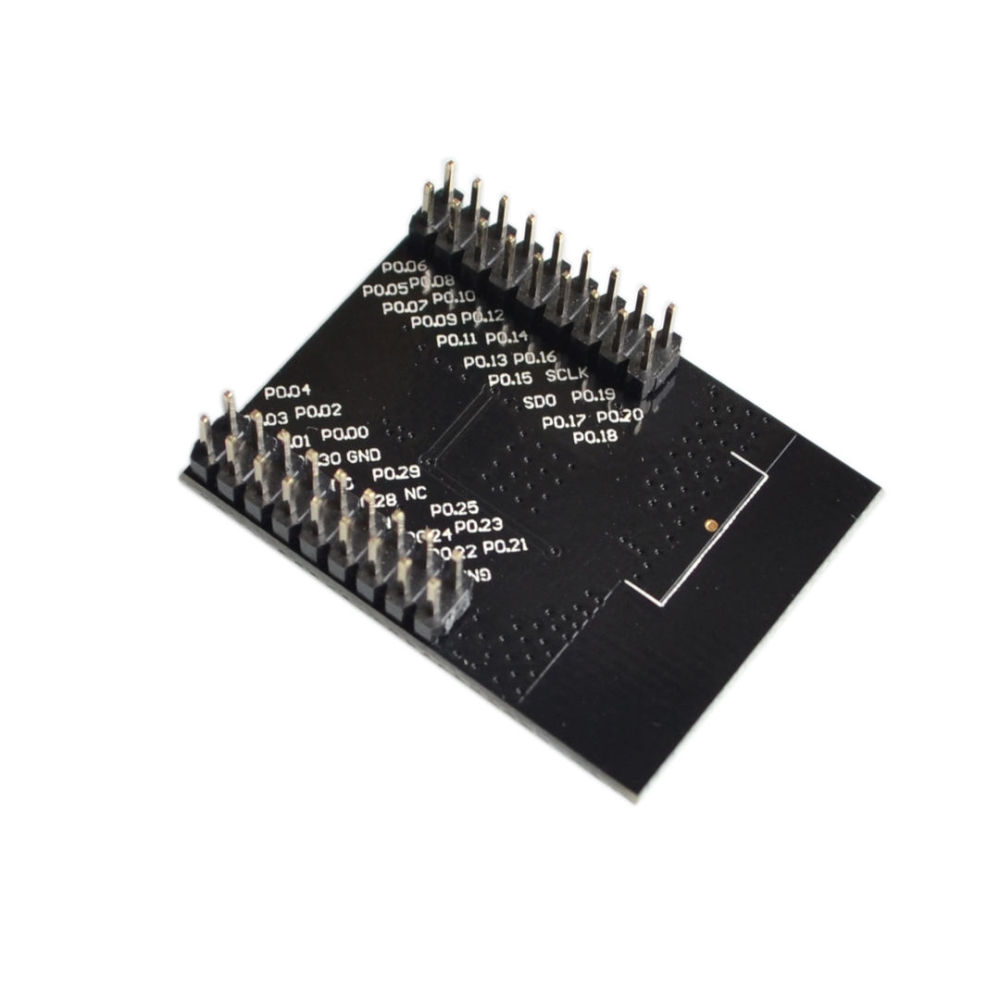

NRF51822 Be4.0 2.4G Wireless Bluetooth Module

Specifications:
Onboard chip: nRF51822
Communication distance (open outdoor@1M data rate): 30m
Frequency range: 2.4GHz
Operating voltage: 2.0V ~ 3.6V
Operating temperature: -40° ~ 85°
Dimension (PCB): 24.5mm x 32.26mm
Expansion pinheader: all the I/Os except P0.26 and P0.27
Pinheader pitch: 2.00mm
Spacing between pinheaders on the left side and the right side: 18.00mm
Antenna: onboard antenna

NRF51822 Characteristic:
2.4 GHz multiprotocol RF transceive
128 bit AES HW encryption
128kB flash & 16Kb RAM
Programmable Peripheral Interconnect (PPI)
Digital interfaces: SPI, I2C, UART
10 bit ADC
Programmable output power: -20 to +4 dBm
Independent application development and protocol stack
Fully compatible with NRF24L series
Pinout compatible with NRF51xxx series
Global separate power management
Operating voltage: 1.8 V ~ 3.6 V

Applications:
Wearable devices
Bluetooth intelligent application
Mobile phone accessories
RFID labels
Smart home appliances
Industry control
Data acquisition system
