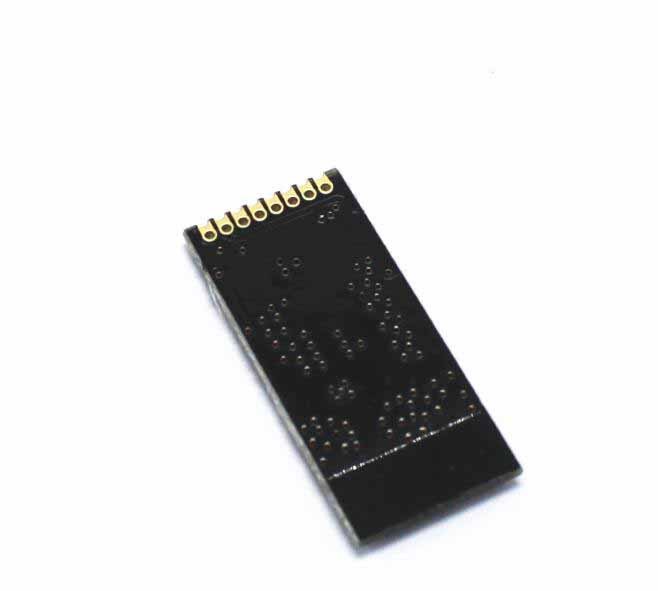

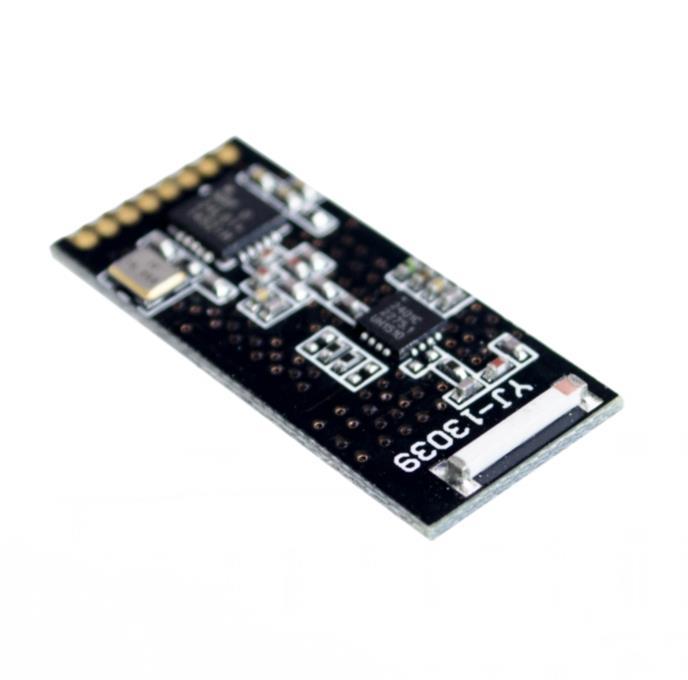

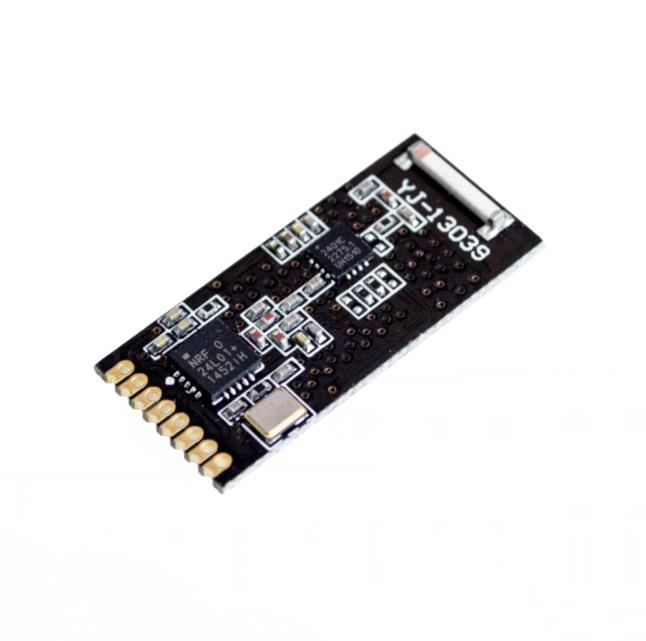

NRF24L01+PA+LNA SMD Wireless Module

Product parameters:
1. 2.4GGlobal ISM open G band, maximum 20dBm transmit power license-exempt use;
2. Supports six channels of data reception, 2Mbit / s high-quality VoIP makes it possible;
3. 2 MBPS speed when receiving the maximum current of 25mA;
4. At 2Mbit / s 0dBm output, the maximum current 45mA;
5. 400nA off mode;
6. 32uA Standby power consumption;
7. 130us quick switch and activation time;
8. Low voltage operation at 2.2Vto3.6V;
9. 27mm * 12mm ultra small size;
10. Standard 10-pin 1.27mm SMD module.
