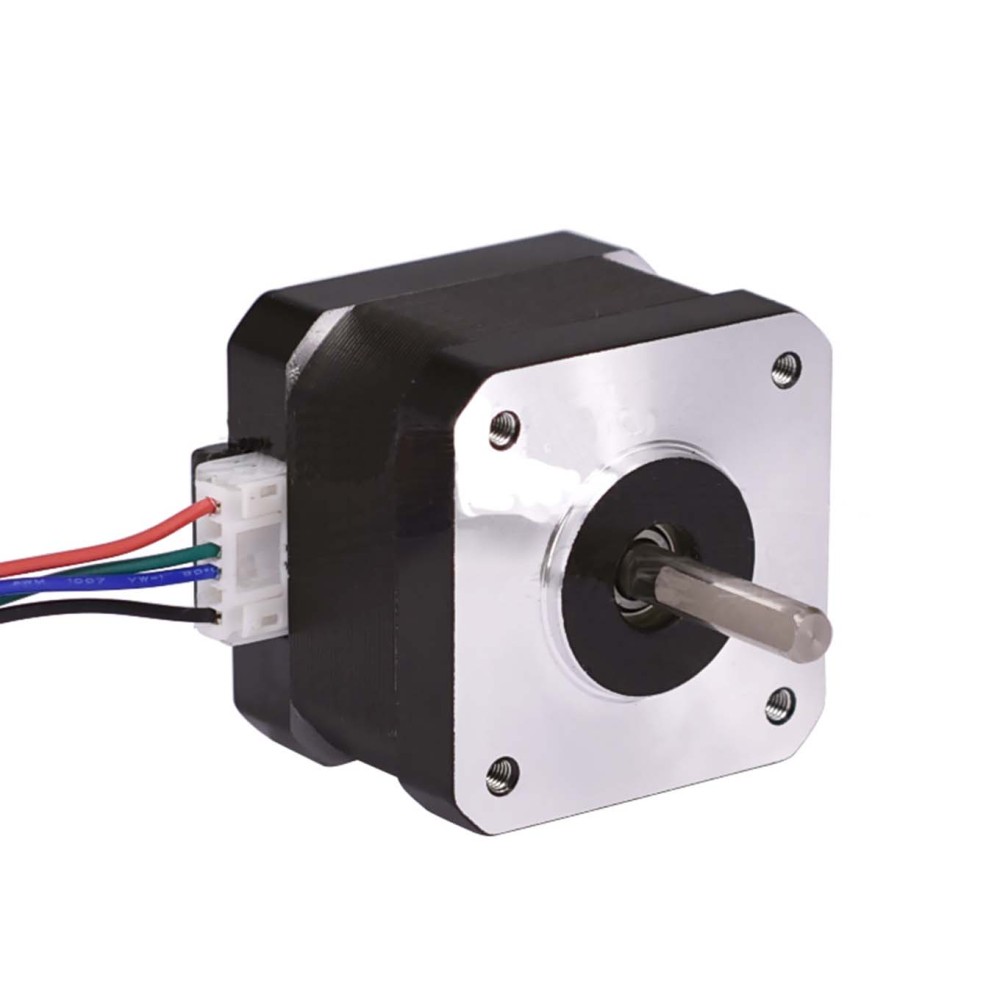

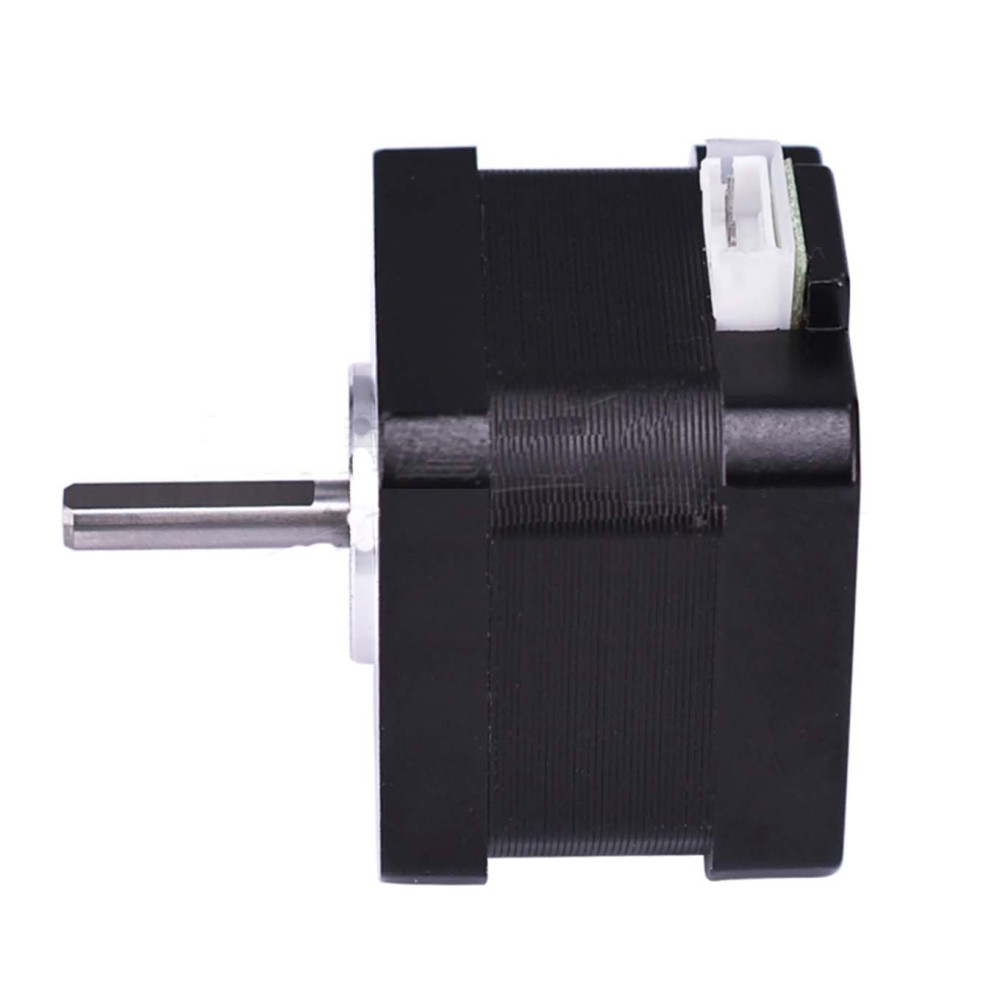

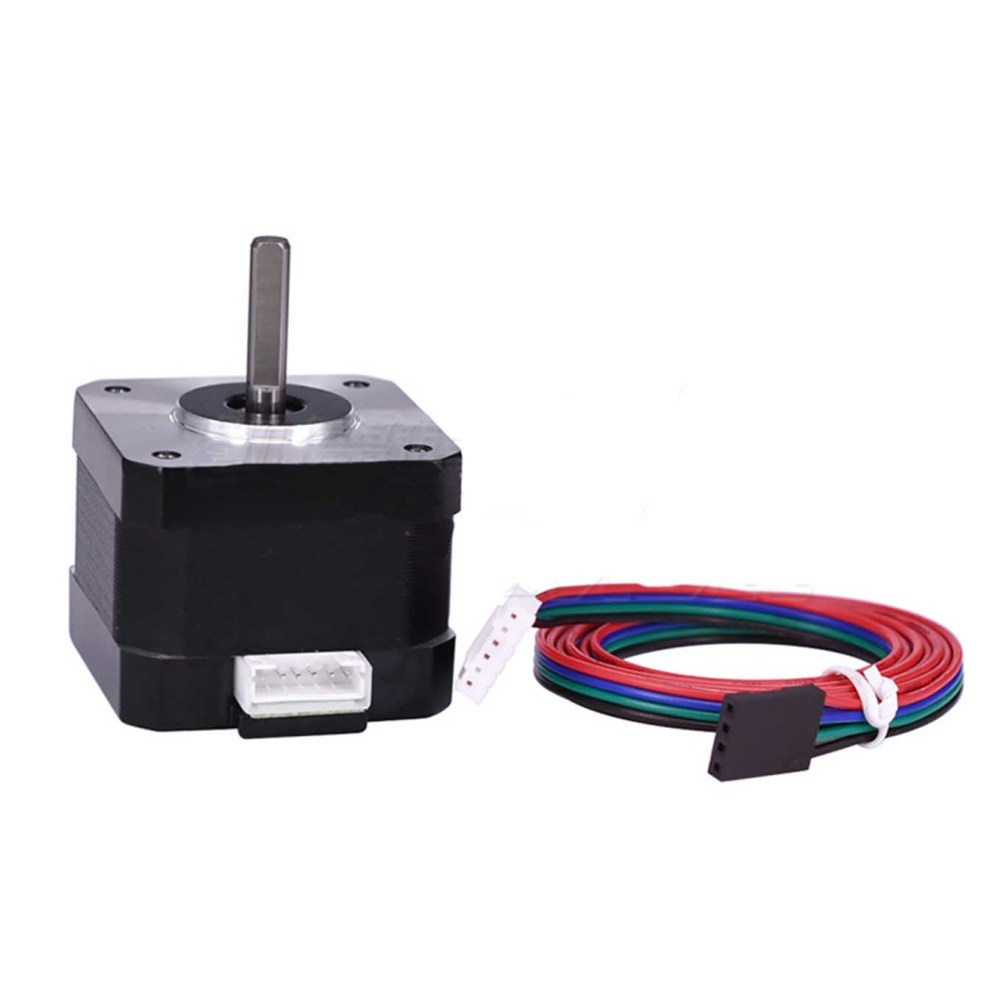

NEMA17HS3401S Stepper Motor

SKU: 0595294
$0.00 $3.67
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Type:
    Silver
    Black
Quantity:
-
+
0 in stock
Add to Favorites
  • NEMA17HS3401S Stepper Motor
  • NEMA17HS3401S Stepper Motor
  • NEMA17HS3401S Stepper Motor
  • NEMA17HS3401S Stepper Motor
  • NEMA17HS3401S Stepper Motor
  • NEMA17HS3401S Stepper Motor
1/1
  • NEMA17HS3401S Stepper Motor
  • NEMA17HS3401S Stepper Motor
  • NEMA17HS3401S Stepper Motor
  • Description
Number of phases: 2
Insulation resistance: ≥ 100 MQ (DC 500V)
Maximum no-load startup frequency: ≥ 1400pps
Positioning torque: 20 MN. M
Phase inductance (1kHz): 5.4 X (1 ground 20%) MH / phase
Nominal current: DC 1.0 A / phase
Step angle: 1.8° ± 0.09°
Moment of inertia: 43.2g. cm2
Electric strength: ac600v / 1mA / 1s
Maximum no-load operating frequency: ≥ 2000 PPS
Direction (shaft extension): a-ab-b-clockwise
Clamping torque: ≥ 290mn. M
Phase resistance (20°C): 3.4 x (1 floor 15%) 2 / Phase
Rated voltage: DC3.4V
Insulation class: Class B
