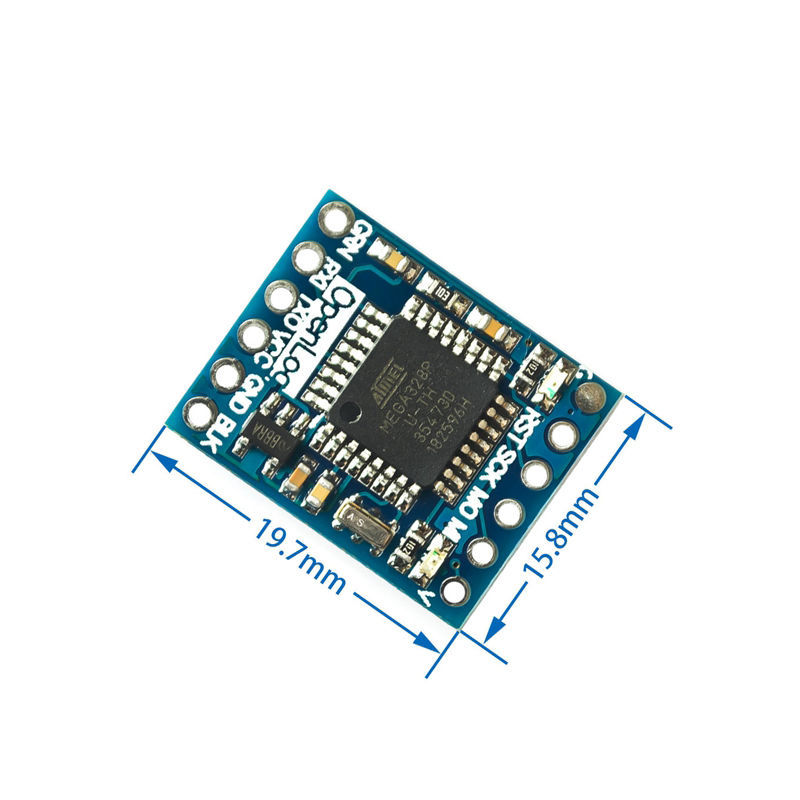

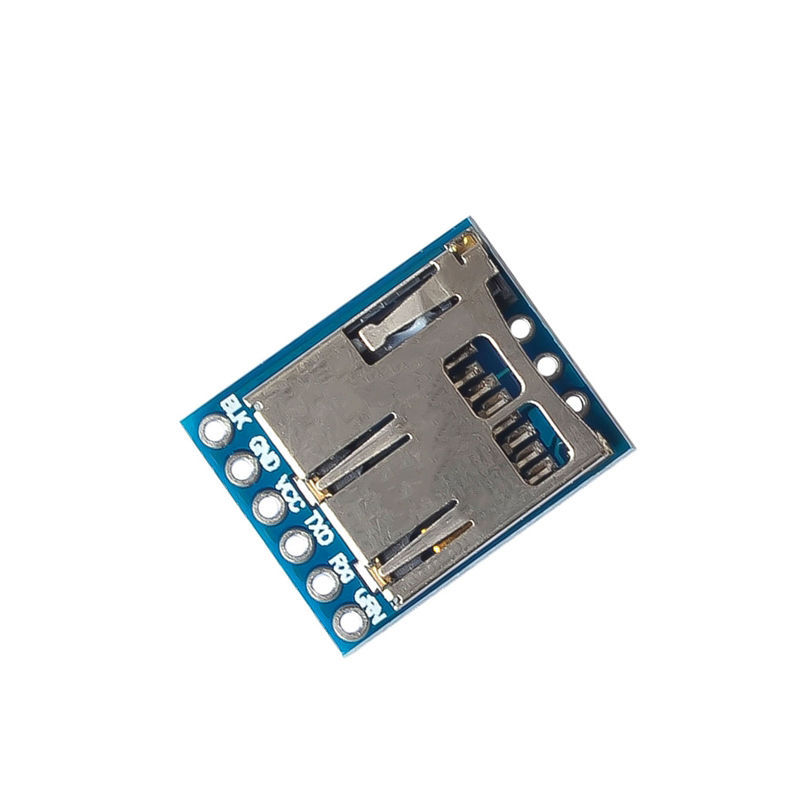

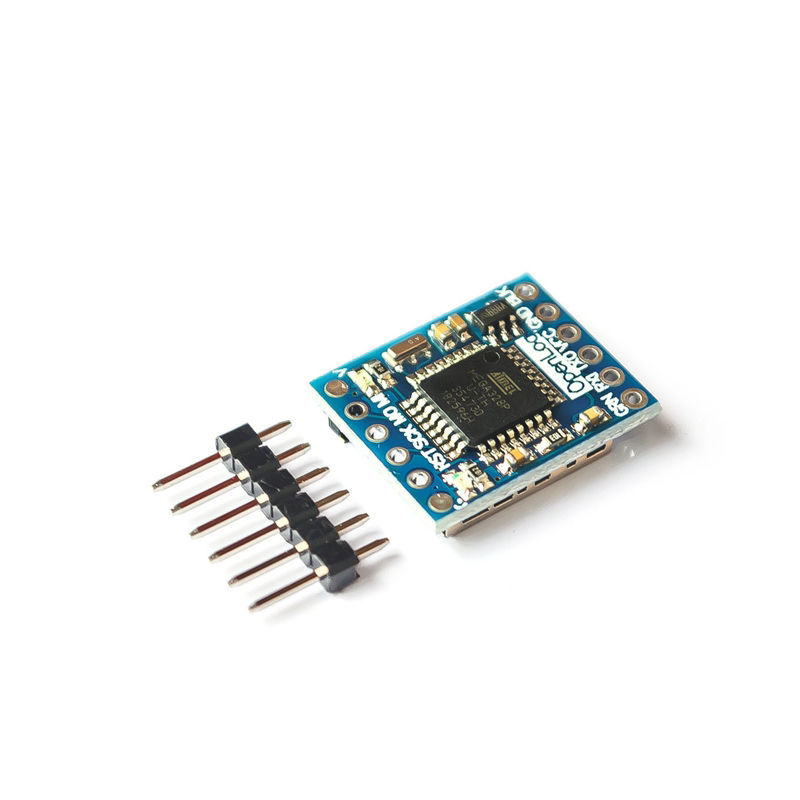

This product is a data logger that can record data on the memory card through the uart universal serial port. This function is similar to a black box to record the data sent by the main device to the serial port and save the data in the form of text on the memory card. This product can be used for flight control boards with cleanflight firmware and connected to the corresponding serial port. Through the settings of the host computer software cleanflight configurator, important operating data of the drone can be recorded on the memory card. And through the Blackbox flight data recorder software to play back and analyze the flight records.
Note: After the memory card is inserted and powered on for the first time, the config.txt file will be produced on the memory card, which includes the baud rate parameter of the serial port. This parameter can be modified. Please change the serial port of the flight controller or the main circuit The baud rate is consistent with the baud rate of the recorder.
Detail:
Input voltage 3.3V~12V (recommended 3.3V~5V)
The memory format is FAT32 and supports up to 64GB of memory.
UART serial interface
Adjustable baud rate
The default bootloader is pro mini atmega328P 5V 16mhz
