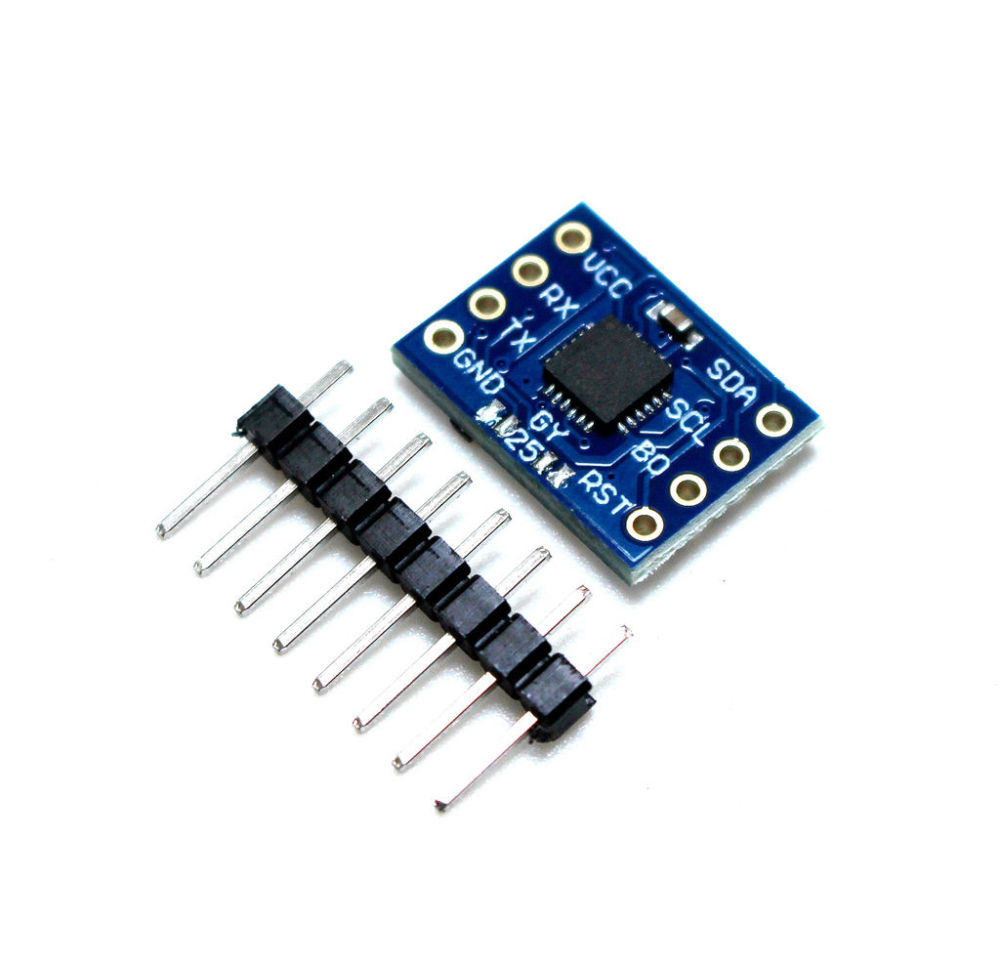

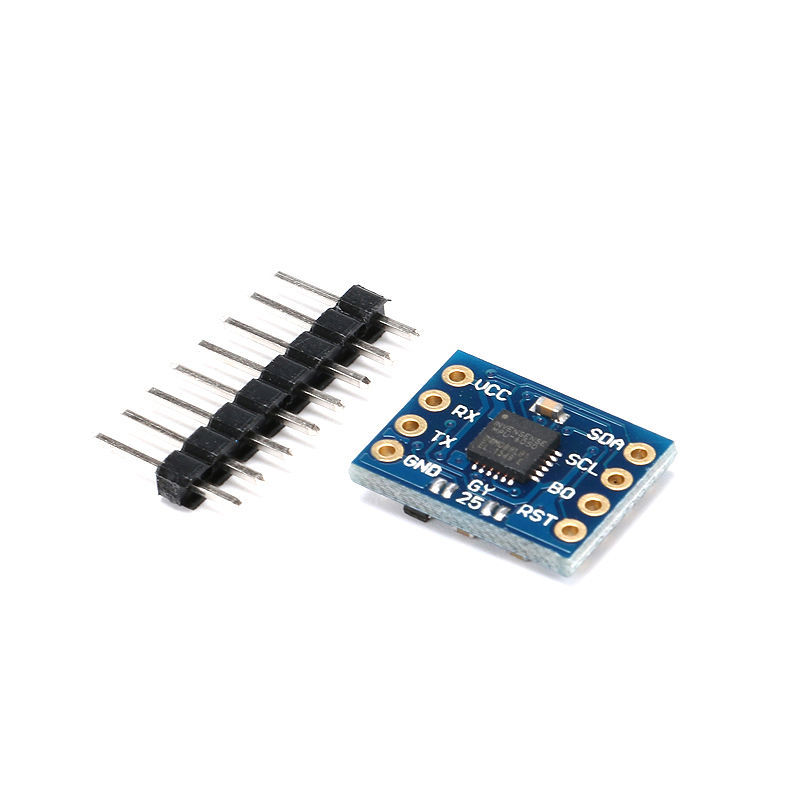

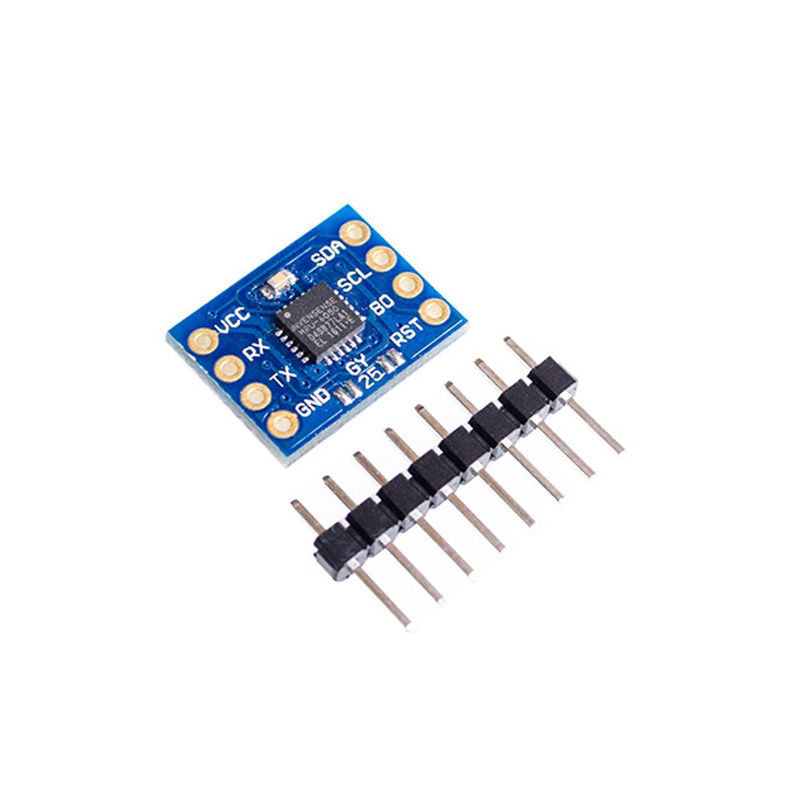

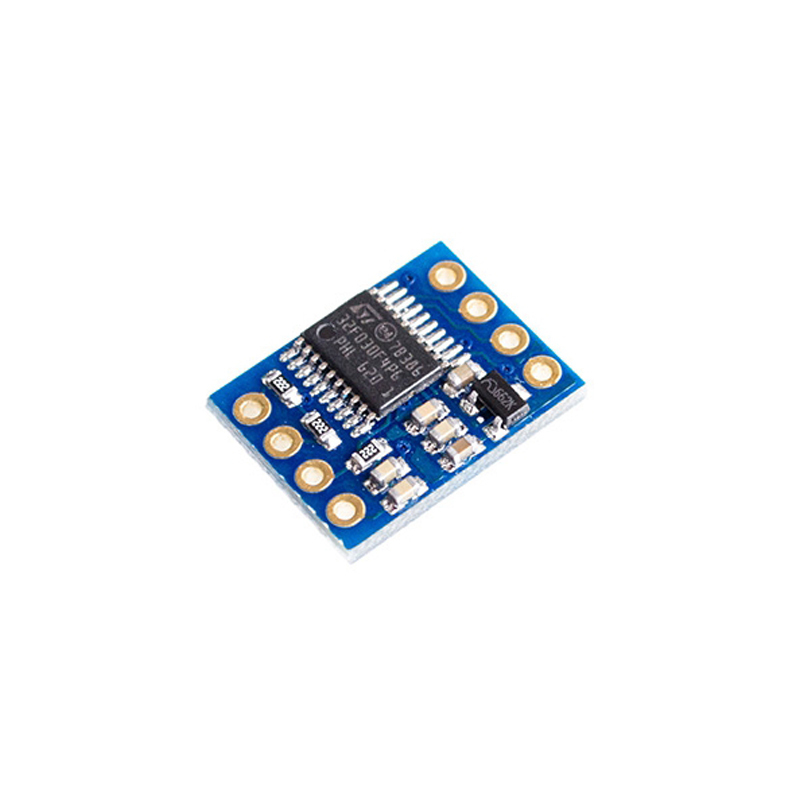

MPU-6050 GY-25 Tilt Angle Serial Port Module

Chip: MCU + mpu6050
Model: gy-25
Power supply: 3-5v (internal low voltage differential voltage)
Communication mode: serial communication (baud rate 9600115200), IIC communication (only read raw data)
Module size: 15.5mm * 11.5mm
Pin spacing 2.54mm
Direct data: yaw roll pitch
Heading angle: (yaw) ± one hundred and eighty ° Roll angle: (roll) ± one hundred and eighty ° Pitch angle: (pitch) ± one hundred and eighty ° Angle resolution: 0.01°
