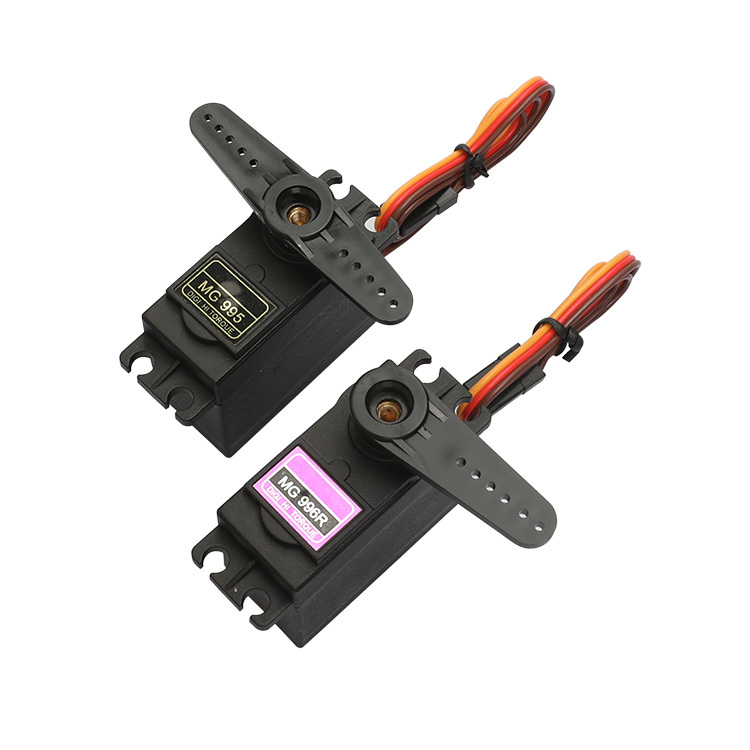

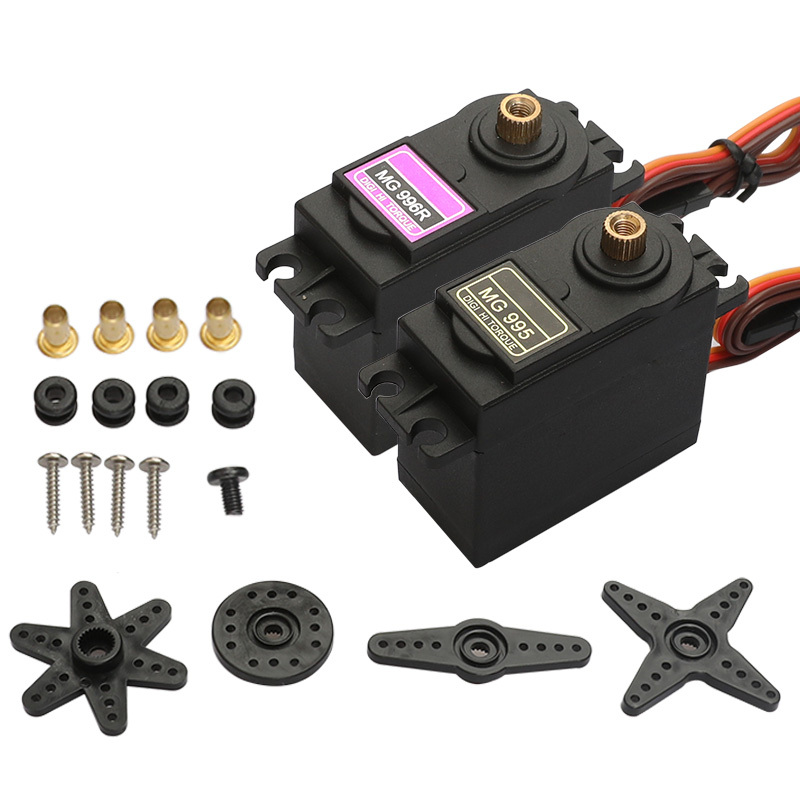

MG996R MG946R MG995 MG945 Servo Motor for Smart Car

Product Name: MG995
Product size: 40.5*20*39.5mm
Product weight: 45g±5%
Working voltage :4.8V - 6.0V
No-load rotational speed: 0.18sec/60°, 0.15sec/60°
No-load current: 160mA - 170mA
Locked torque: 9kg.cm to 13kg.cm
Locked-rotor current: 1100mA±10%, 1300mA±10%
Output shaft :25T
Pulse width range: 500-2500usec

Product Name: MG996R
Product size: 40.5*20*39.5mm
Product weight: 45g±5%
Working voltage :4.8V -6V
No-load rotational speed: 0.18sec/60°, 0.15sec/60°
No-load current: 160mA - 170mA
Locked torque: 9kg.cm to 13kg.cm
Locked-rotor current: 1100mA±10%, 1300mA±10%
Output shaft :25T
Pulse width range: 500-2500usec

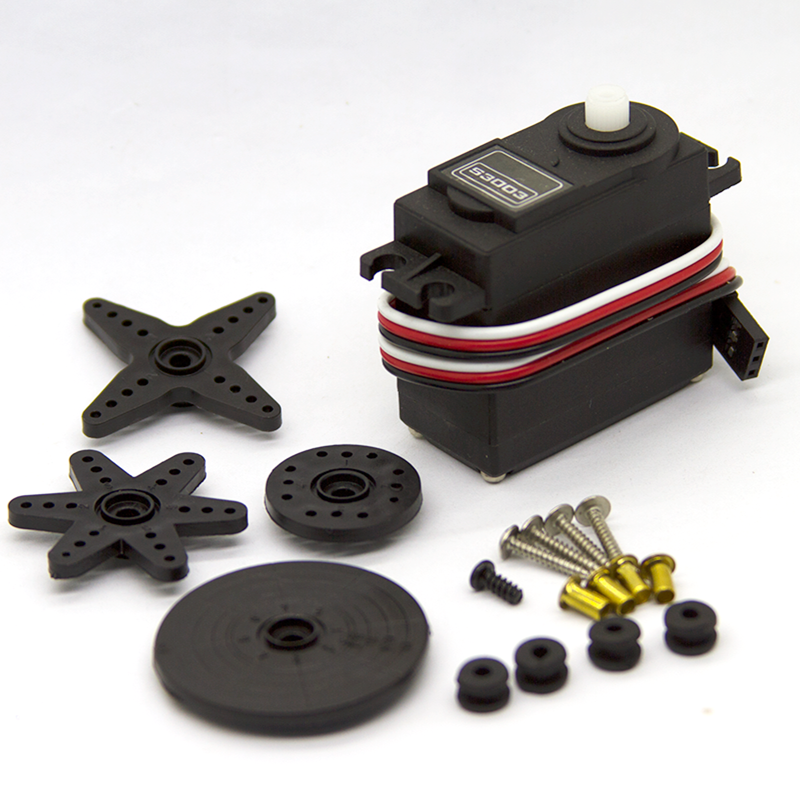

Product Name: S3003
Product size: 40.5*20*39.5mm
Product weight: 45g±5%
Working voltage :4.8V -6V
No-load rotational speed: 0.18sec/60°, 0.15sec/60°
No-load current: 90mA - 120mA
Locked torque: 4.5kg.cm to 6.5kg.cm
Locked-rotor current: 1100mA±10%, 1300mA±10%
Output shaft :25T
Pulse width range: 500-2500usec

Product Name: SG-5010
Product size: 40.5*20*39.5mm
Product weight: 45g±5%
Working voltage :4.8V -6V
No-load rotational speed: 0.18sec/60°, 0.15sec/60°
No-load current: 90mA - 120mA
Locked torque: 4.5kg.cm to 6.5kg.cm
Locked-rotor current: 1100mA±10%, 1300mA±10%
Output shaft :25T
Pulse width range: 500-2500usec
