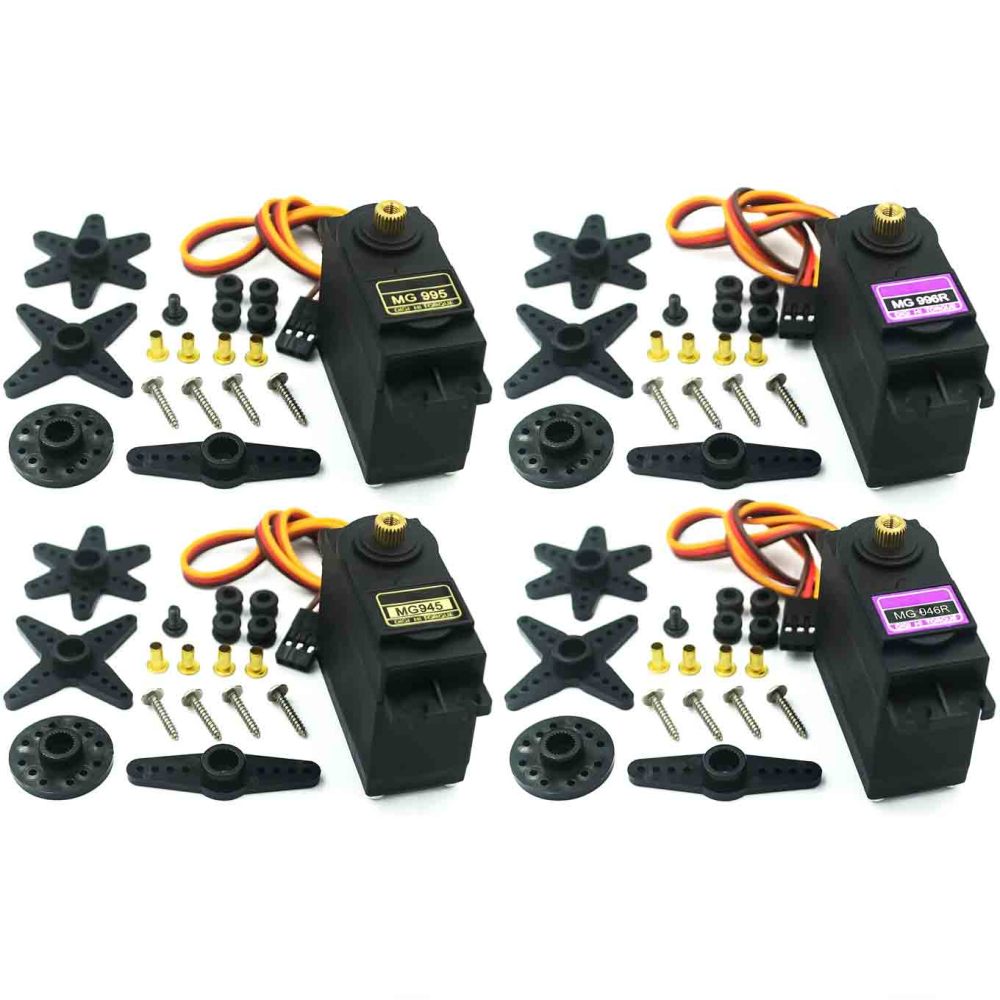

MG995 MG996R MG946R MG945 High Speed Torque Servo Motor

MG995：
Dimension : 40mm x 19mm x 43mm
Color: Black
Operating Speed : 0.17sec / 60 degrees (4.8V no load)
Operating Speed : 0.13sec / 60 degrees (6.0V no load)
Stall Torque : 13 kg-cm (180.5 oz-in) at 4.8V
Stall Torque : 15 kg-cm (208.3 oz-in) at 6V
Operation Voltage : 4.8 - 7.2Volts
Gear Type: All Metal Gears
Connector Wire: Heavy Duty, 300mm

MG946R：
Product Dimensions: 40.7 * 19.7 * 42.9mm
Products Torque: 10.5-13kg (4.8-6.0V)
Product Speed: 0.17-0.14s (4.8-6.0V)
Operating temperature: 0°C-55°C
Deadband setting: 5 sec

MG945:
Working Torque: 10.5 kg/cm (4.8V), 13.0 kg/cm (6.0V)
Reaction Speed: 0.2 Seconds/60 Degrees (4.8V), 0.17 Seconds/60 Degrees (6.0V)
Operating Temperature: 0-55℃
The Deadband Setting: 4 Microseconds
Operating Voltage: 4.8V-7.2V
Features: High Speed, Stable, Shock Proof
Size: 43mm x 40.7mm x 19.7mm
Line Length: 30cm
