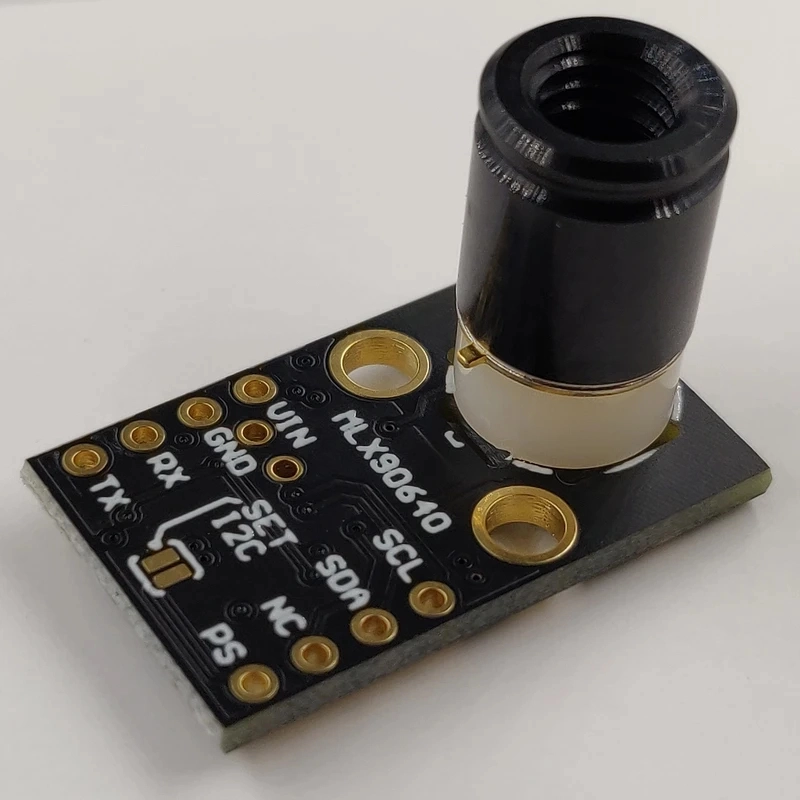

MCU90640 MLX90640 IR 32x24 Infrared Temperature Measurement Lattice Sensor Thermal Imager Module

Ambient temperature: - 40 ~ 85 ℃
Target temperature measurement range: - 40 ~ 300 ℃
Maximum output frequency of serial port: 16Hz
Baud rate: 460800


Product features

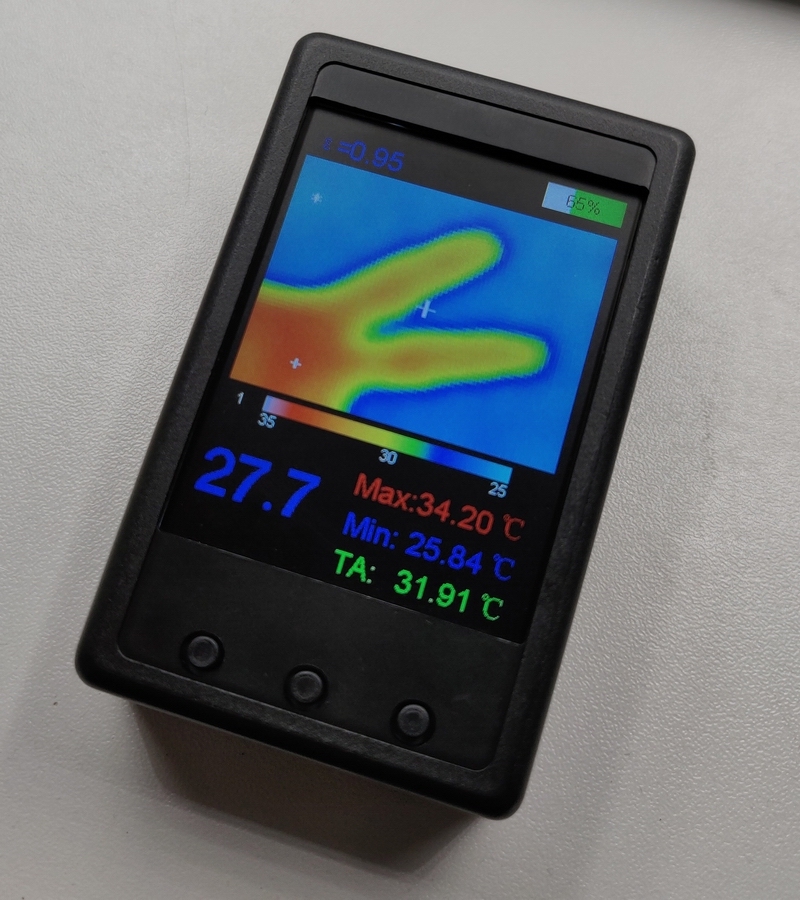

1. Provide upper computer software to directly display temperature imaging graphics.

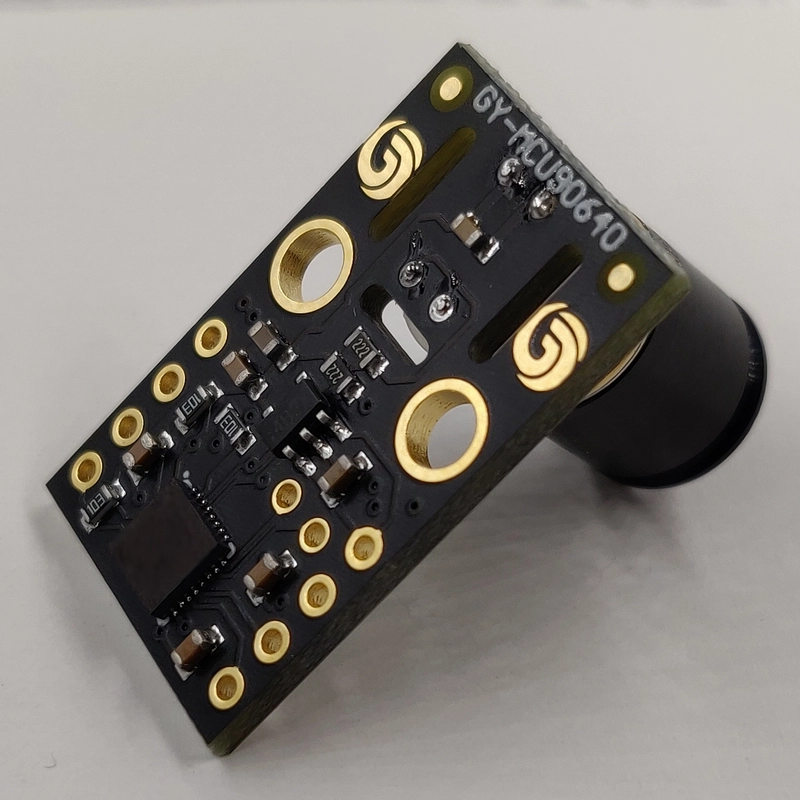

2. The module contains a single chip microcomputer, the serial port directly outputs 768 temperature data, and the USB to TTL is directly connected to the computer to see the data.

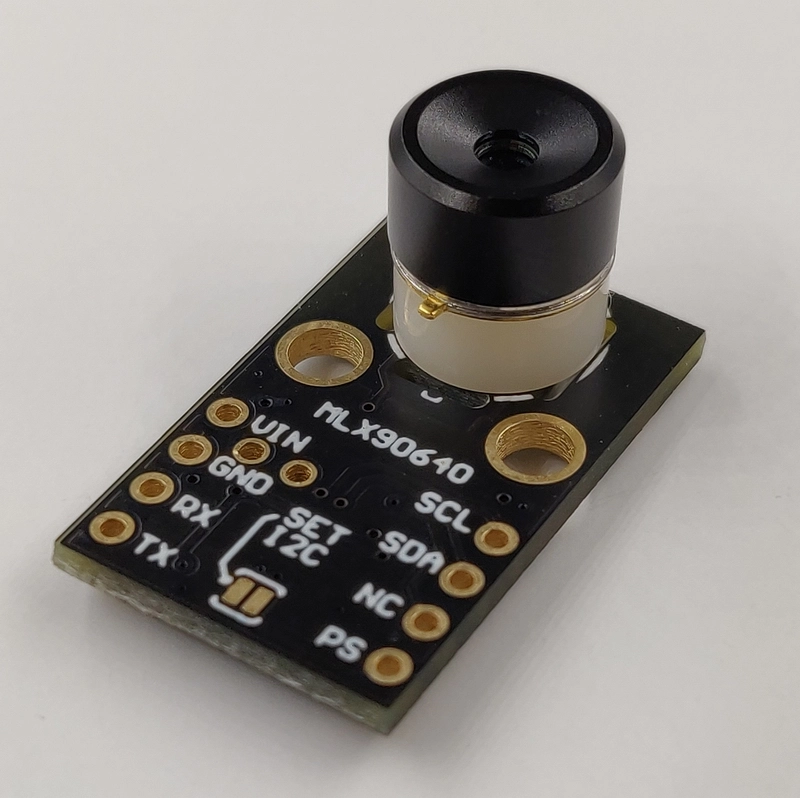

3. The I2C interface of the original mlx90640 is retained, and the sensor chip can also be directly operated by an external single chip microcomputer (PS connected to GND).
