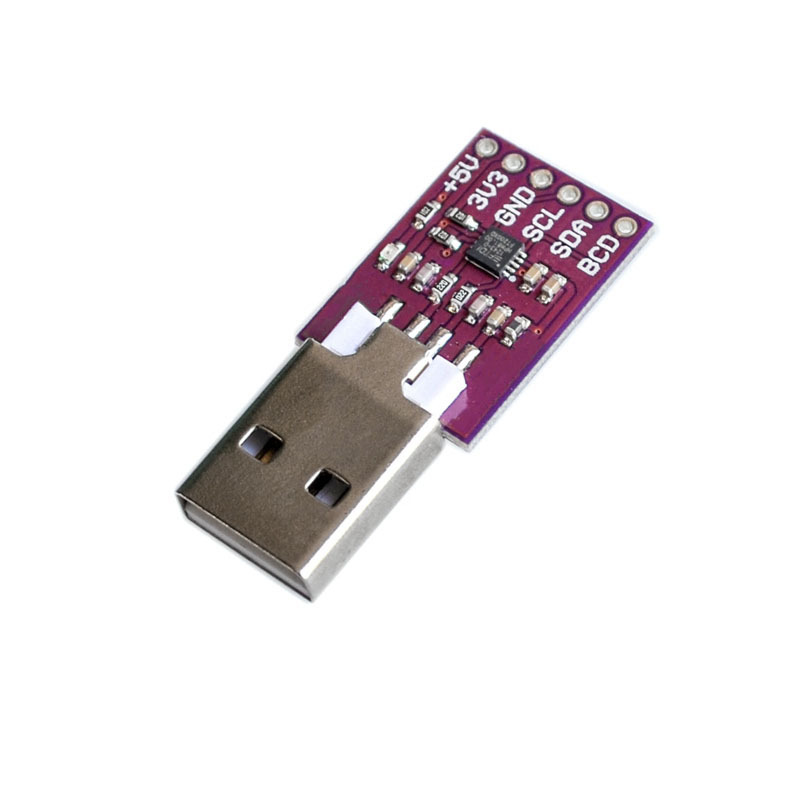

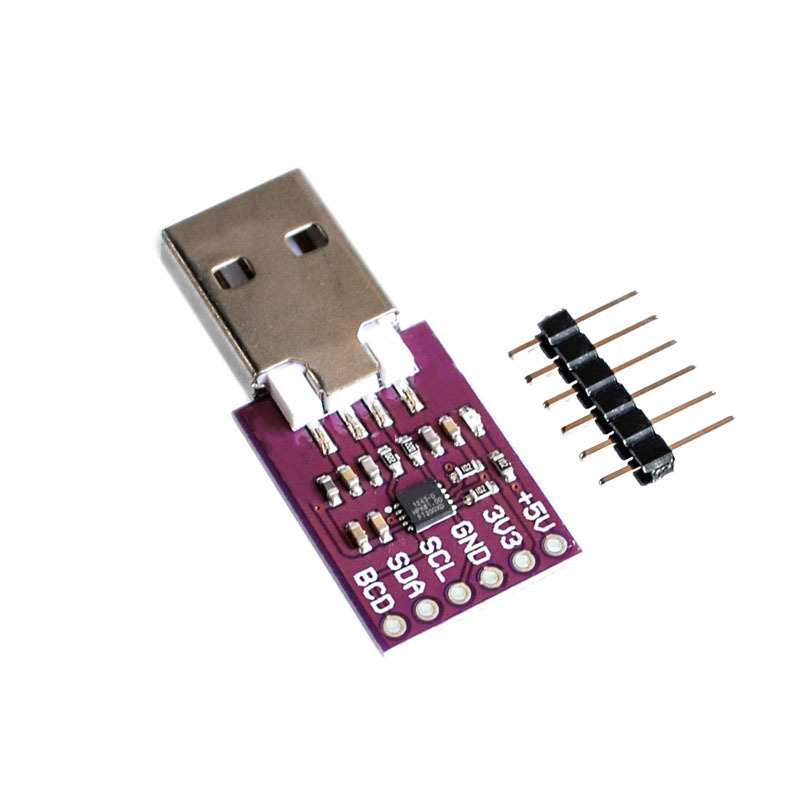

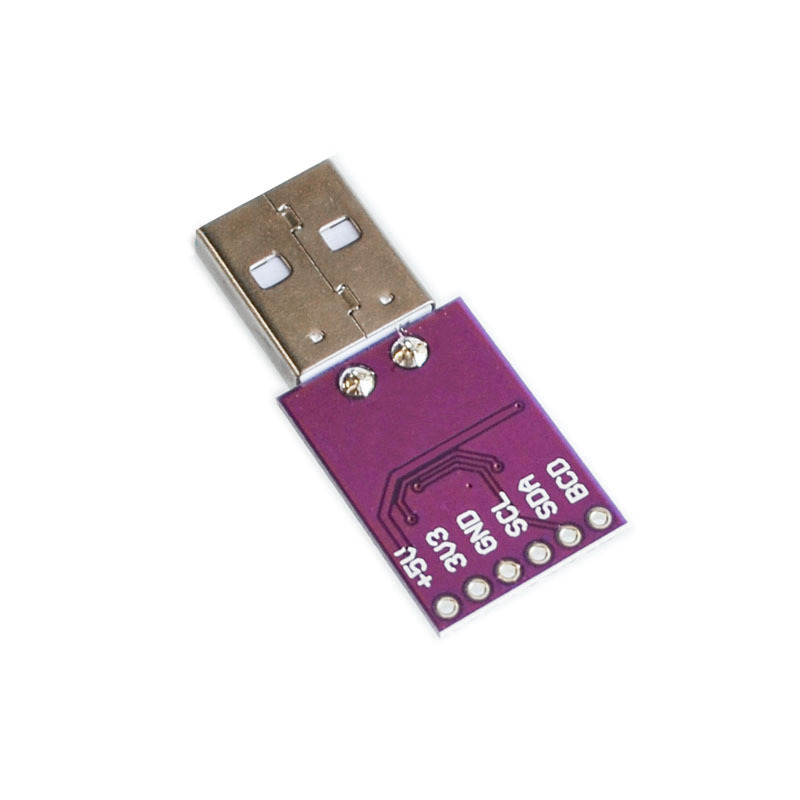

MCU-200 FT200XD Full Speed USB to I2C Bridge

Up to 3.4MHz, high-speed mode, I2C supported.

Entire USB protocol handled on the chip, no USB specific firmware programming required.

Fully integrated 2048 byte multi-time-programmable.

(MTP) memory storing device descriptors and CBUS I/O configuration.

Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA 512 byte receive buffer and 512 bytes transmit USB Power Configurations supports bus-powered,self-powered and bus-powered with power switching.

Integrated +3.3V level converter for USB I/O.

True 3.3VCMOS drive output and TTL input, Operates down to 1V8with external pull-ups, tolerant of 5V input.

Configurable I/O pin output drive strength, 4mA(min) and 16mA(max)

Integrated power-on-reset circuit.

Fully integrated AVCC supply filtering - no external filtering required.

Internal 3V3/1V8 LDO regulators.


Characteristic:
Chip: FT200XD
Operating Voltage: 5V
Interface: USB, I2C
Pin Number: 6 Pins
