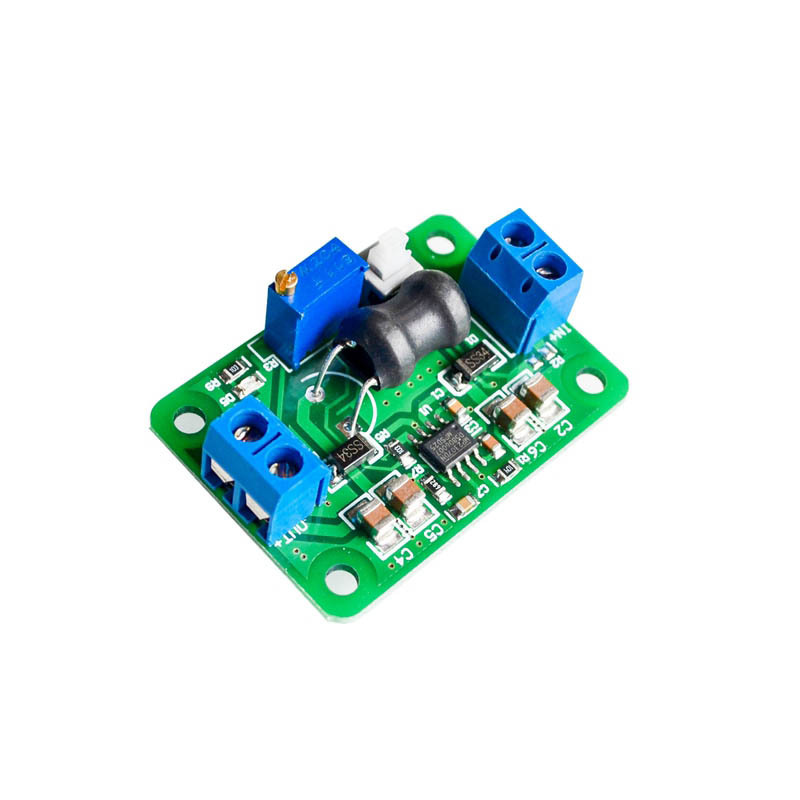

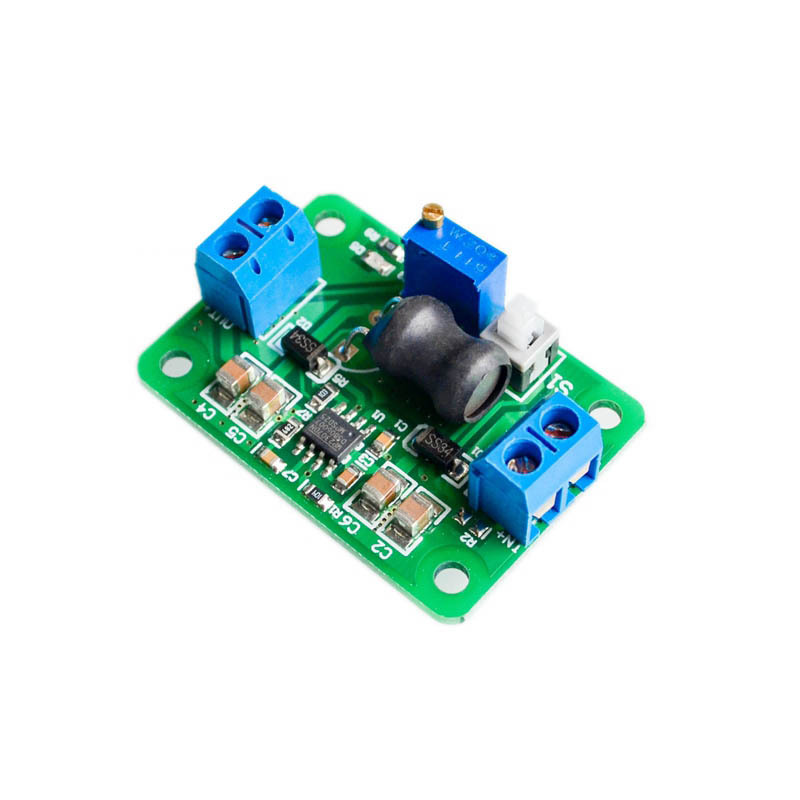

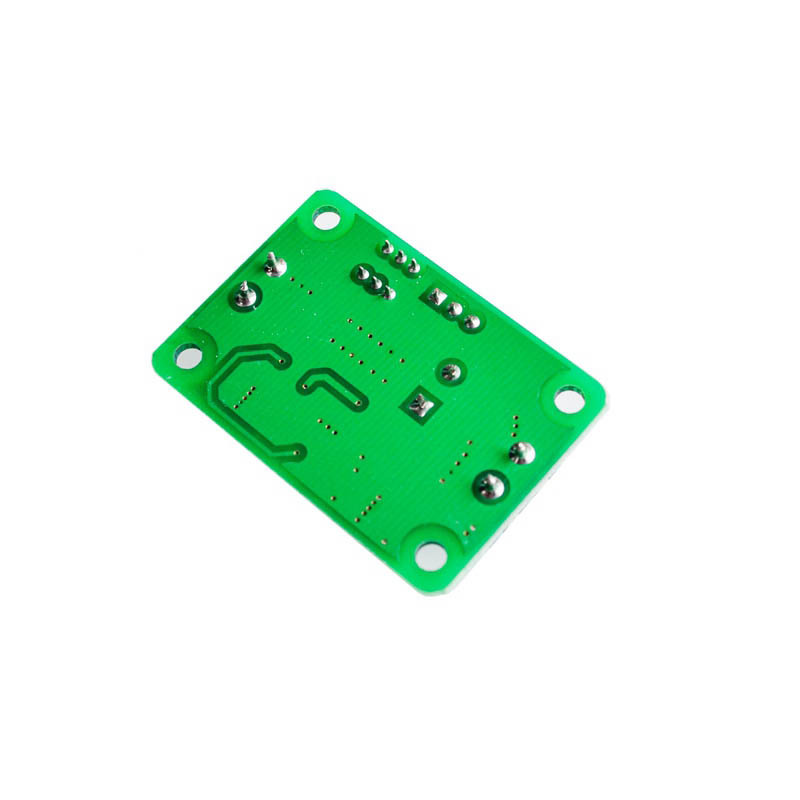

LM2596 DC-DC Adjustable Step Down Module

1. In+: Input positive
2. In-: Input negative
3. Out+: Output positive
4. Out-: Output negative
5. Dimensions: 44 *30.5 *12mm(length*width*height)
6. Button switch: Control the module work or not
7. Input voltage: 5-24V(Maximum limit voltage is 24V, please leave some leeway to use ,otherwise
be damaged)
8. Output voltage: 0.93V-18V (step-down mode, Inputs must be higher than the output above 2V)
9. Output current: Continuous output 2.5A
10. Ripple frequency: About 330KHZ
11. Ripple peak to peak value: 50mv
12. Static power consumption: Typical about 15mA
