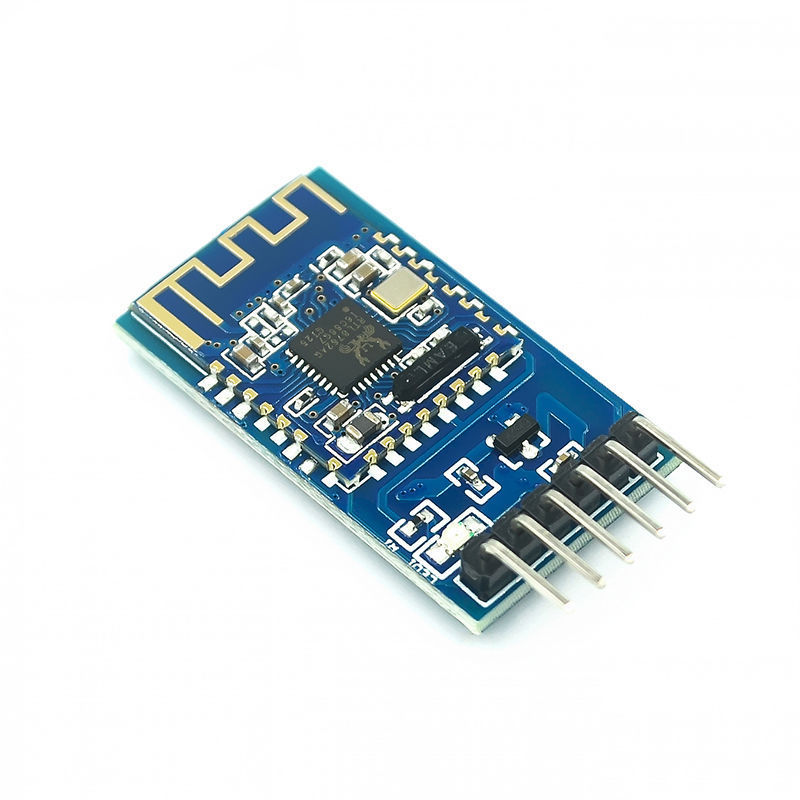

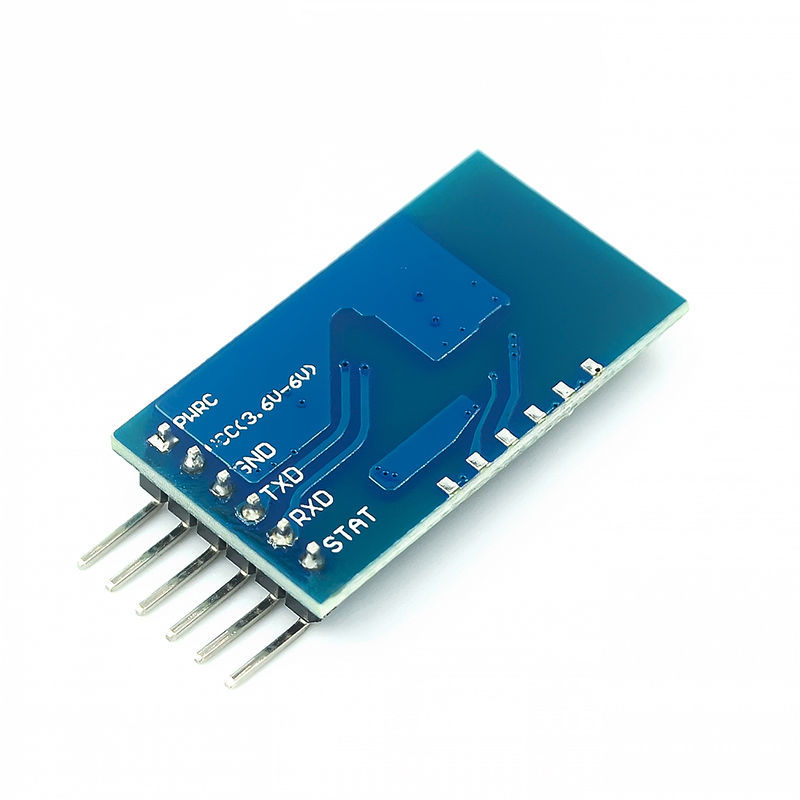

JDY-16 with Baseboard Bluetooth 4.2 Module

SKU: 3771164
$0.00 $1.94
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
0 in stock
Add to Favorites
  • JDY-16 with Baseboard Bluetooth 4.2 Module
  • JDY-16 with Baseboard Bluetooth 4.2 Module
  • JDY-16 with Baseboard Bluetooth 4.2 Module
  • JDY-16 with Baseboard Bluetooth 4.2 Module
  • JDY-16 with Baseboard Bluetooth 4.2 Module
  • JDY-16 with Baseboard Bluetooth 4.2 Module
1/1
  • JDY-16 with Baseboard Bluetooth 4.2 Module
  • JDY-16 with Baseboard Bluetooth 4.2 Module
  • JDY-16 with Baseboard Bluetooth 4.2 Module
  • Description

Product parameters:

Model: JDY-16
Working frequency band: 2.4G
Communication interface: UART OR IIC
Working voltage: 1.8V-3.6V
Working temperature: -40℃~80℃
Antenna: Built-in PCB antenna
Introducing sensitivity: -97dbm
Transmission distance: 60 meters

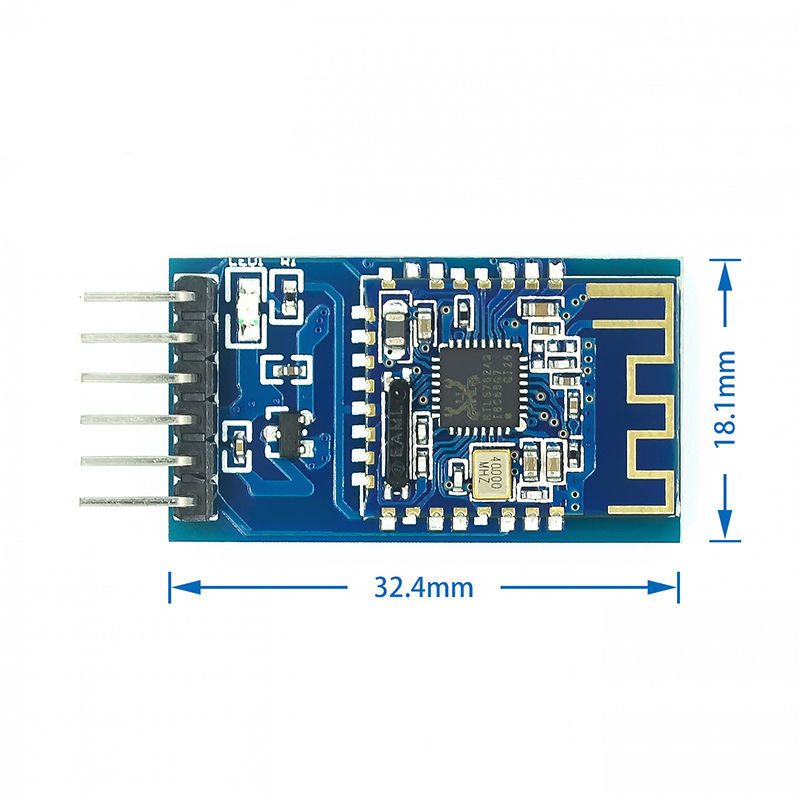

Module size: 19.6mm*14.94mm*2.6mm
Bluetooth version: BLE4.2 (compatible with BLE4.0, BLE4.1)
Speed: 115200bps/s
Wake-up state current: 4mA (with broadcast)
Light sleep state current: <300uA (no broadcast)
Deep sleep current: 1.8uA (no broadcast)
STM welding temperature: <300℃
