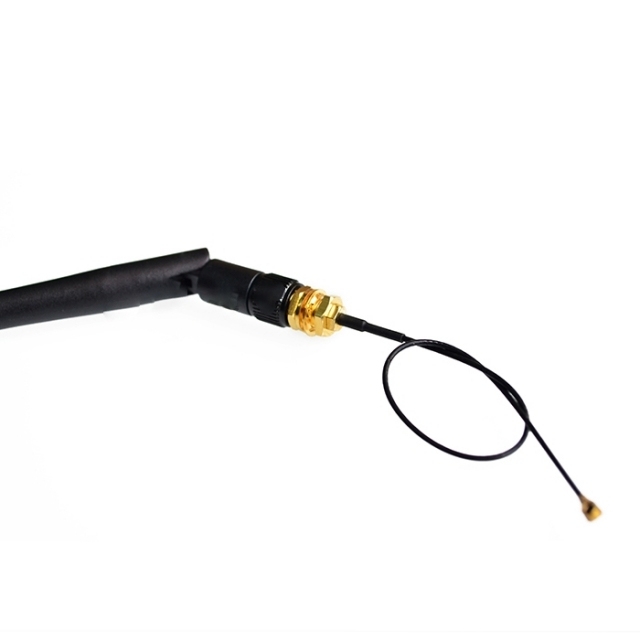

IPEX to SMA Female External Adapter For 2.4G WIFI Module

Frequency Range(MHz) 2400-2500
Gain(dBi) ＞2.5
V.S.W.R. ＜1.5
Polarization Vertical
Non-Circularity(dB) ±0.5
Impedance(Ω) 50
Lightning Protection Direct Ground
Maximum Input Power(W) 50

Mechanical Specifications:
Connector Type SMA
Radiating Element Material Copper
Radome Material EVA
Radome Color Gray
Dimension (mm) 110(Unbend) 92(Bend)
Tailing Cable Length(mm) 100/120/200
Packing Size(mm) 295×110×60
Application Condition Indoor
Operating Temperature(℃) -40~+70
Reposition Temperature(℃) -55~+80
