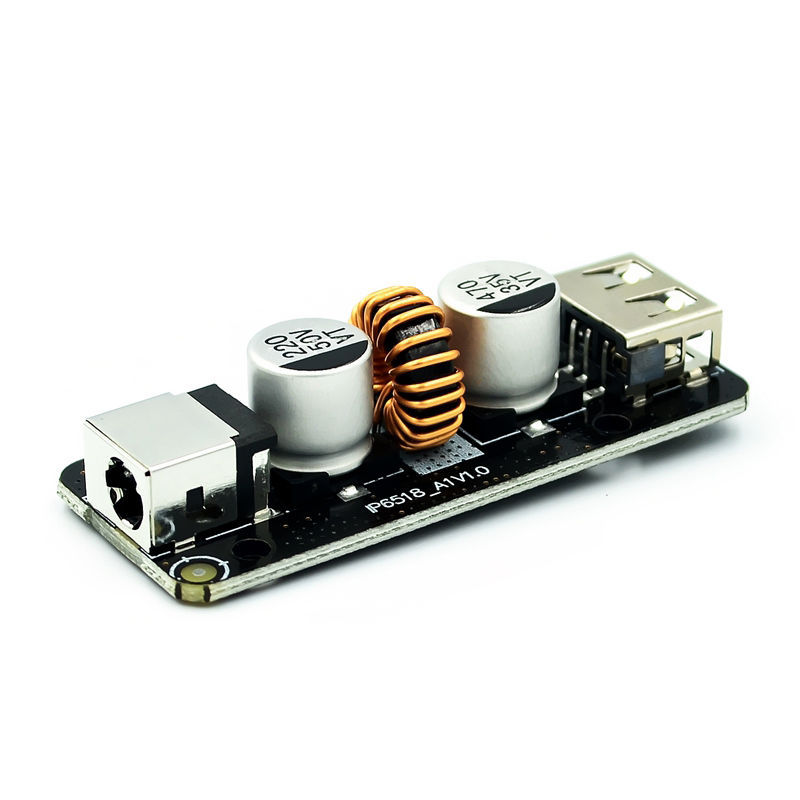

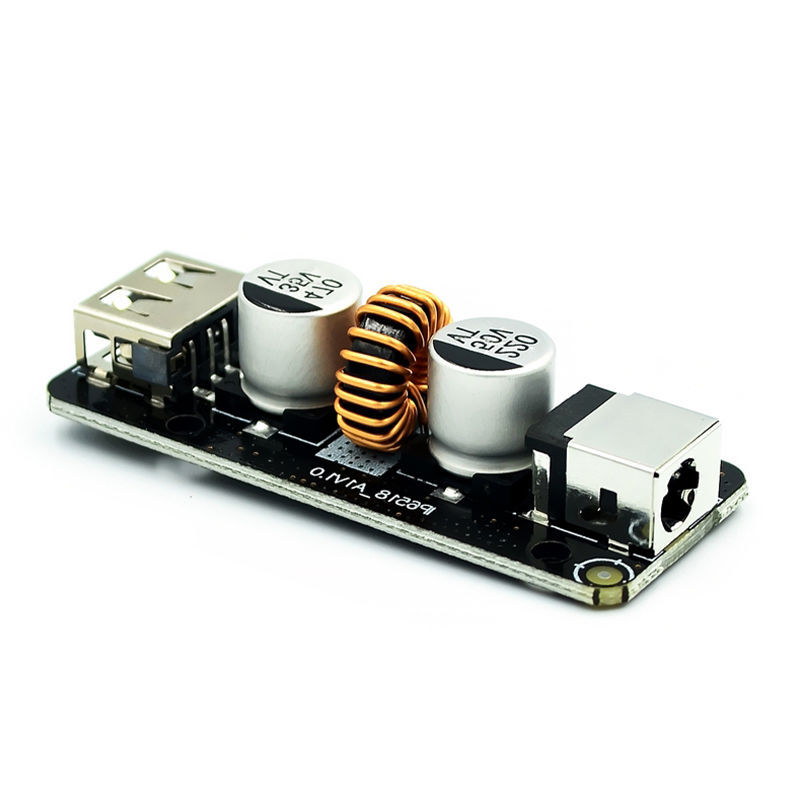

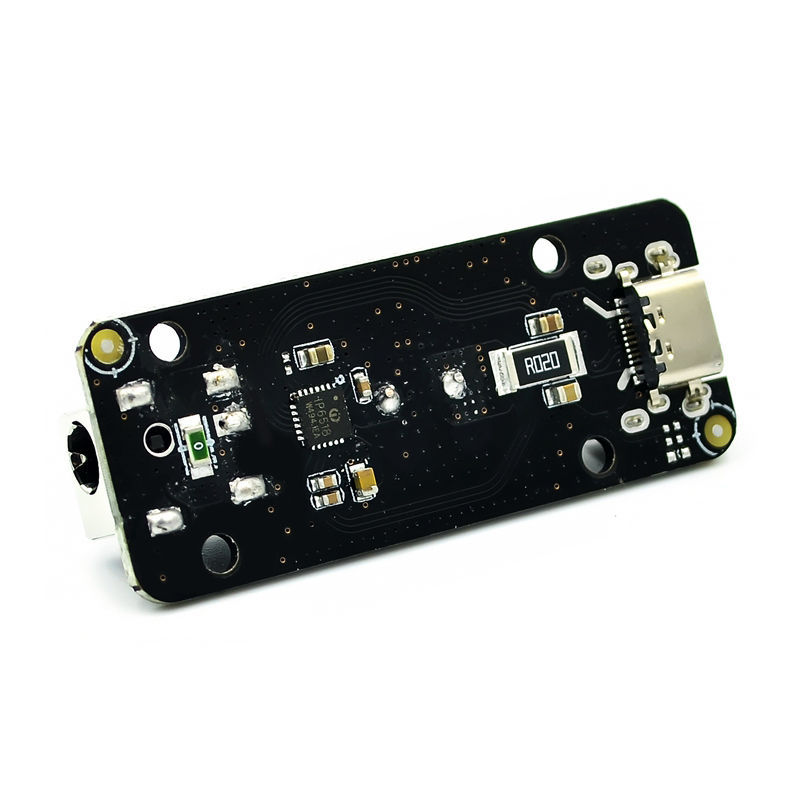

IP6518 BC1.2PD QC3.0 Full Protocol Fast Filling Board Module

Input voltage range: 10.5V- 32 V
Output voltage range: 3C - 20 V
Automatic setting according to quick charge protocol (input should be higher than output 2 V)
Output power: 45W
Output current:
3V---3.6A 5V----3.4A
7V----3A 9V----3A 12V----3A
15V----2.3A 20V----2.3A
PD output voltage:5V,7V,9V,12V,15V,20V.
Line complement function:125mv/A.
Conversion efficiency:97%.

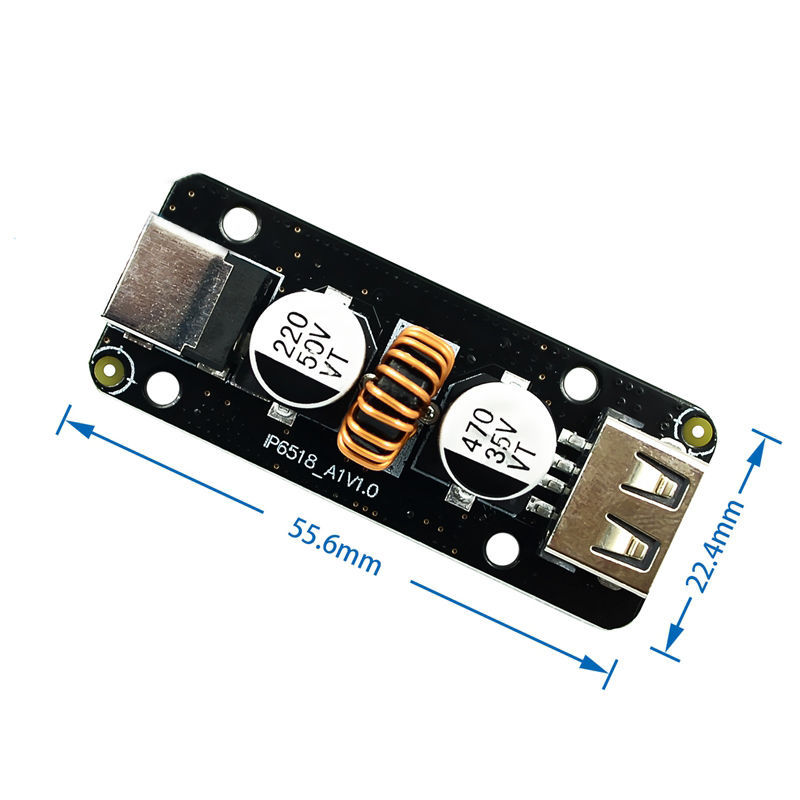

Size:50*20*17mm
