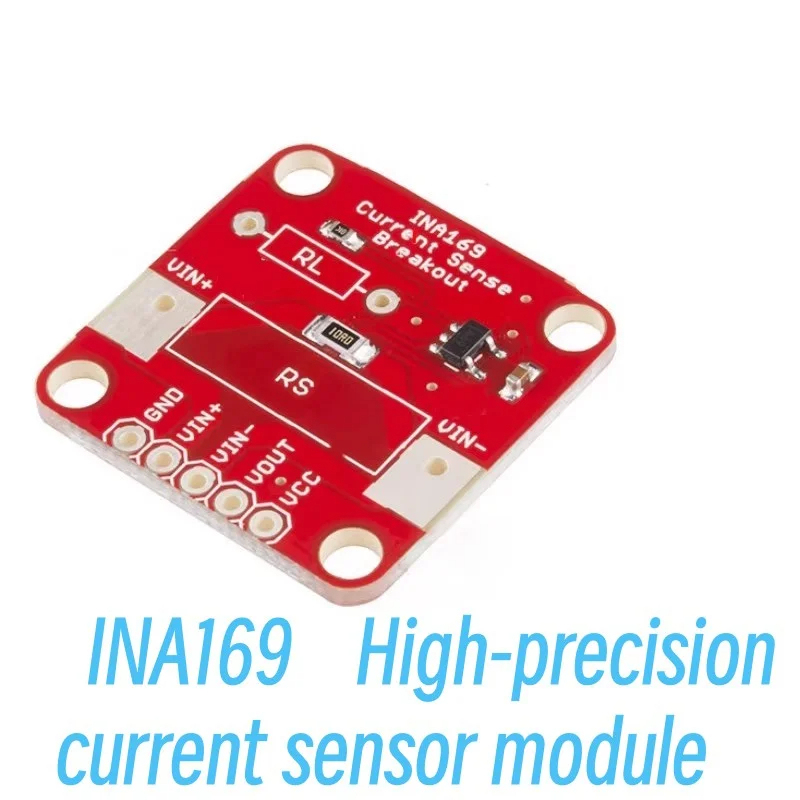

INA169 high-precision analog current sensor module current converter

INA169 Current Sensor Board High Precision Analog to Current Sensing Breakout Converter Module Current Monitor 3.5mA-35mA

Features:
1.Complete unipolar, high-side current measurement circuit
Independent supply and input common mode voltages.
2.Low quiescent (sleep) current (60µA typical).
3.The INA169 is a "high-side current monitor," which means that you place a resistor (a "shunt resistor") on the positive power rail and the INA169 measures the voltage drop across that resistor.

Descriptions:
The INA169 outputs a small current based on the measured voltage drop. If you place a resistor from the output of the INA169 to ground, you can measure the voltage at the output.

Specification:
Model: INA169
Material: Electrical Components
Color: red

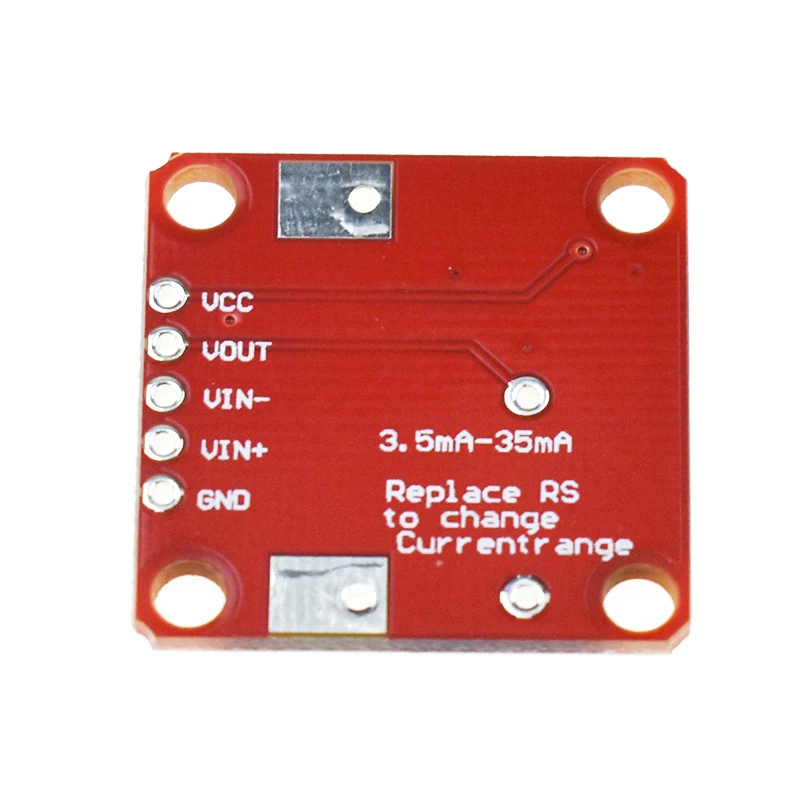

Range from: 3.5mA - 35mA
Size: 2.5*2.5CM
Package size: 6*9CM

Package Included:
1 x INA169 Current Sensor Module
