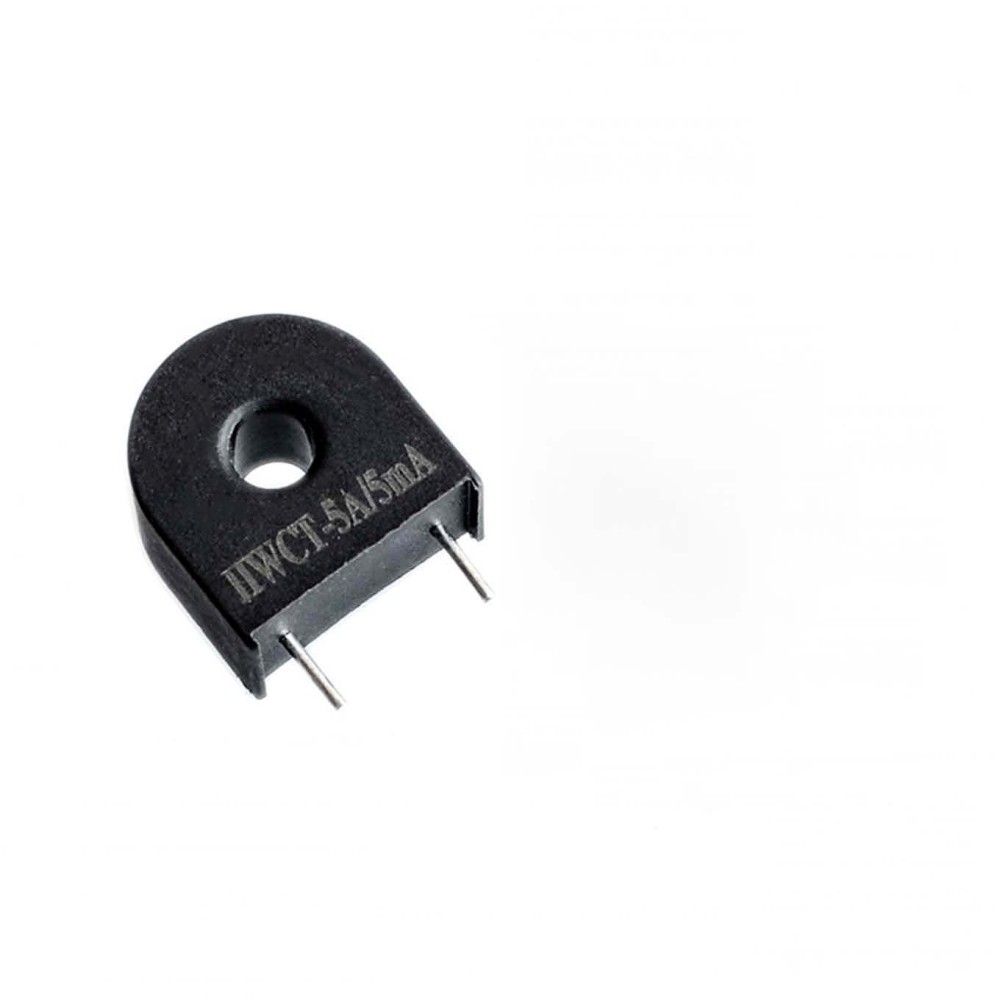

HWCT-5A5mA HMCT 103C Sensor Current Transformer

1.Main dimensions: bore / length / height / width (5 / 18 / 19 / 10)
2.One time input range: 0 ` 7.5A
3.Secondary output range: 0 ` 7.5ma
4.Load resistance: ≤ 100 Ω
5.Linear range: 5% - 120%
6.Withstand voltage: 2500V / min
7.Working temperature: - 25℃ - + 75℃
8.Storage temperature: - 40℃ - + 80℃
9.Main specifications: input 5a, output 5mA, load ≤ 100 Ω, ratio difference ≤ 0.1%, phase difference < 20 ′
10.Linear range: 5% - 120%
