Features and Benefits:

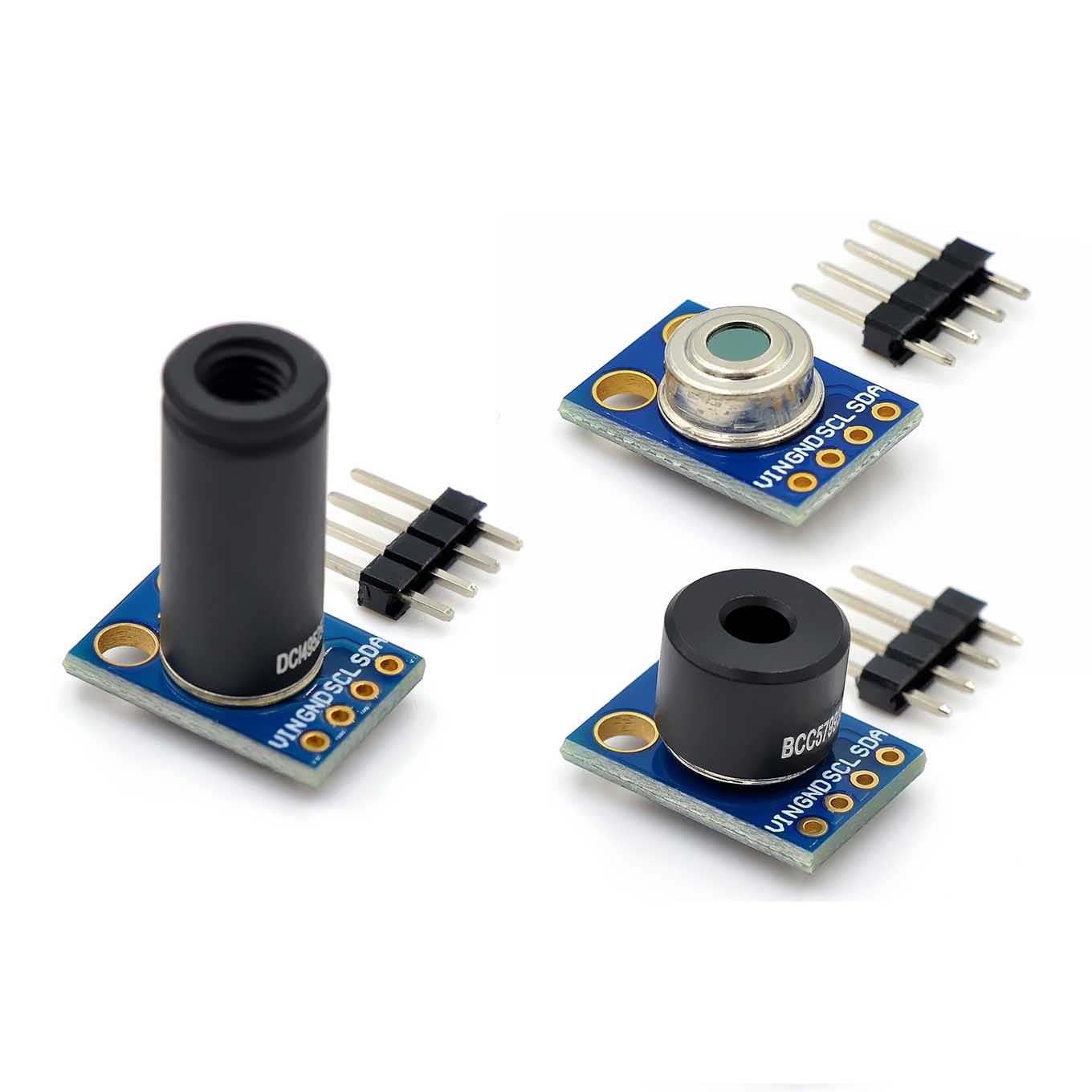

Mounted on a breakout board with two types of pins
10k Pull up resistors for the I2C interface with optional solder jumpers Easy to integrate
Factory calibrated in wide temperature range:
-40 ... + 125°C for sensor temperature and
-70 ... + 380°C for object temperature.
High accuracy of 0.5°C over wide temperaturerange (0 ... + 50°C for both Ta and To) High (medical) accuracy calibration
Measurement resolution of 0.02°C
Single and dual zone versions
SMBus compatible digital interface
Customizable PWM output for continuousreading
Simple adaptation for 8 ... 16V applications
Sleep mode for reduced power consumption
Different package options for applications andmeasurements versatility
Automotive grade
