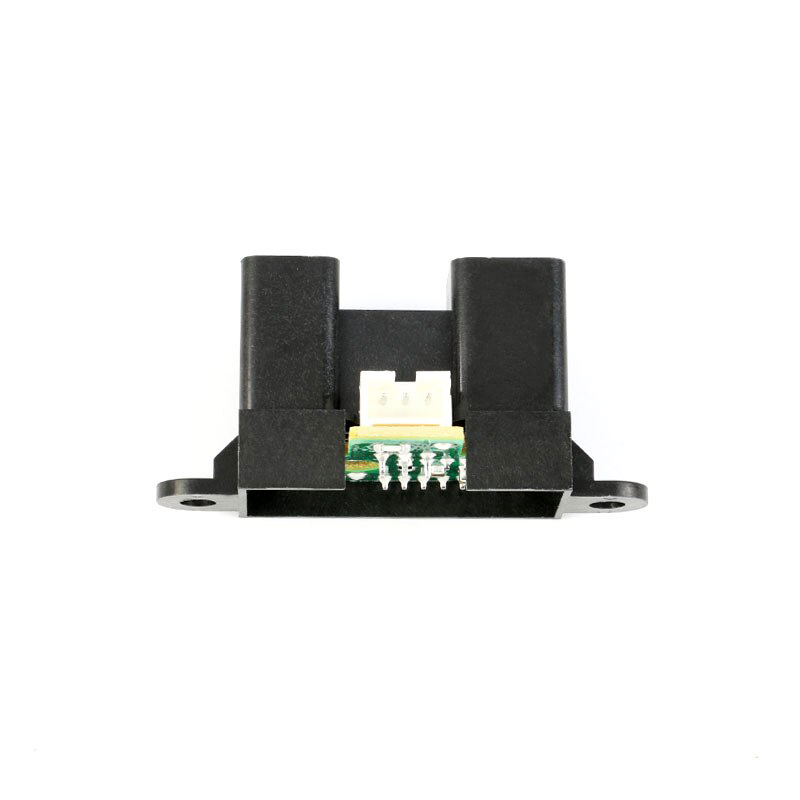

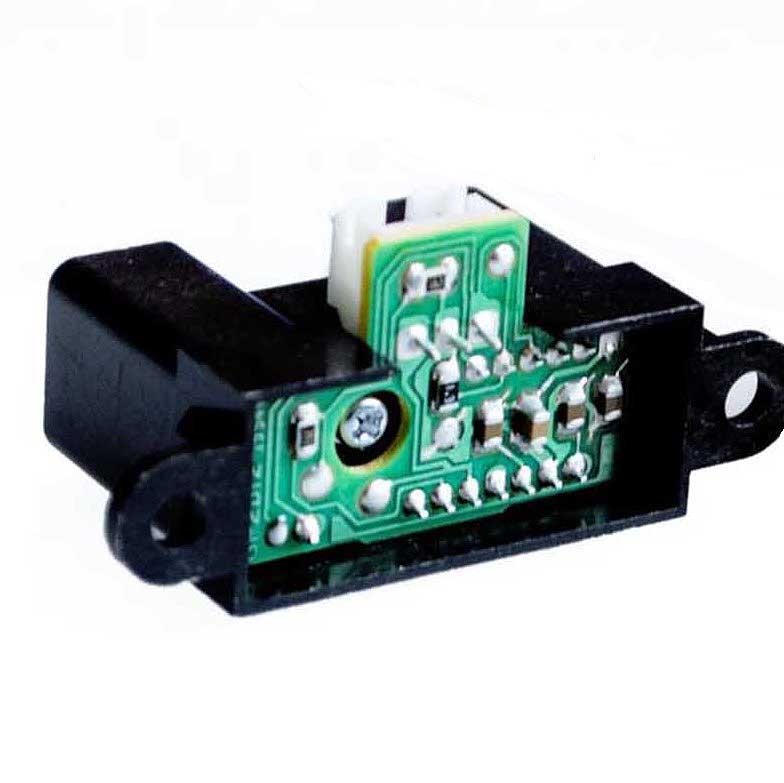

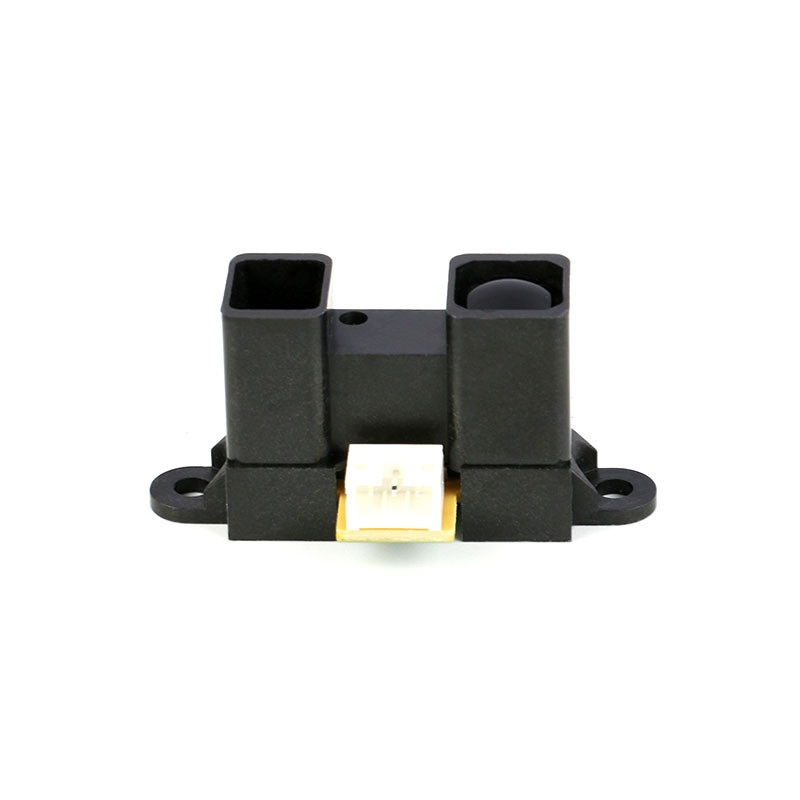

GP2Y0A02YK0F 2Y0A02 20-150CM Infrared Distance Sensor

SKU: 5482535
$0.00 $3.71
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
0 in stock
Add to Favorites
  • GP2Y0A02YK0F 2Y0A02 20-150CM Infrared Distance Sensor
  • GP2Y0A02YK0F 2Y0A02 20-150CM Infrared Distance Sensor
  • GP2Y0A02YK0F 2Y0A02 20-150CM Infrared Distance Sensor
  • GP2Y0A02YK0F 2Y0A02 20-150CM Infrared Distance Sensor
  • GP2Y0A02YK0F 2Y0A02 20-150CM Infrared Distance Sensor
  • GP2Y0A02YK0F 2Y0A02 20-150CM Infrared Distance Sensor
  • GP2Y0A02YK0F 2Y0A02 20-150CM Infrared Distance Sensor
  • GP2Y0A02YK0F 2Y0A02 20-150CM Infrared Distance Sensor
1/1
  • GP2Y0A02YK0F 2Y0A02 20-150CM Infrared Distance Sensor
  • GP2Y0A02YK0F 2Y0A02 20-150CM Infrared Distance Sensor
  • GP2Y0A02YK0F 2Y0A02 20-150CM Infrared Distance Sensor
  • GP2Y0A02YK0F 2Y0A02 20-150CM Infrared Distance Sensor
  • Description

Technical parameters:

1. Distance measurement range: 20 to 150 cm
2. Signal output type: voltage analog signal
3. Package size: 29.5 × thirteen × 21.6 mm
4. Power consumption: 33 Ma nominal value
5. Power supply voltage: 4.5 to 5.5 V
6. The precision is related to the number of ad bits collected and the conversion calculation formula. 10ad can generally reach 0.1cm
Gp2y0a02yk0f is a distance measurement sensor module of sharp. It is composed of PSD (position sensitive detector), red (infrared emitting diode) and signal processing circuit. Because of the use of triangulation method, the material of the measured object, ambient temperature and measurement time will not affect the measurement accuracy of the sensor. The output voltage value of the sensor corresponds to the detection distance. The distance of the detected object can be obtained by measuring the voltage value, so this sensor can be used for distance measurement, obstacle avoidance and other occasions.
