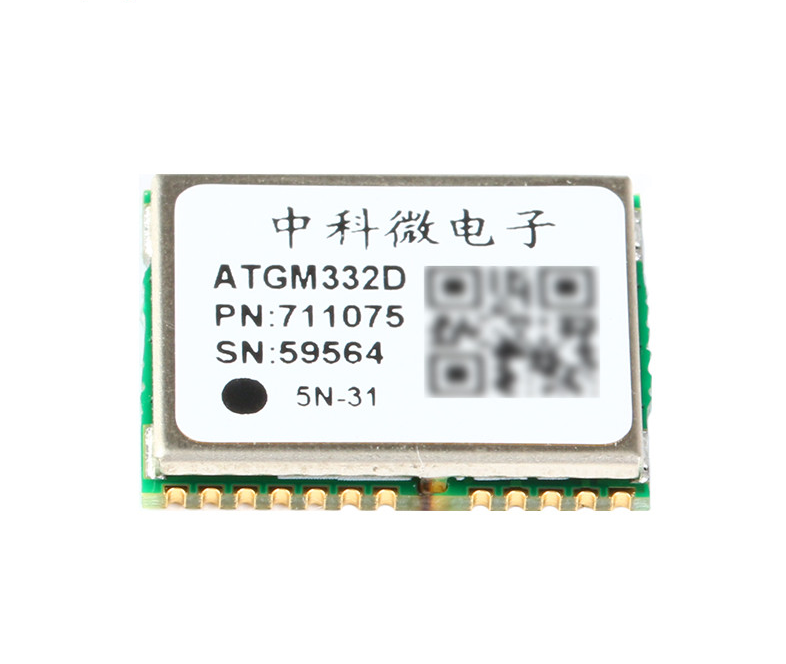

ATGM332D Satellite Positioning Timing Module

Support BDS / GPS satellite navigation system
Support AGNSS
Cold start capture sensitivity: -148dBm
Tracking sensitivity: -162dBm
Positioning accuracy: 5m
First time: 32s
Support 2.7-3.6V power supply
Continuous operation current below 25mA (@ 3.3V)
Built-in antenna detection and antenna short circuit protection
Supports active and passive antennas
Direct serial output data
Supports 1PPS seconds pulse output
