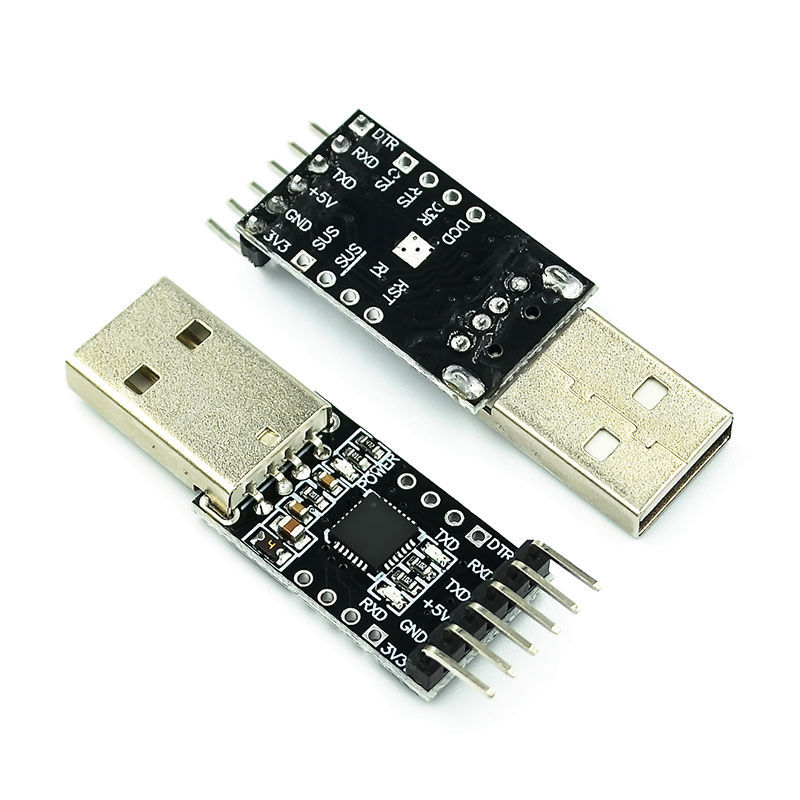

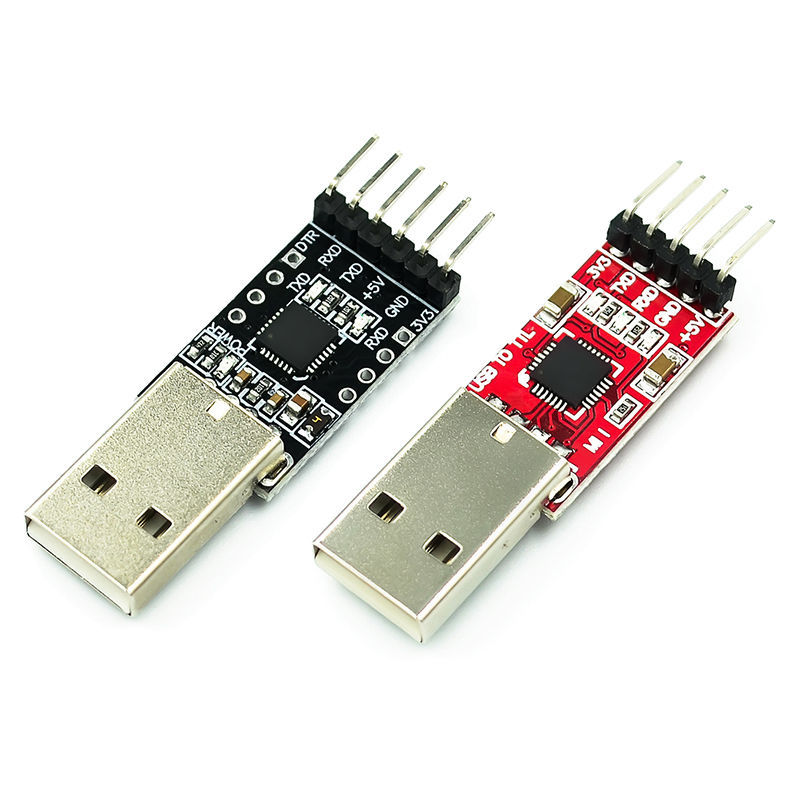

CP2102 USB 2.0 To TTL UART Connector Module

SKU: 5482530
$0.00 $1.39
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Type:
    Black
    Black
    Red
    Red
Quantity:
-
+
0 in stock
Add to Favorites
  • CP2102 USB 2.0 To TTL UART Connector Module
  • CP2102 USB 2.0 To TTL UART Connector Module
  • CP2102 USB 2.0 To TTL UART Connector Module
  • CP2102 USB 2.0 To TTL UART Connector Module
1/1
  • CP2102 USB 2.0 To TTL UART Connector Module
  • CP2102 USB 2.0 To TTL UART Connector Module
  • Description

Product Detail:

1. The main chip is CP2102, which generates virtual serial port after installing driver
2. USB power, lead out interface includes 3.3V (< 40mA), 5V, GND, TX, Rx, signal pin level is 3.3V, positive logic
3. The on-board status indicator and transceiver indicator will be on after the driver is correctly installed. The transceiver indicator will flash when communicating. The higher the baud rate, the lower the brightness
4. Supports baud rate from 300BPS to 1Mbps
5. Communication format support: 1) 5,6,7,8 data bits; 2) 1,1.5,2 stop bits are supported; 3) Odd, even, mark, space, none check
6. Support operating system: Windows Vista / XP / Server 2003 / 200, MAC OS-X / OS-9, Linux
7. The USB head is male and can be directly connected to the USB port of the computer
8. SMT technology is used to produce SMT components with stable quality
