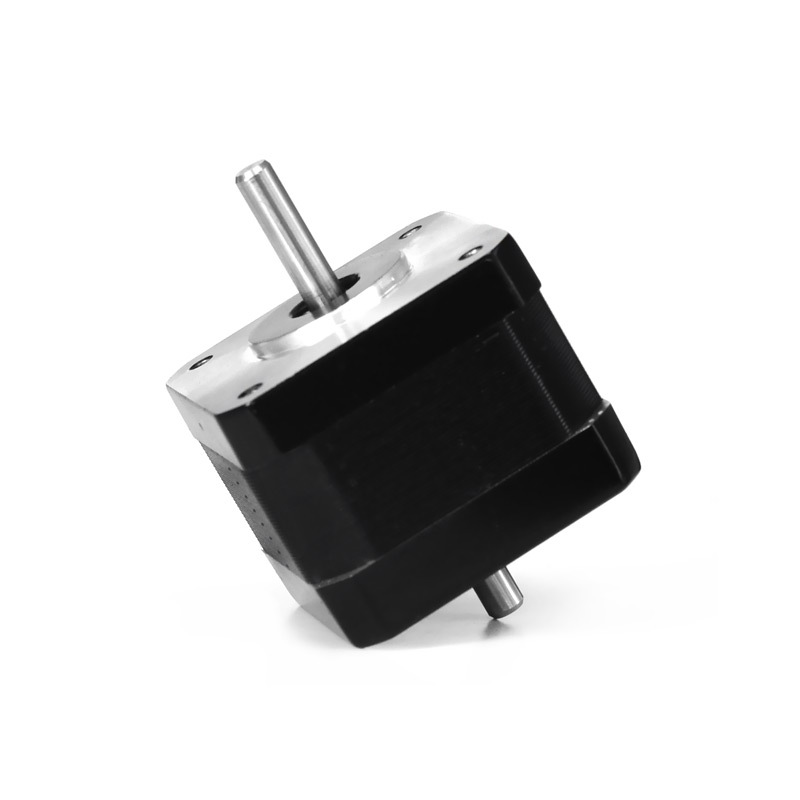

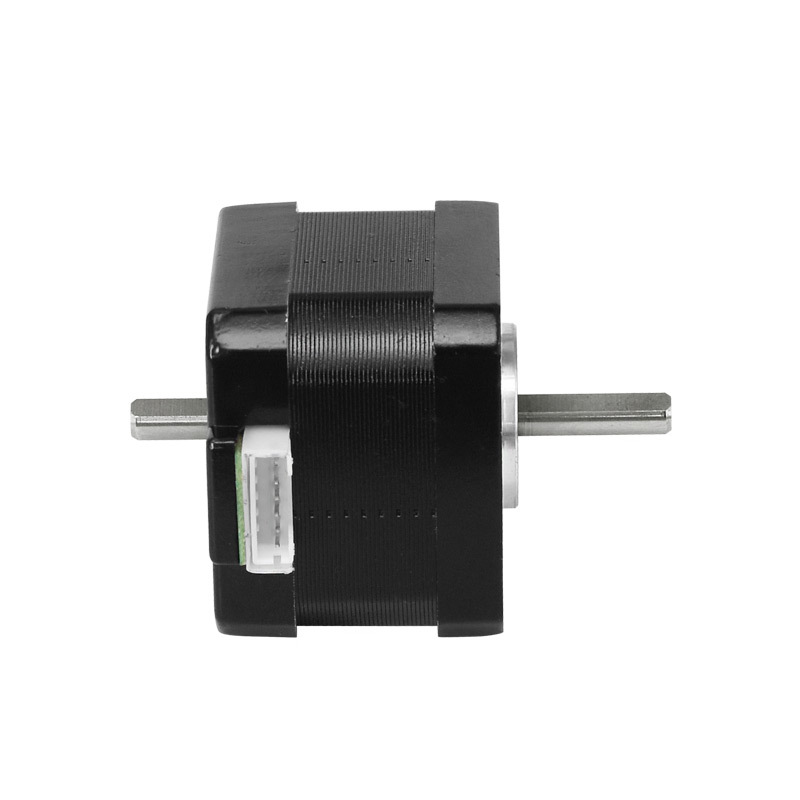

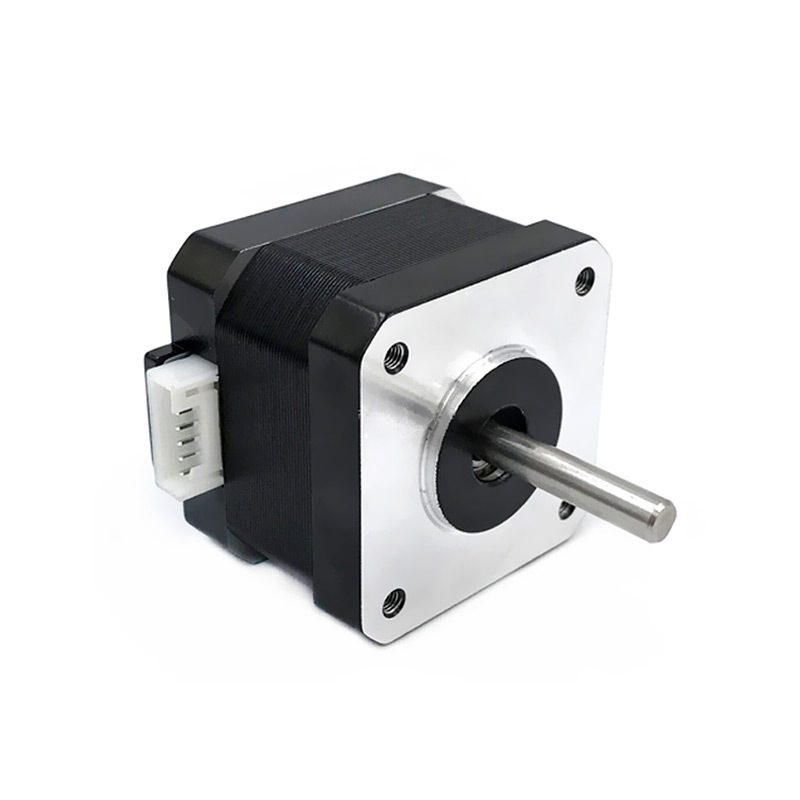

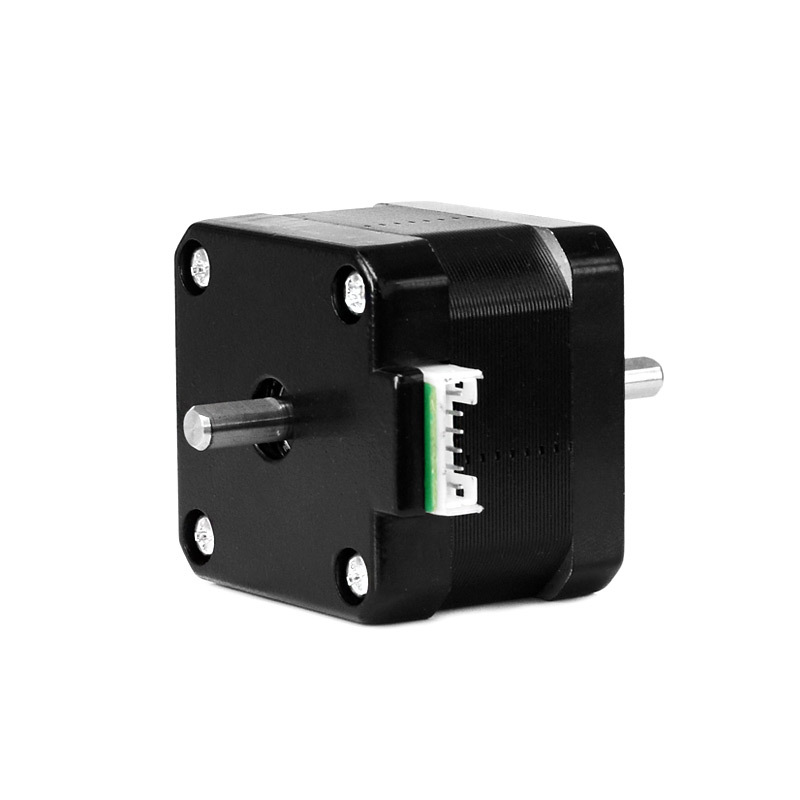

42BYGH34-1304B 1.8 Degree 42 Stepper Motor Dual Shaft

Model: 42BYGH34-1304B
Body height: 34mm
Shaft diameter: Φ5mm, D-axis
Shaft high: 23mm
Rront axle length : 20mm
Socket type (rear): 10mm
Outgoing mode: Two-phase four outlets (Black A + Green A / Red B + Blue B - )
Scope: Widely used for 3D printers, monitor equipment, medical/textile/packaging machinery, stage lighting, ect.

Step Angle :1.8°
Rated Current/ Phase： 1.33 A
Resistance /Phase:2.1Ω
Inductance/Phase：2.5 mH
Holding Torque：0.3N.m
Rotor Inertia：35 g.c㎡
