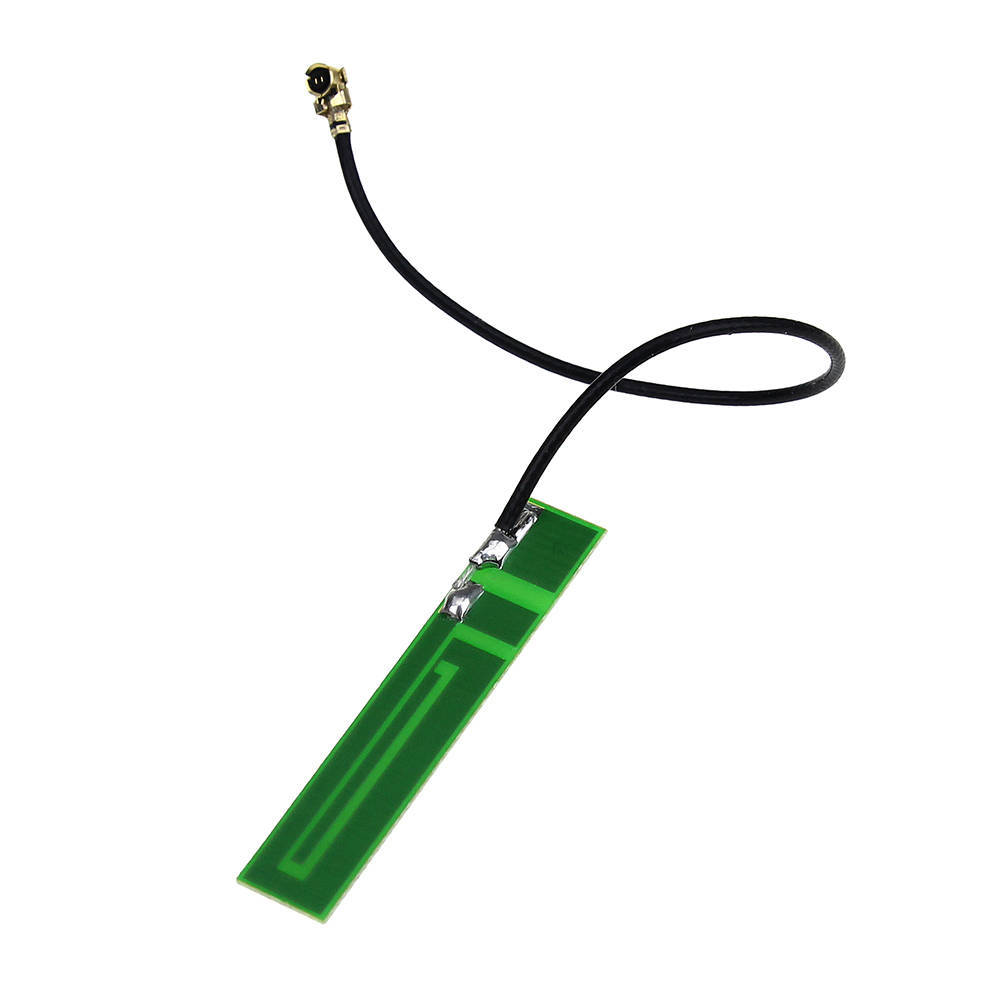

3dBi GSM 3G Circuit Board Antenna IPEX Connector

SKU:
$0.00 $0.15
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Type:
    With Double Side Tape
    Without Double Side Tape
Quantity:
-
+
0 in stock
Add to Favorites
  • 3dBi GSM 3G Circuit Board Antenna IPEX Connector
  • 3dBi GSM 3G Circuit Board Antenna IPEX Connector
  • 3dBi GSM 3G Circuit Board Antenna IPEX Connector
  • 3dBi GSM 3G Circuit Board Antenna IPEX Connector
1/1
  • 3dBi GSM 3G Circuit Board Antenna IPEX Connector
  • 3dBi GSM 3G Circuit Board Antenna IPEX Connector
  • Description

Product name: 2G 3G IPEX antenna

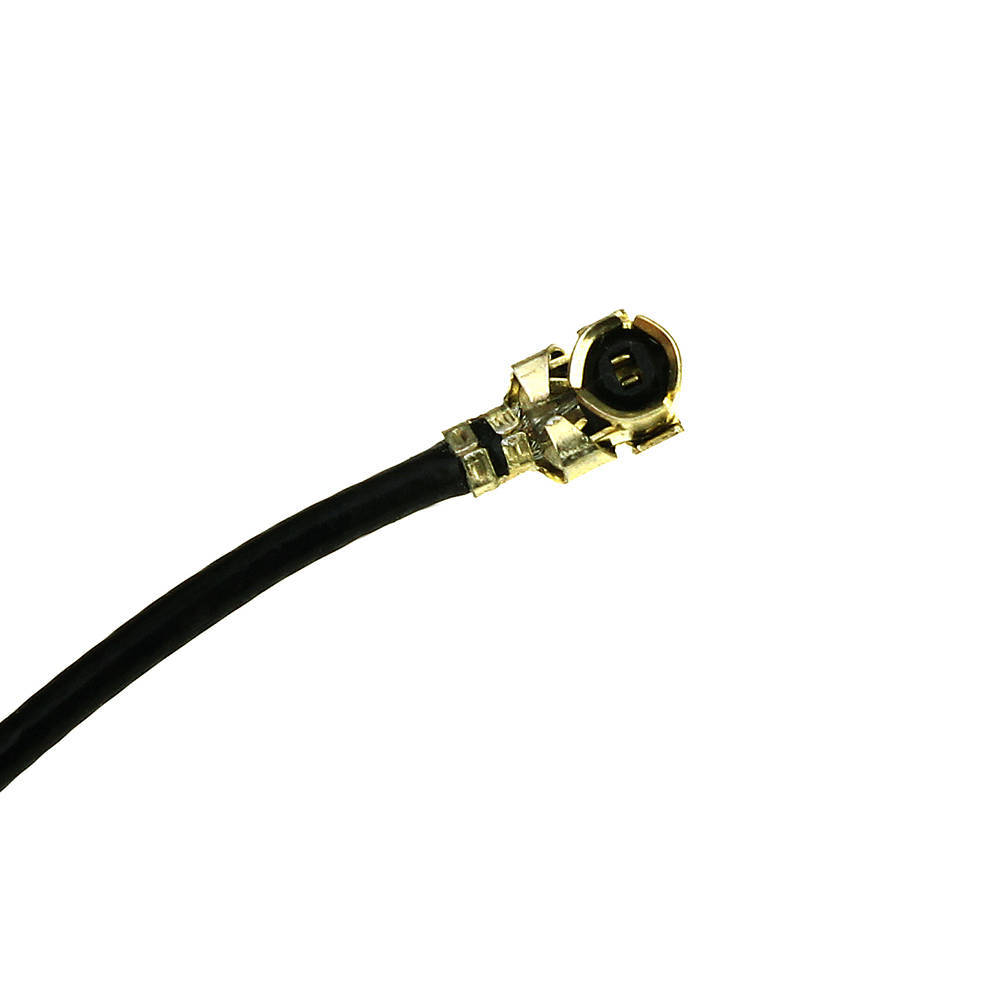

Connector type: ipx13
Standing wave ratio definition: S.W.R <= 1.8
Gain definition: 3dBi( *Typical*)
Frequency band definition: 800~960 1710~2170MHz
Impedance definition: 50 ohm

1. Electrical Characteristics
S.W.R. <= 3.0 @ 880~960 MHz &
<=2.5 @ 1710~1800 MHz
Impedance 50 Ohm

2. Material
Material of Radiator PCB
Connector Type I-Pex or I-Pex compatible

3. Environmental
Operation Temperature-30 °C ~ + 85 °C
Storage Temperature-30 °C ~ + 85 °C
