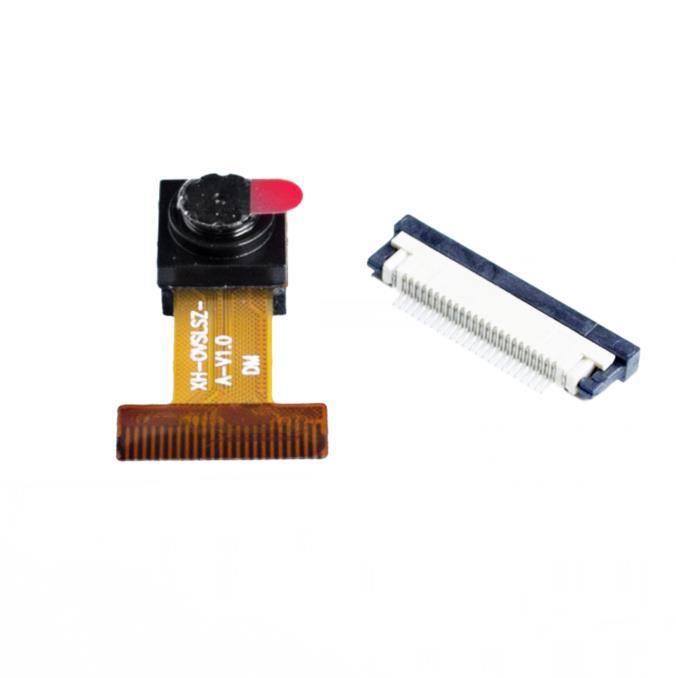

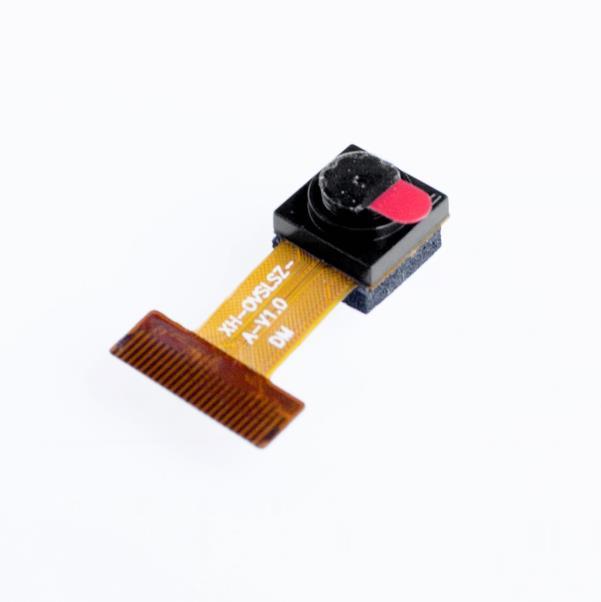

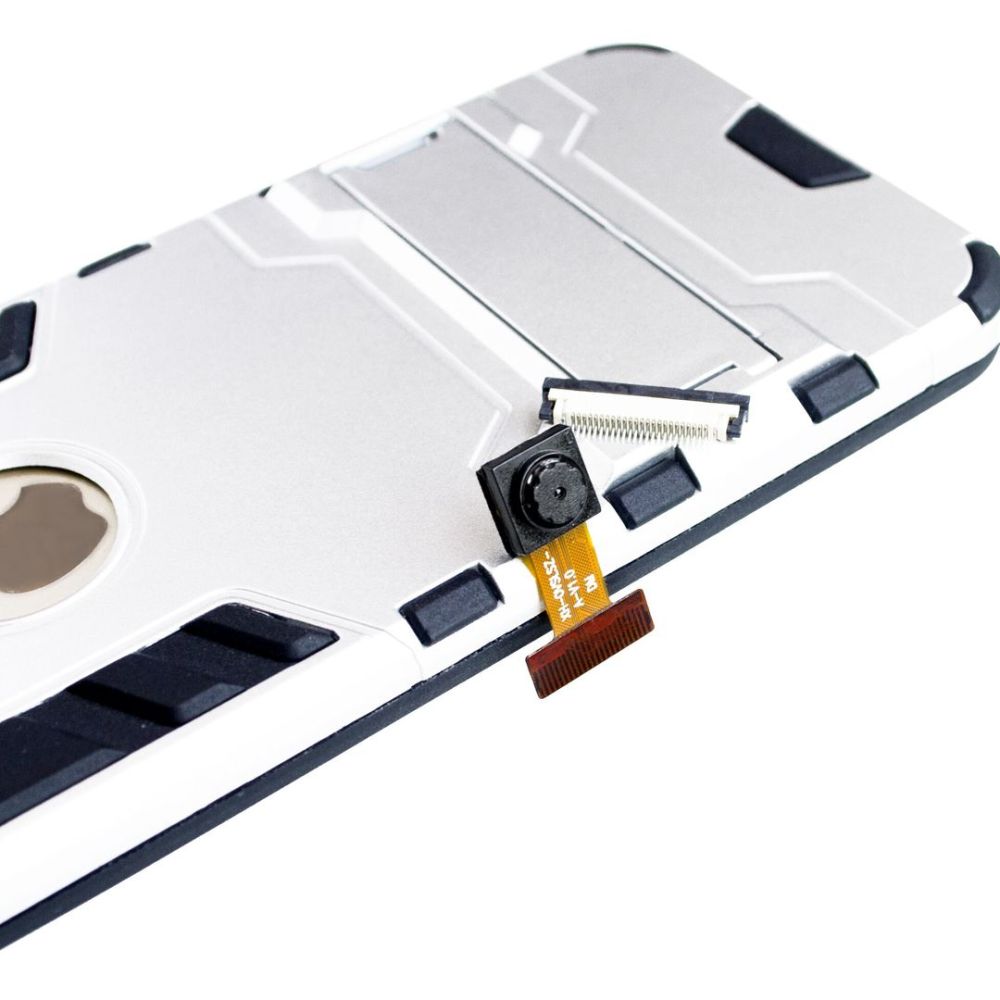

30W Pixel OV7670 Camera Module With Connector

Photosensitive array 640x480
I0 voltage 2.5V to 3.0V (internal LDO supplies 1.8V to nuclear power)
Power consumption: 60MW / 15fps VGA
Dormancy < 20 μ a
Temperature operation - 30°C to 70°C
Stable operation 0°C to 50°C
Output format (8 bits)? YUV / ycbcr4:2:2 rgb565 / 555 / 444
GRB4:2:2 Raw RGB Data
Optical dimension 1 / 6“
Field of view 67 degrees
Maximum rate of 30 FPS VGA
Sensitivity 1.3V / (Lux sec)
Signal to noise ratio 46 DB
Dynamic range 52 DB
Browse mode line by line
Electronic exposure 1 line to 510 lines
Pixel area 3.6 μ m x 3.6 μ M
Dark current 12 MV / s at 60°C
