Model: HX - 2S - JH20
Overcharging range: 4.25-4.35V plus or minus 0.05V
Size: 46.7* 23 * 3.15mm
Overvoltage range: 2.5-3.0V plus
Or minus 0.05V
Maximum working current: 10 a
Working temperature: - 40 - + 50°
Maximum instantaneous current: 20 a
Storage conditions: - 40 - + 80°
Static current: less than 10uA
Effective life: more than 50,000 hours
Resistance: less than 300 m Ω
Short circuit protection: to protect and restore must charge
Charging voltage: 8.4V - 9V

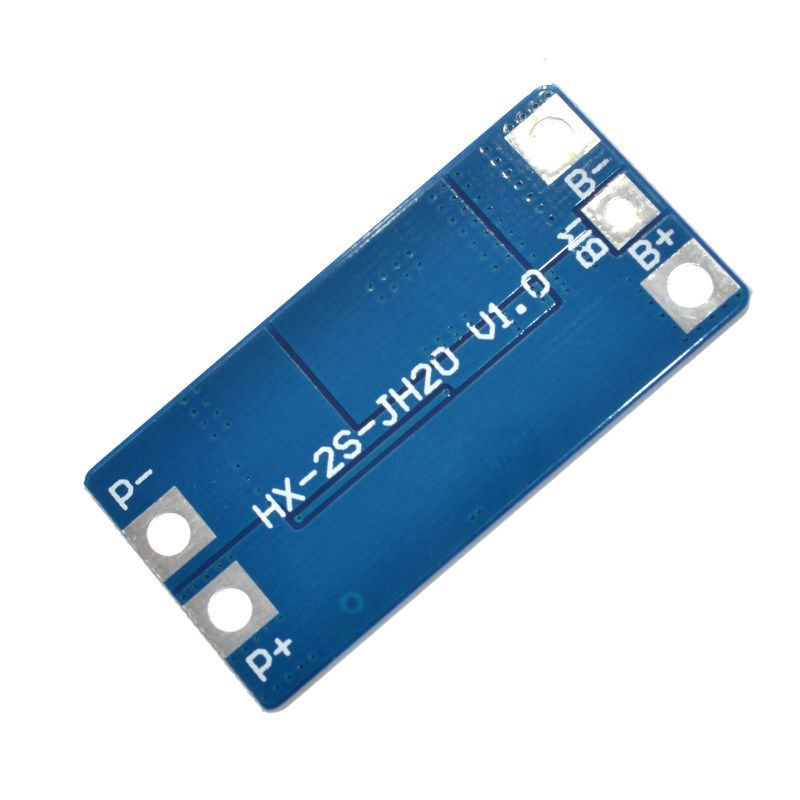

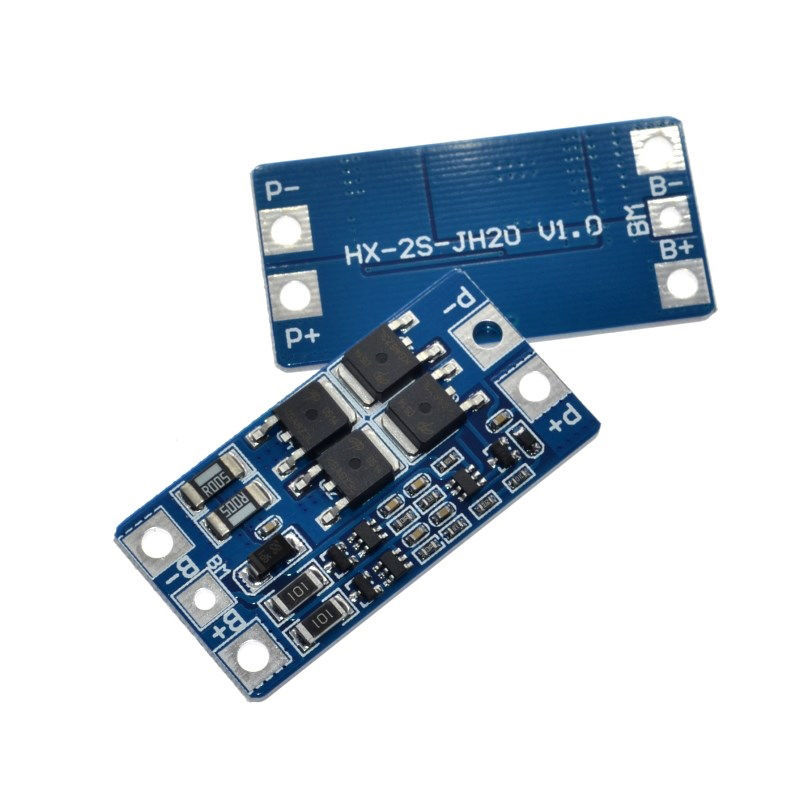

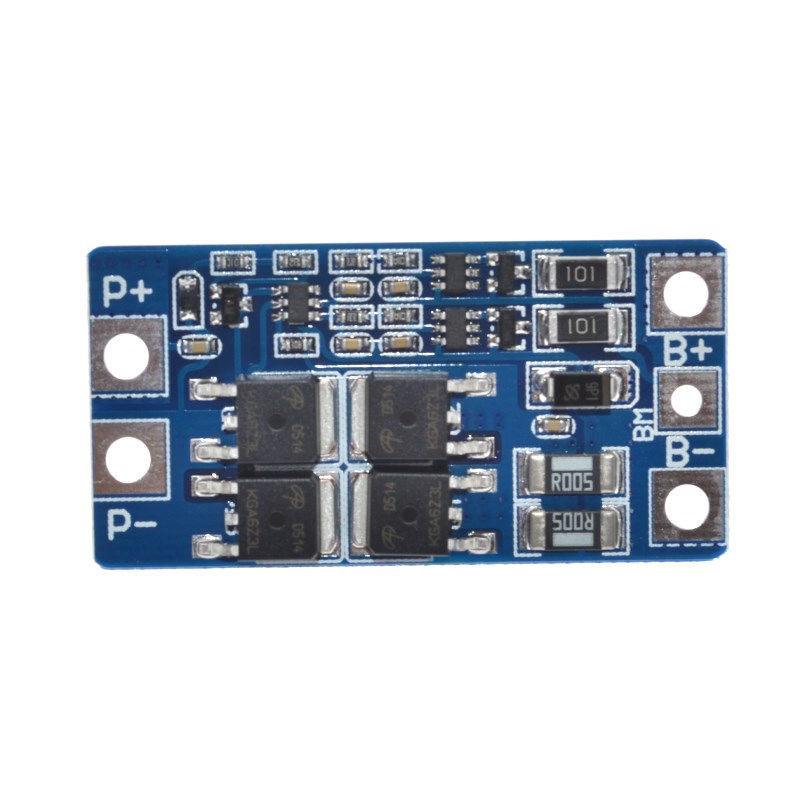

The protection board size and device detail;
The protective plate size is 46.7 * 23 * 3.15mmA
