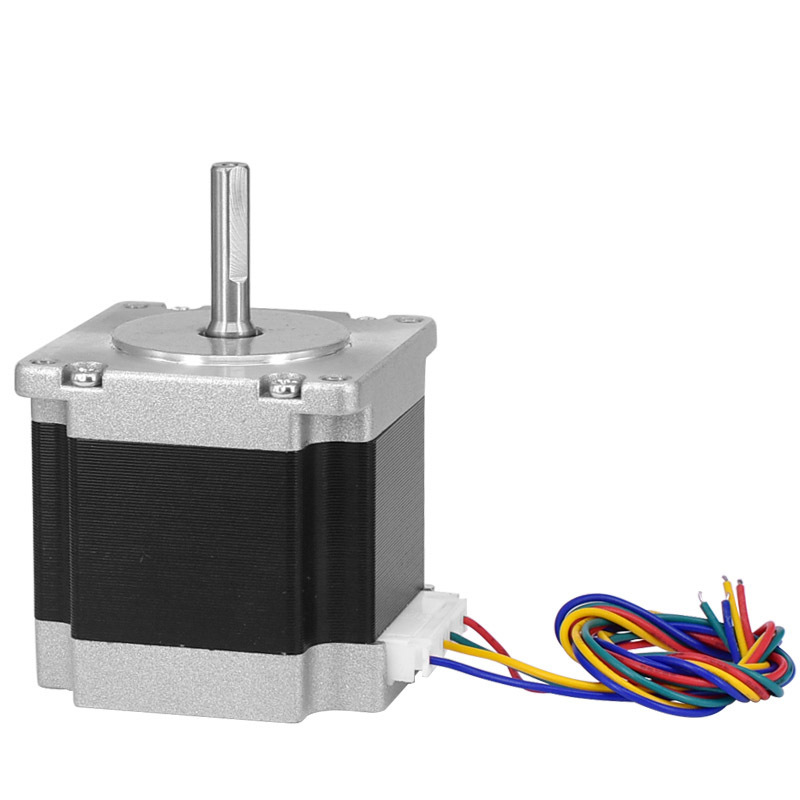

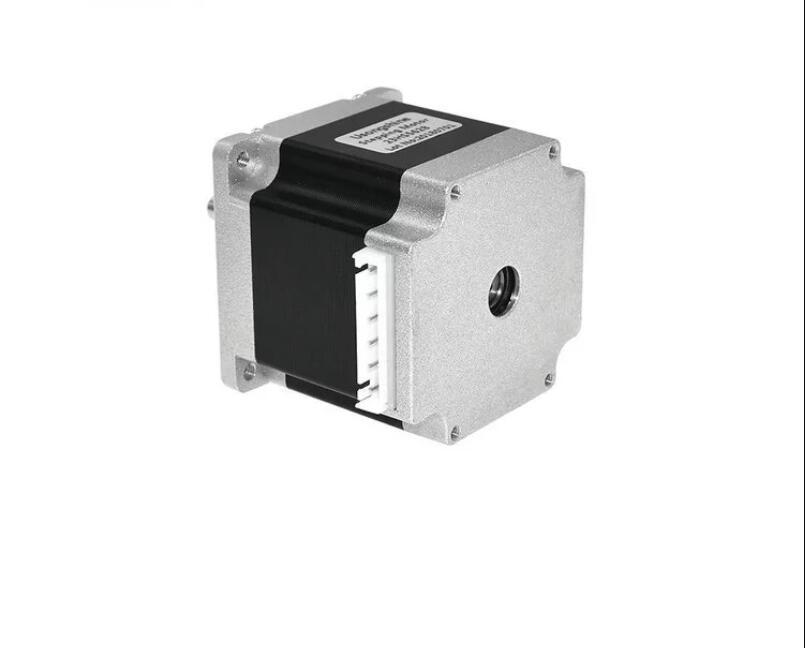

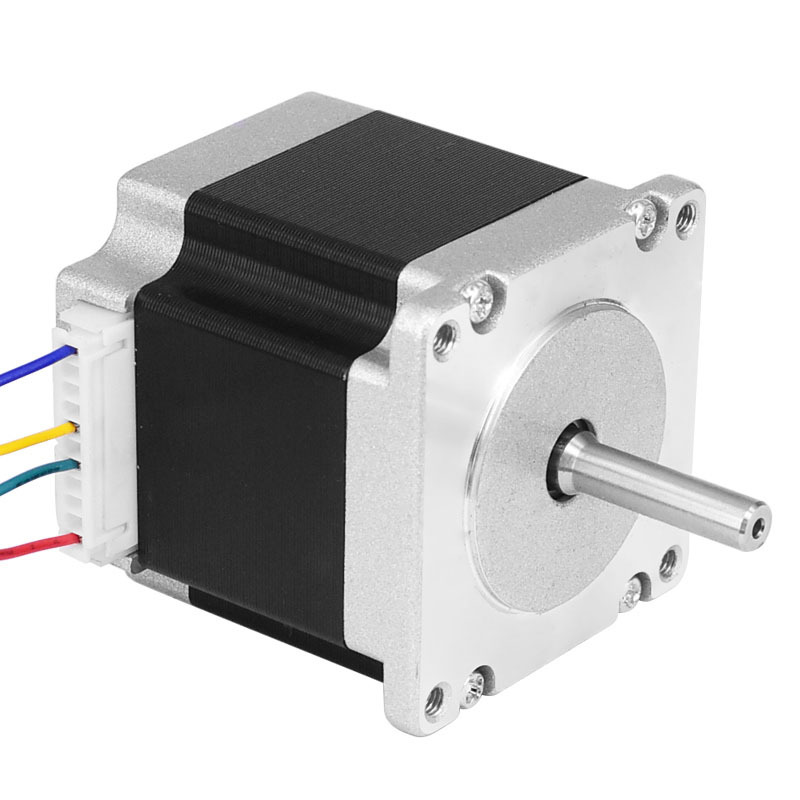

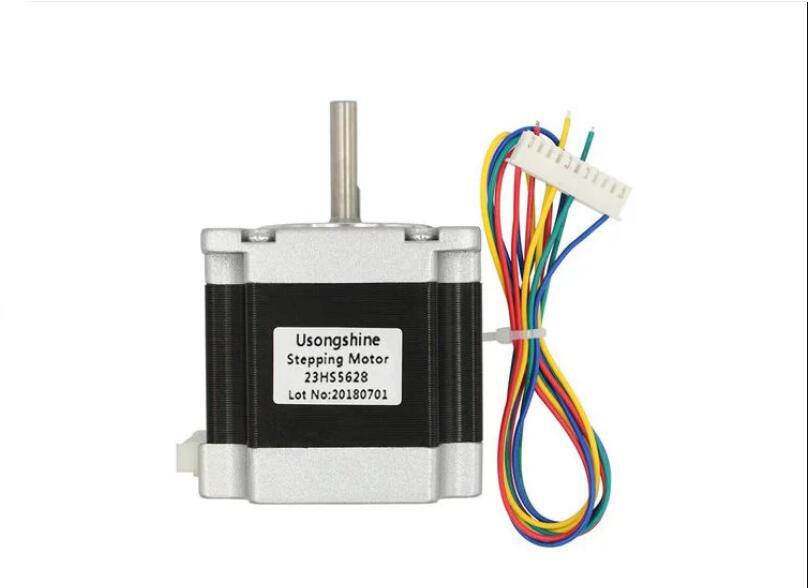

23HS5628 4-lead Nema 57 Stepper Motor

Model :23HS5628

Phase :2
Step Angle :1.8°
Motor Frame Size :57 x 56mm
Shaft :"D" shaft 22xФ6.35 or 8mm
Outlet way: "4" plug line
Motor leads :30cm Wire
Adapter drive :Two-phase step drive
Scope :3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery,
Packaging Machinery, Stage Lighting, Laser engraving, Automation
Equipment, Non-standard Equipment, Placement machine ect.
Electrical Specifications:
Rated Voltage:2.5V
Rated Current:2.8A
Resistance/Phase:0.9Ω
Inductance/Phase：2.5（mH）
Holding Torque:126 (N.cm)
Inertia Of Rotor:300(G. cm2)
Lead :4
General Specification:
Precision angle step:±5% (full step, no charge)
Resistance accuracy:±10%
Precision inductance:±20%
Temperature rise: 80deg Max (rated current, 2 phase on)
Ambient temperature:( – 20°)-(+ 50°)
Insulation resistance: 100MΩ Min, 500VDC
Insultion Force: 500VAC for a minute

Features:
1. Low noise.
2. Low heat.
3. Smooth operation.
4. Good acceleration performance.
