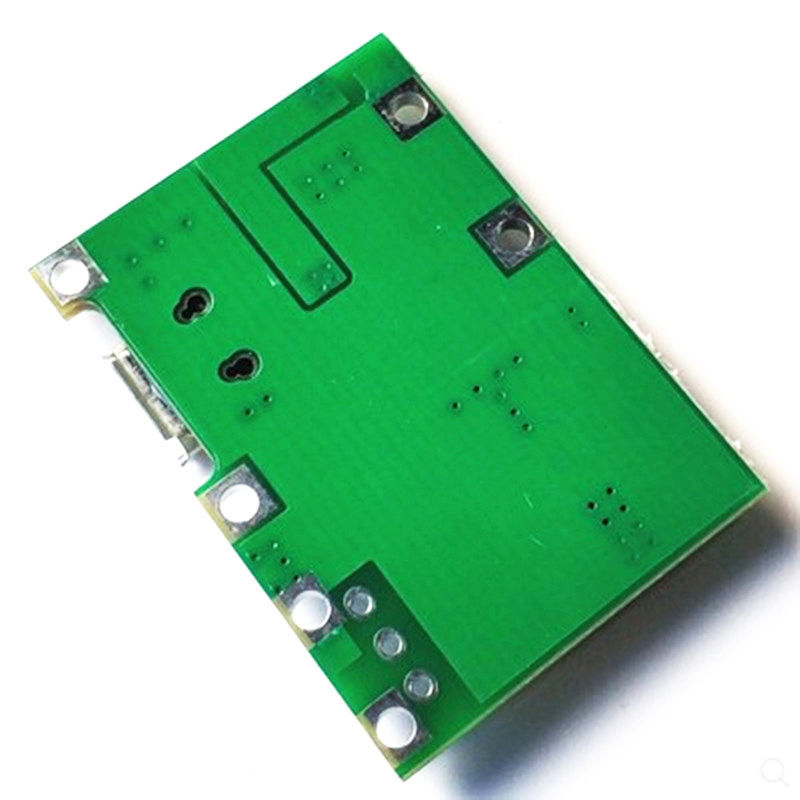

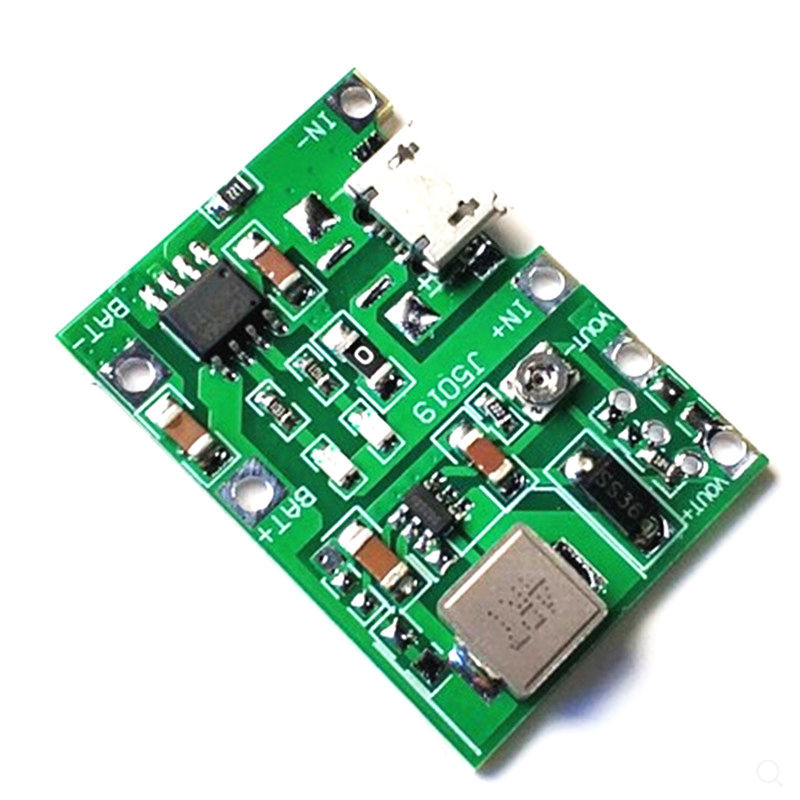

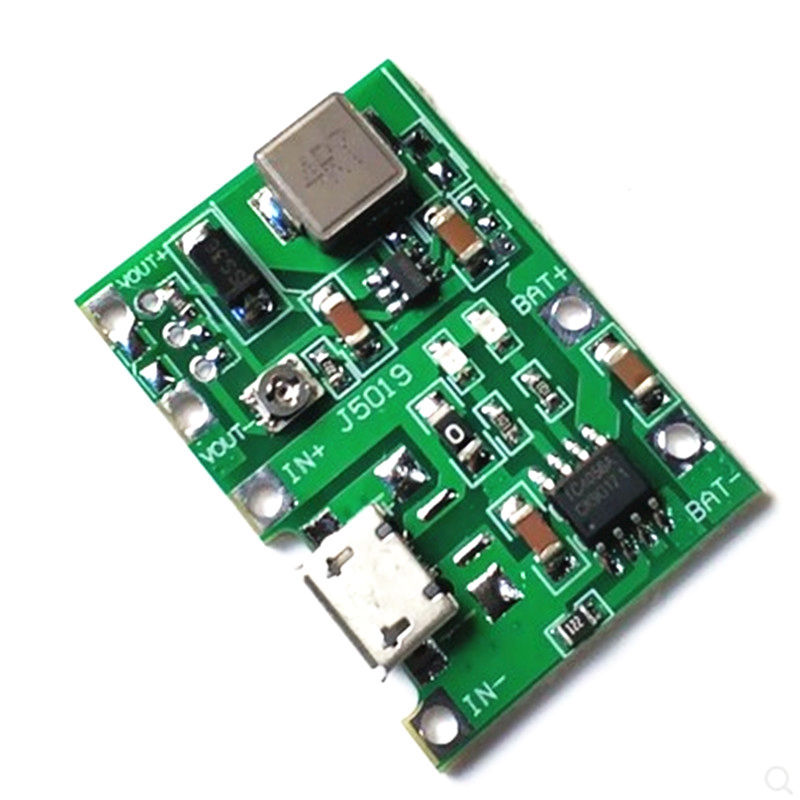

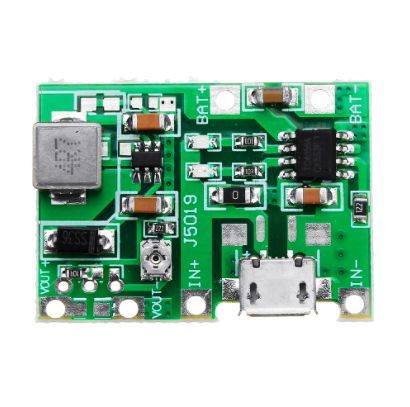

Name: 18650 Lithium Battery Charging Discharge Integrated Module
Brand: Electronics Supply Store, Arduino, Raspberry Pi, Components DIY I
SKU: 6773419
Price: 0.35 USD
Availability: InStock

SKU: 6773419

$0.35

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

Features:

Input voltage: 4.5-8V
Output voltage: continuous adjustable 4.3-27V (Counter clockwise to boost voltage)
Charging voltage: 4.2V
Charging current: up to 1A
Discharge current: the maximum 2A
Output reference maximum current: 5V 1.4A, 9V 0.8A, 12V 0.6A
Quiescent current: about 0.5 mA
Overshoot protection: Yes
Over discharge protection: None (also can be said yes, because 2V cut-off boost but does not block the output, output has 2V)
Deadline boost:: 2V, depending on whether added the additional protection board
Size: 3.3 x 2.3 x 0.9cm
