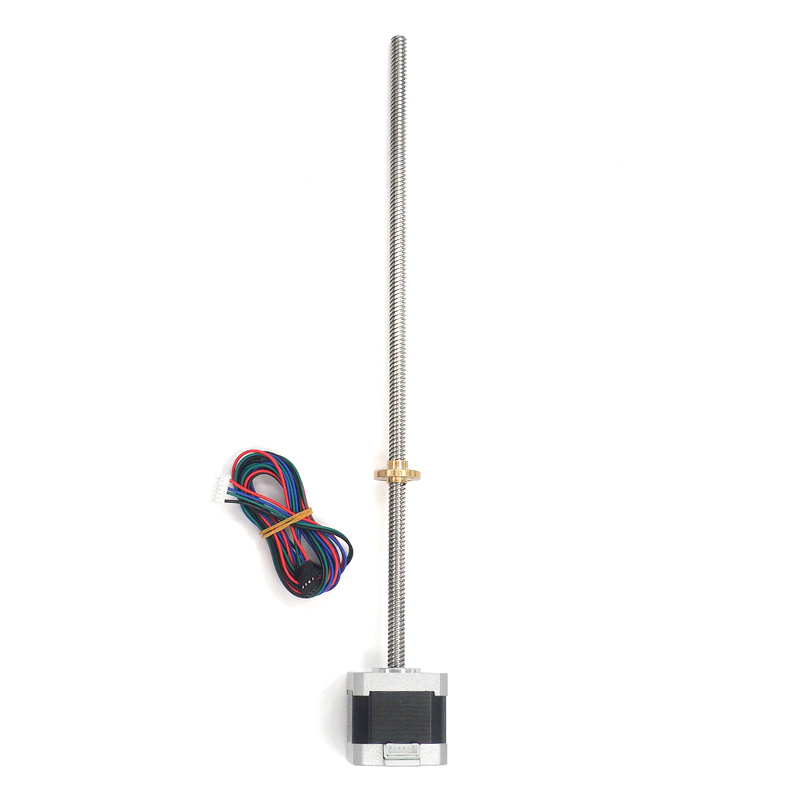

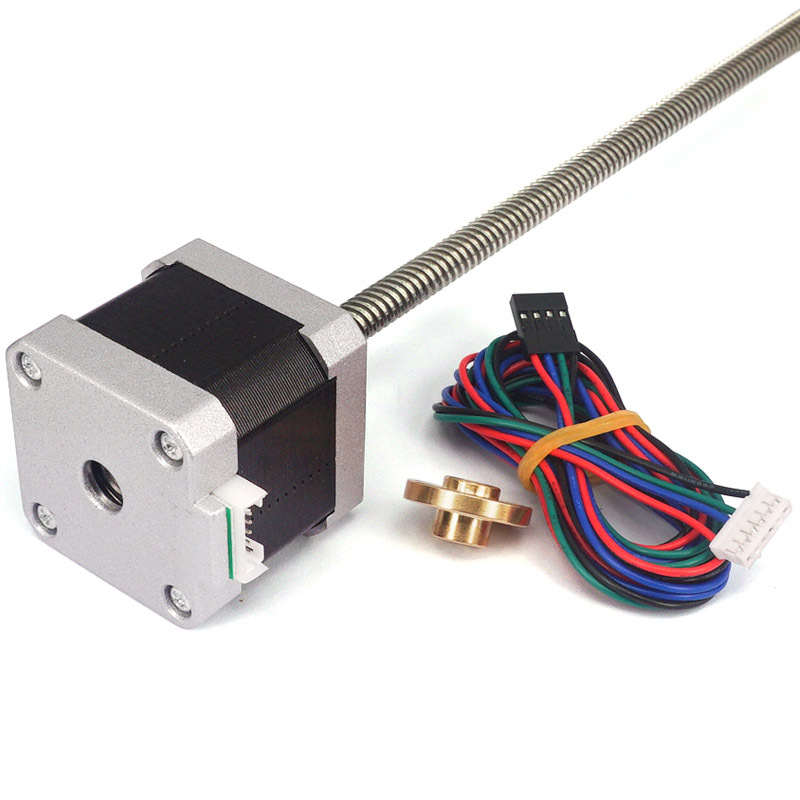

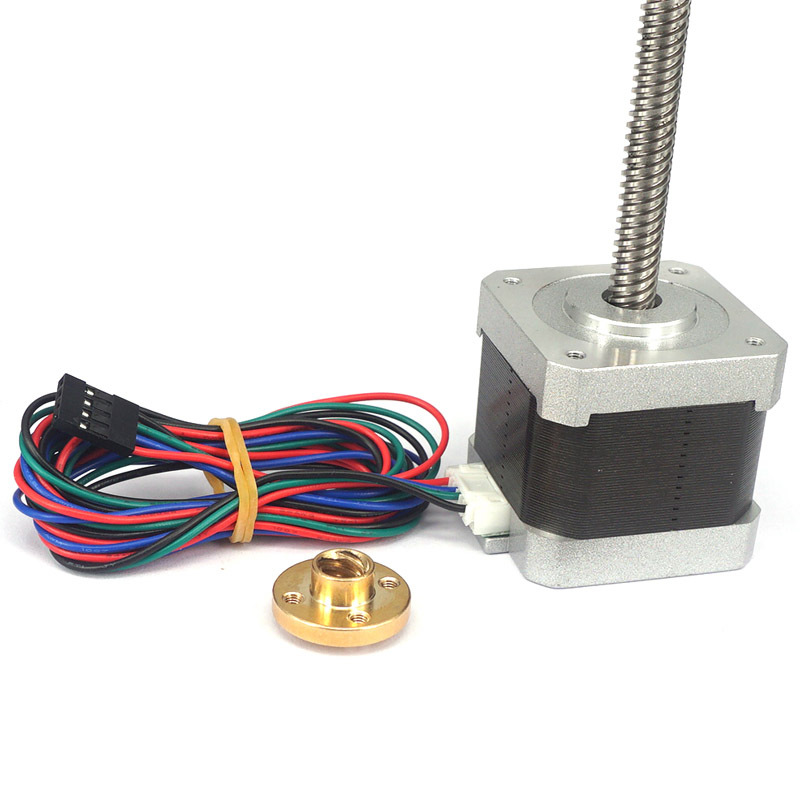

17HS4401L-300 T8 Screw Rod 42 Stepper Motor

Number of phases: 2

Rated voltage: dc3.6V
Phase resistance (20 "C): 2.4x (1 ± 15%) 2 / phase
Holding torque: ≥ 420mn. M
Steering (shaft extension): a-ab-b-clockwise
Maximum no-load operation frequency: ≥ 4000 PPS
Electrical strength: ac600v / 1mA / is
Moment of inertia: 122.3 g.cm
Step angle: 1.8 ° ± 0.09 °
Rated current: DC 1.5 A / phase Phase
inductance (1kHz): 3.7x (1 earth 20%) MH / phase
Positioning torque: 15 Mn. M
Maximum no-load starting frequency: ≥ 1400pps
Insulation resistance: ≥ 100 m2 (DC 500V)
Insulation class: Class B
