Rated voltage: 12V
Speed parameters:
Ordinary model: no load speed 130 RPM (plus or minus 5%), load 7 kg (per cm), 70 rpm, locked rotor torque 20 kg

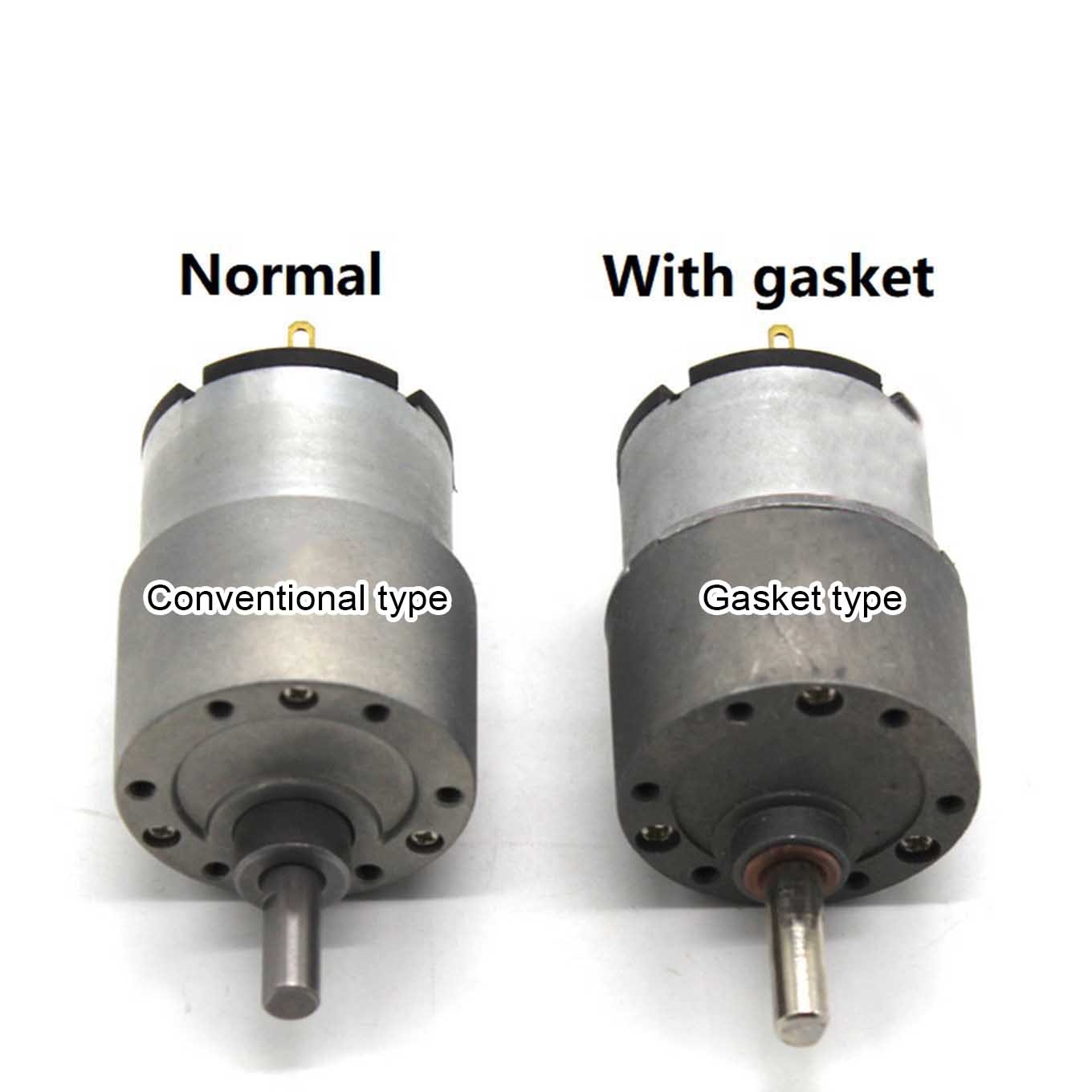

Gasket type: 6-7 rpm at 12V; 13 rpm at 24V
Torque: 2.5kg
Reduction ratio: 1:86
Motor diameter: 32.8mm
Motor length: 22mm
Fixed aperture: 3mm (M3 screw)
Reducer diameter: 37mm
Reducer length: ordinary type: 24mm; Gasket size: 25mm
Step height: Ordinary: 6mm; Gasket: 4.5mm
Shaft length: Ordinary: 15mm; Gasket size: 19mm
Motor shaft diameter: 6mm, D-type shaft (pin edge 0.65mm)
